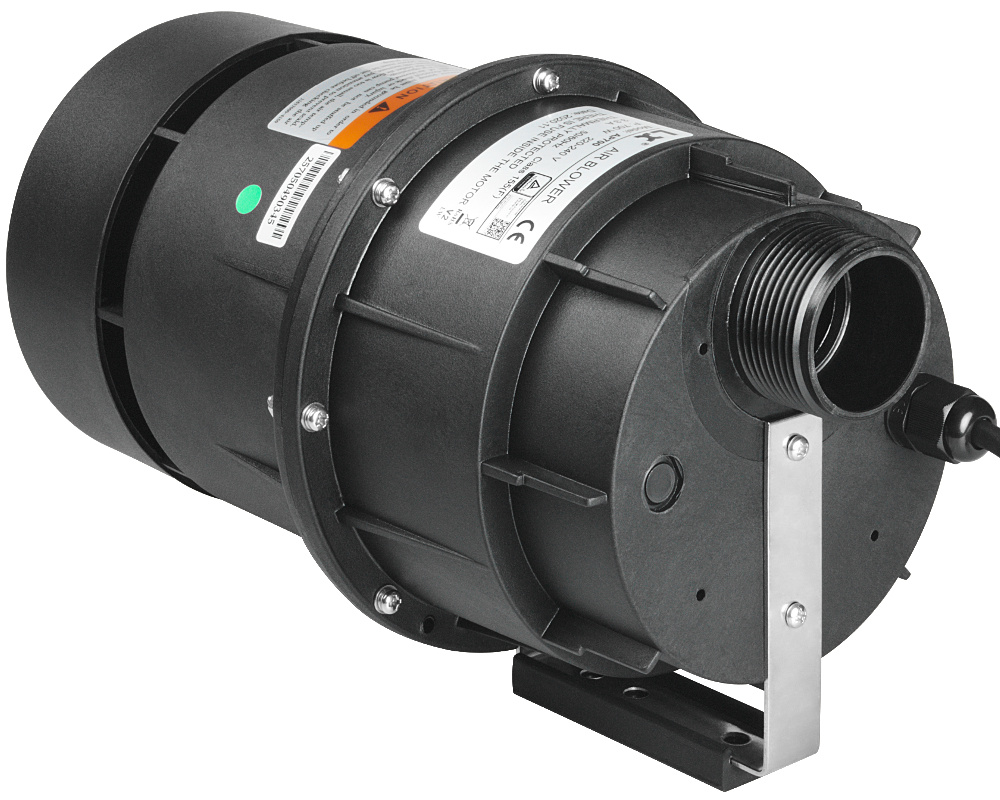

LX Whirlpool 700W blower - AP700-V2

The LX Whirlpool AP700-V2 air blower is used by several portable hot tub brands, and is a suitable replacement part for almost any spa.

If your old blower died because water got into it then check that the one-way valve on the air line is working correctly before installing a new one.

This blower is compatible with most whirlpools and spas for personal use. It is not suitable for commercial use.

Technical specifications
Power: 700W
Voltage: 220-240V
Current: 3.3A
Air volume: 2m³/min
Jets Qty (pc): 16-32
Noise level: <70dB

Dimensions
245 x 110 x 150 mm

Connection
The blower comes with a union for 1-inch (33 mm) pipe.

Cable and plug
The blower comes with a 150 cm cable and an AMP plug. For a Mini J&J connection, an additional adapter is required.

Warranty
2-year Tubs Parts warranty

Note that the 2-year warranty does not apply to the carbon brush, also known as a motor brush, a graphite bonding agent that conducts the electrical current between stationary and rotating wires inside the motor. The carbon brush is a wearing part with a life expectancy of approximately 1500 hours.

Part numbers
LX Whirlpool: AP700-V2
Volition: 2V-004AP
The "-V2" means that these models contain the new version of the motor. They are perfectly compatible with older models, without "-V2".

Plug types

AMP plug

J&J plug

in.link plug
