LX Whirlpool air bleed adapter (old model)

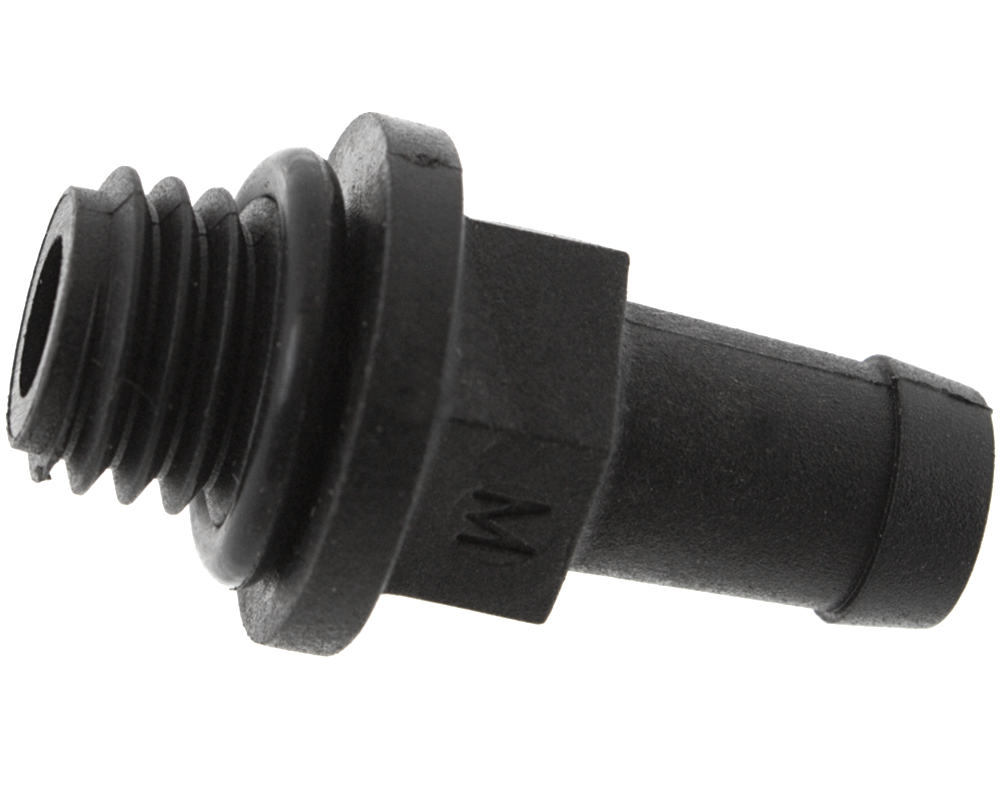

This adapter screws threaded end can be screwed into the drainage point on the wet end of LX Whirlpool pumps, and this part is sometimes used to connect a small pipe to help prime the pump. It is supplied without gasket.

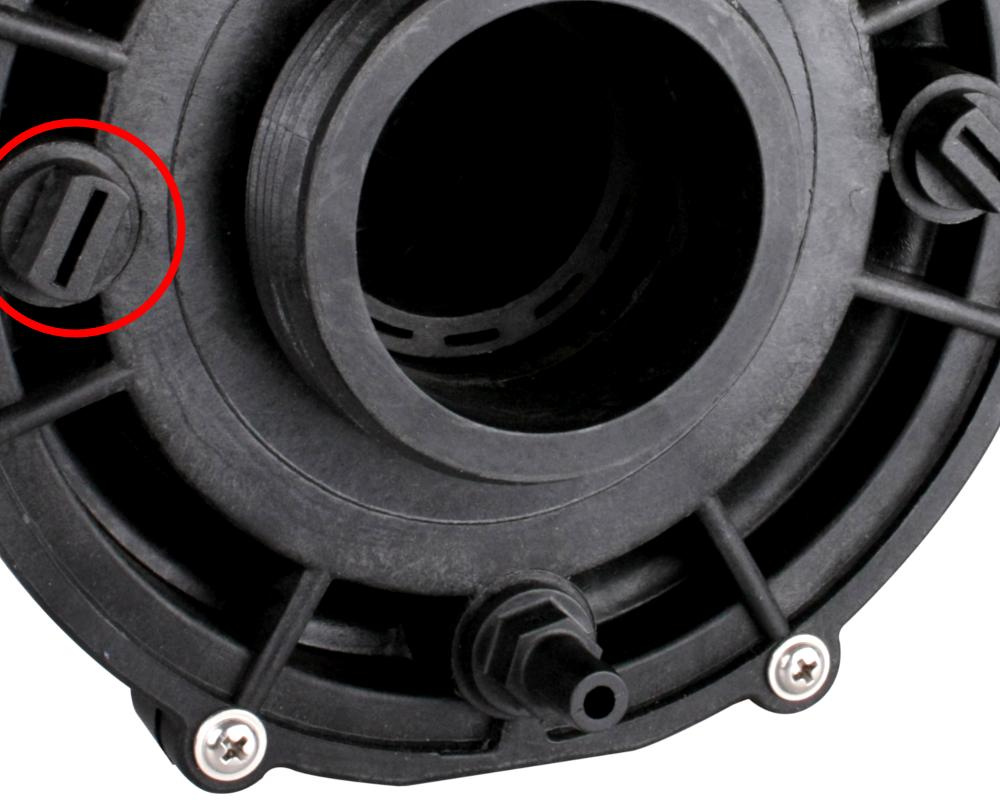

This adapter only screws onto old LX Whirlpool drain plugs (see picture 2). For your ease of use, an "M" (for an MPT thread) is engraved on the drain plug and the corresponding adapter).

If a new drain plug is screwed in (with an "N" (for an NPT thread), this adapter will have a thread diameter that is too thin. Then choose an adapter with a wider screw thread.

Dimensions
External diameter of the threaded side: 12 mm
External diameter of the push-fit side: 11 mm
