LX Whirlpool JA100 circulation pump

In stock
129,00€
incl. 20% VAT
1.5-inch unions
Quantity:
LX Whirlpool JA100 circulation pump - Click to enlarge
LX Whirlpool JA100 circulation pump - Click to enlarge
LX Whirlpool JA100 circulation pump - Click to enlarge
LX Whirlpool JA100 circulation pump - Click to enlarge
LX Whirlpool JA100 circulation pump - Click to enlarge

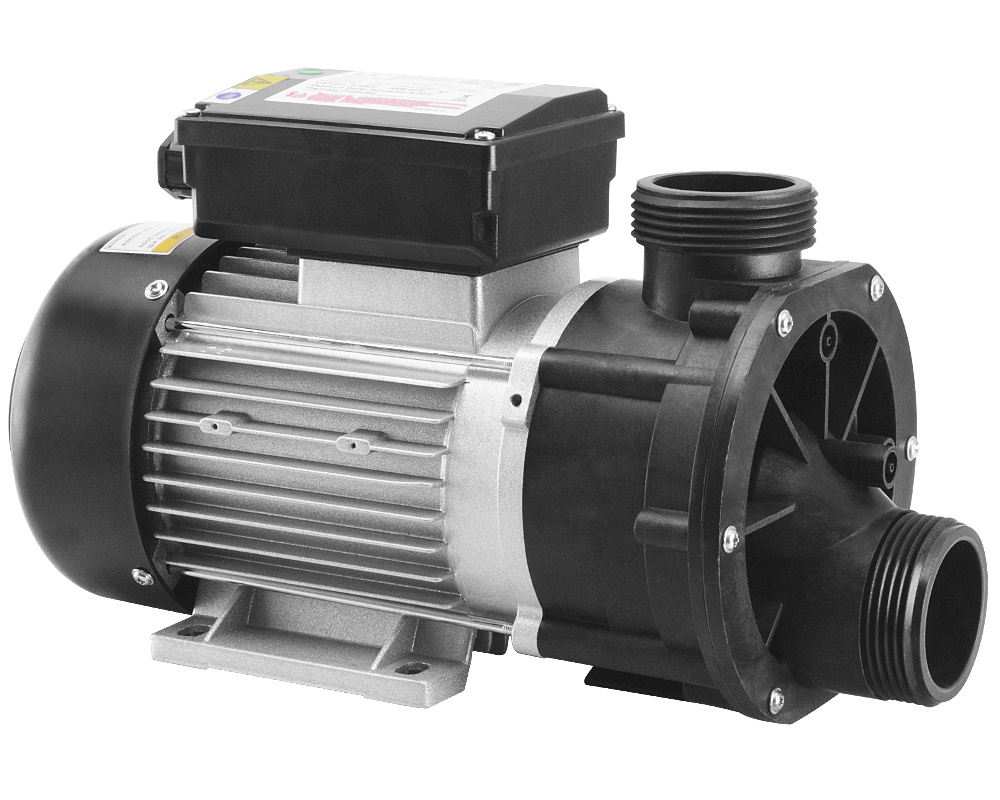

The LX Whirlpool JA100 is circulation pump used by many spa manufacturers.

We also sell the other pumps of the JA series: JA35, JA50, JA75, JA120, JA150 and JA200.

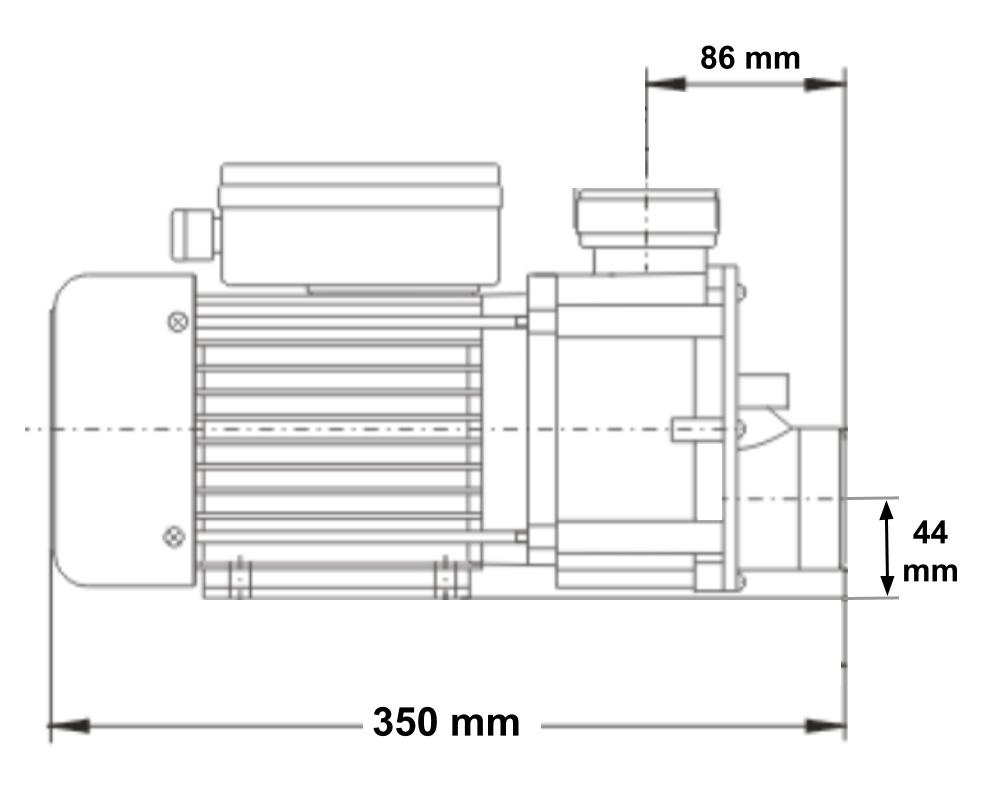

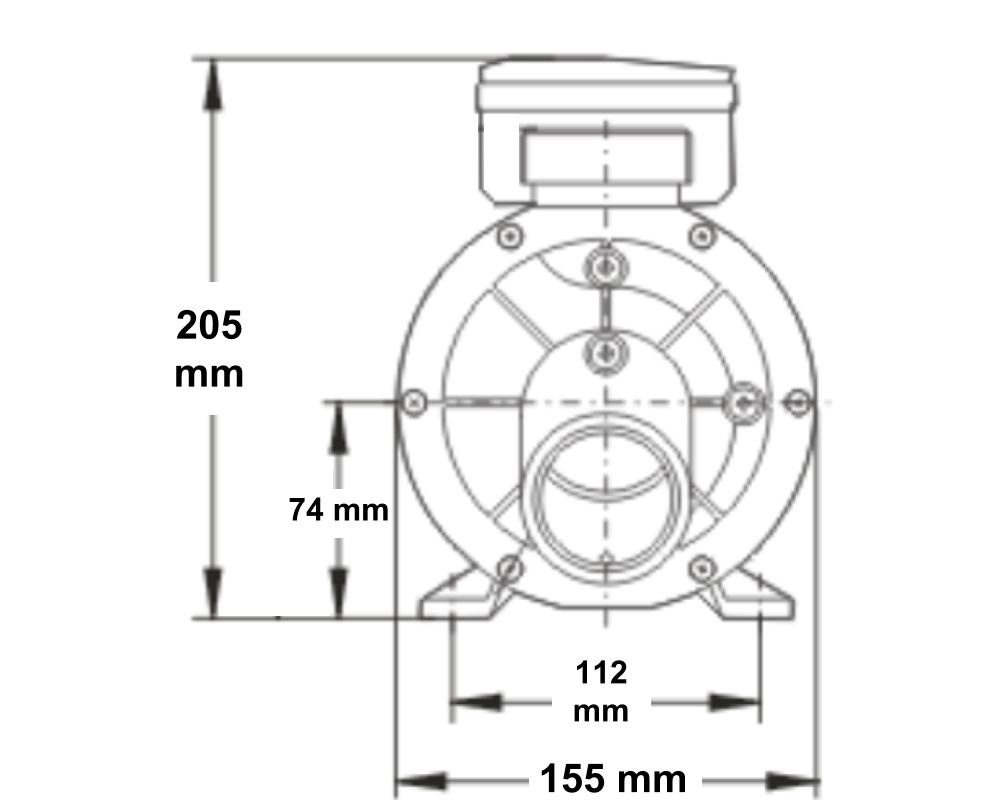

Dimensions
Length: 350 mm
Width: 155 mm
Height: 205 mm

Technical specifications
Power: 750 W - 1.0 HP
Speed: 2850 rpm
Maximum flow rate: 320 litres/minute
Capacitor: 15 µF

Plumbing connections
Thread diameter: 62 mm (1.5-inch MBT).
Pump unions and o-rings for 1.5-inch pipes are supplied.

Cable and plug
The LX Whirlpool JA100 circulation pump is supplied pre-cabled with an AMP plug (length 130 cm). You can also choose to have it pre-cabled by our team with a mini J&J plug.

Similar pump
The LX DH.1 pump has the same motor power and thread size as the JA100, and roughly similar dimensions. If you want to replace your pump with another model, check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.

Warranty
2 years Tubs Parts warranty

Plug types

AMP plug

AMP plug

J&J plug

J&J plug

in.link plug

in.link plug
