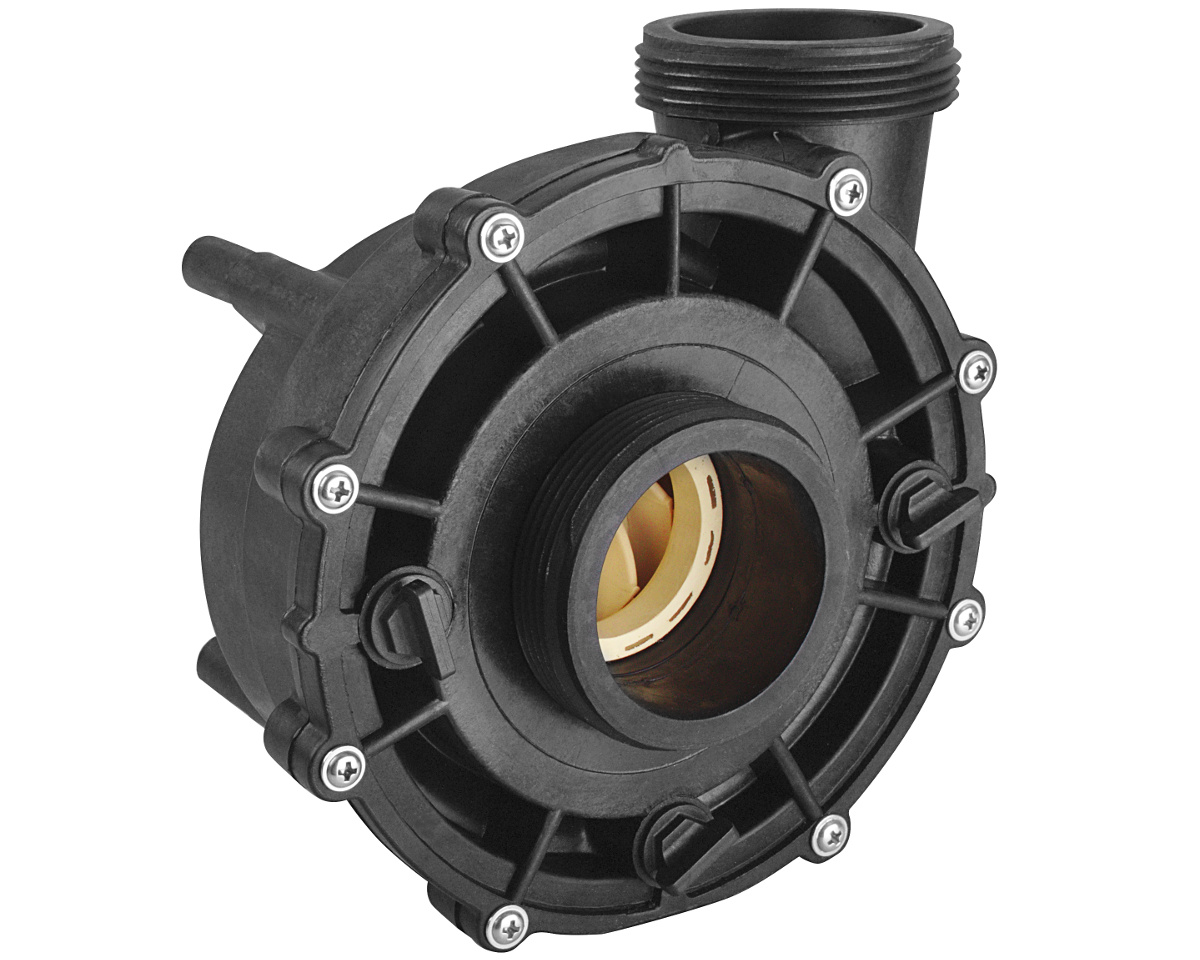

LX Whirlpool LP and WP300 wet end

This wet end is a spare part for LX Whirlpool LP300 and WP300-II in 56-Frame.

It is sold with its volute, impeller, mechanical seal, flange and flange gasket.

If you're in any doubt about measuring the chassis (in 48-Frame or 56-Frame), we explain how to measure the fixing centres.

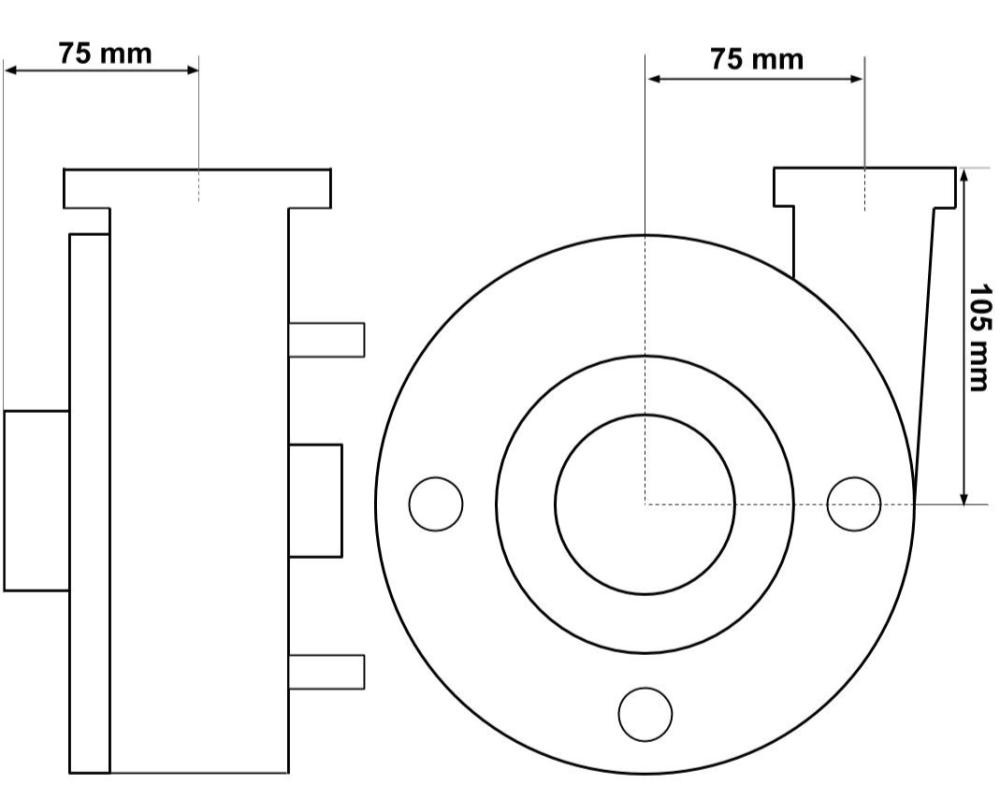

Dimensions
Width: 180 mm
Height: 195 mm

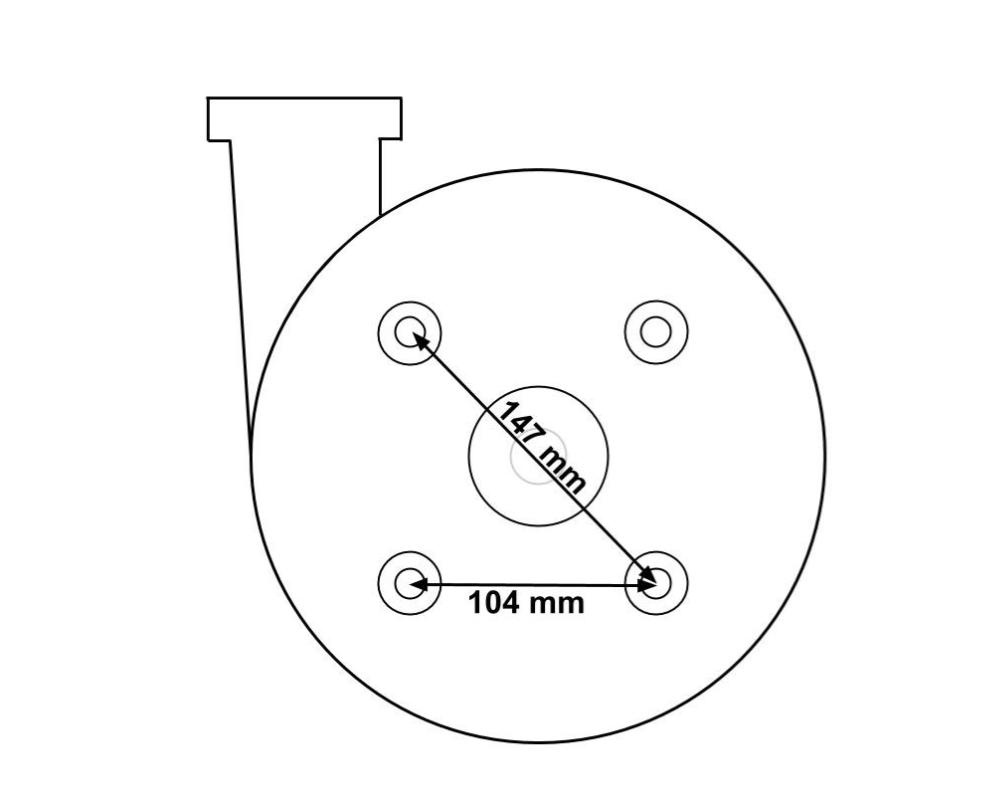

Mounting point centre distances: 147 mm diagonal, 104 mm horizontal and vertical.
This body is compatible with 56-Frame single-speed and dual-speed motors.

Connections
Delivery and suction: 78 mm O.D. threaded male spigot (type 2 inch MBT)
To be connected with 2 inch (60 mm) hose pump unions.

References
You may find part number B346-14 (or similar) on the back of this body, but the manufacturer changes these codes quite often, so the absence of this part number does not necessarily indicate that this body will not fit. If in doubt, contact us.
