LX Whirlpool TDA35 circulation pump

In stock

114,00€

incl. 20% VAT

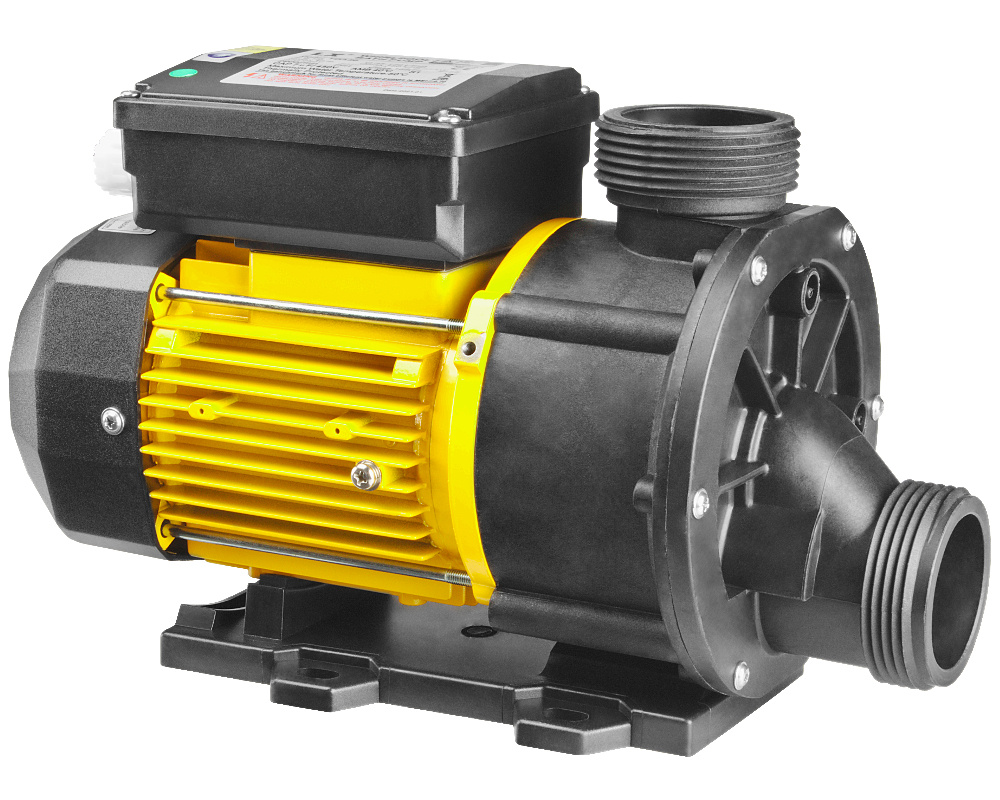

LX Whirlpool TDA35 circulation pump - Click to enlarge

The LX Whirlpool TDA35 pump is generally used as a circulation pump, like others from the same series: the TDA50 and the TDA75, with different power ratings. The TDA100 and TDA200 are more powerful models from the same series, and are generally used as massage pumps.

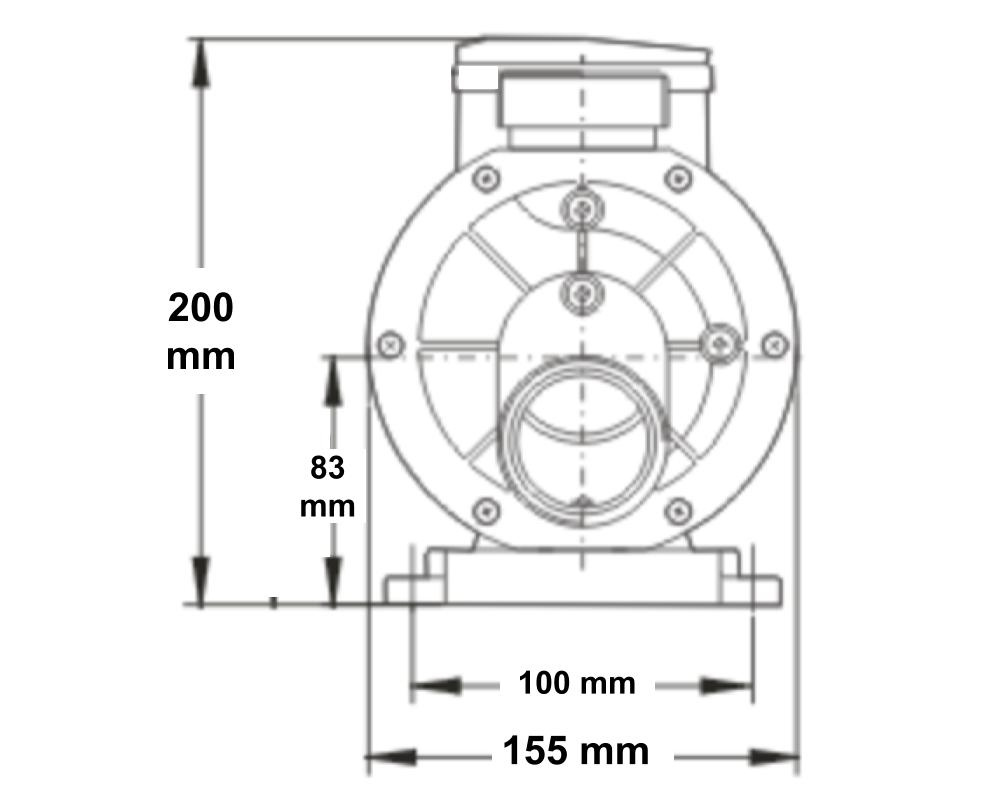

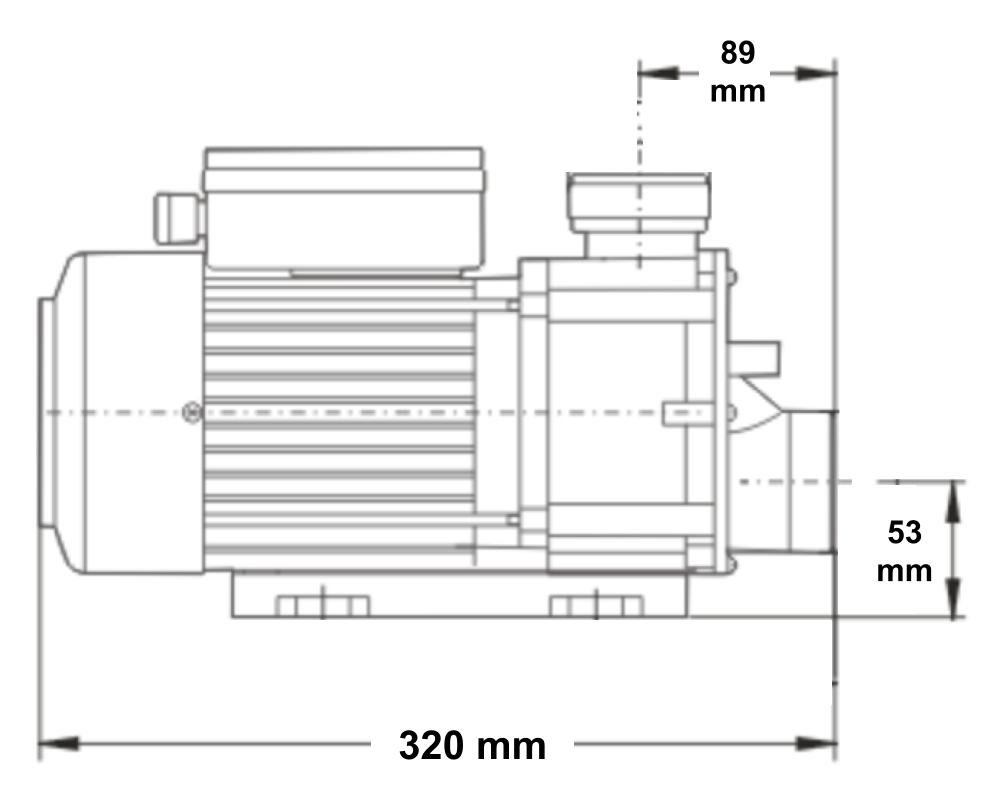

Dimensions
Length: 320 mm
Width: 155 mm
Height: 200 mm

Technical specifications
Power: 250 W (0,35 HP)
Speed: 2850 rpm
Maximum flow rate: 150 litres/minute

Plumbing connections
Thread diameter: 62 mm (1.5-inch MBT)
We offer unions for 1.5-inch pipe

Capacitors
7 µF

Cable and plug
The LX Whirlpool TDA35 circulation pump is supplied pre-cabled with an AMP plug (length 130 cm). You can also choose to have it pre-cabled by our team with a mini J&J plug.

Alternatively, if you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.

Warranty
2-year Tubs Parts warranty

Plug types
