LX Whirlpool WE14 circulation pump

Lead time uncertain
contact us
120,00€
incl. 20% VAT
1.5-inch unions
Quantity:
LX Whirlpool WE14 circulation pump - Click to enlarge
LX Whirlpool WE14 circulation pump - Click to enlarge
LX Whirlpool WE14 circulation pump - Click to enlarge
LX Whirlpool WE14 circulation pump - Click to enlarge

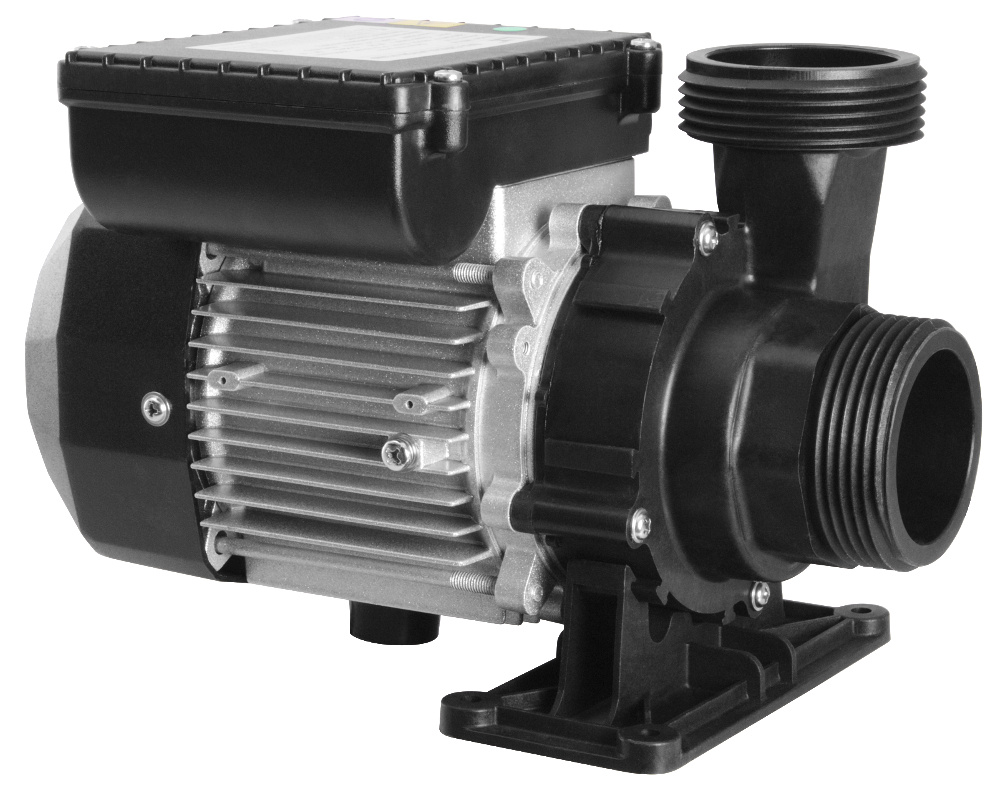

The LX Whirlpool WE14 is a 180 W circulation pump used by many spa manufacturers.

Technical specifications
Power: 180 W
Current: 0.8 A
Speed: 2850 rpm
Maximum flow rate: 153 litres/minute

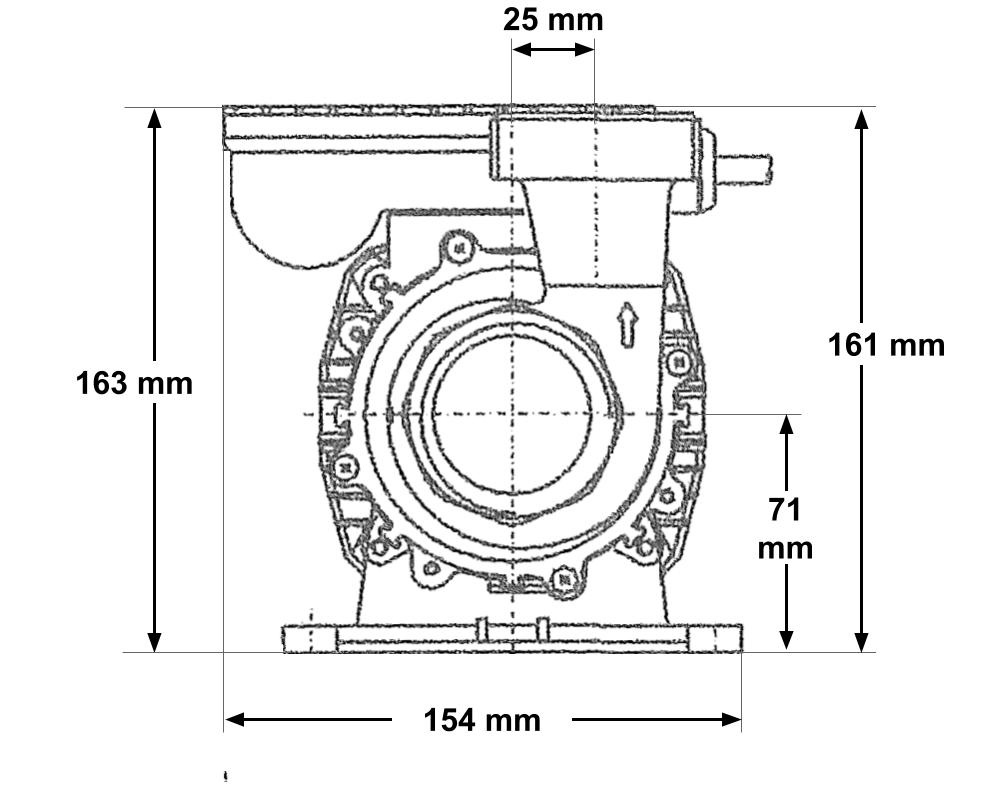

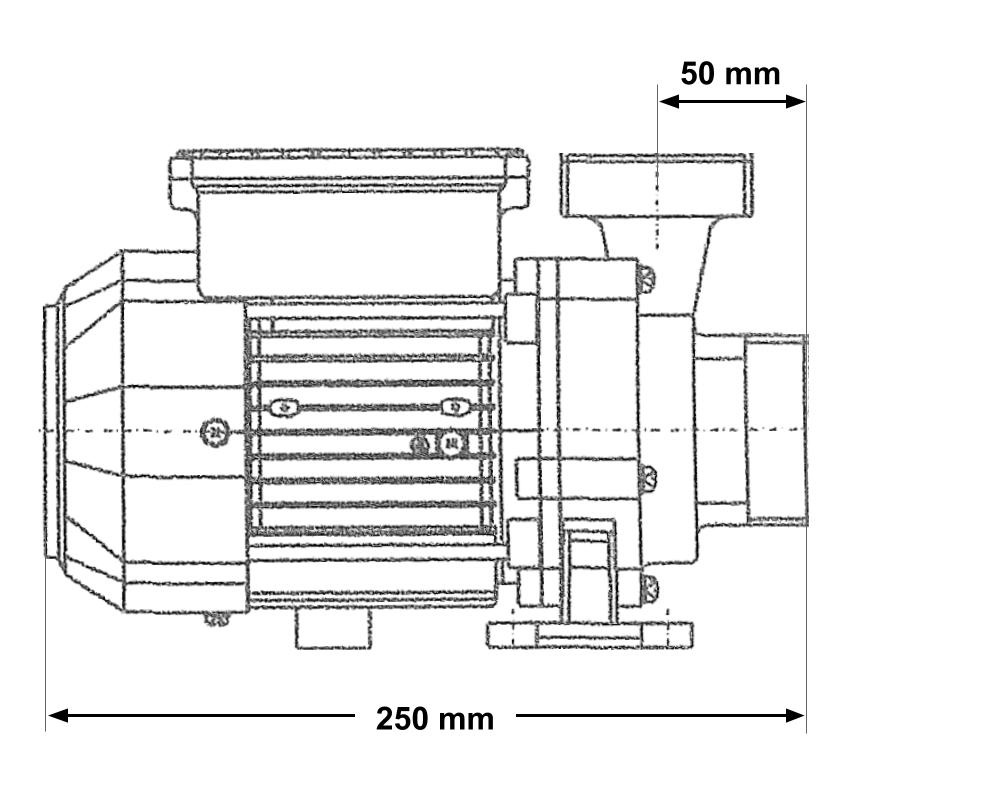

Dimensions
Length: 250 mm
Width: 154 mm
Height: 163 mm

Plumbing connections
Thread diameter: 62 mm (1.5" MBT)
We offer unions for 1.5"

We do not advise you to change the orientation of the wet end pump by yourself, as the handling is delicate. Please contact us for more information!

Cable and plug
The LX Whirlpool WE14 circulation pump is supplied pre-cabled with an AMP plug (length 130 cm). You can also choose to have it pre-wired by our team with a mini J&J plug.

Similar pump
The Laing E14 has similar power ratings, dimensions and flow rate.

Warranty
2 years Tubs Parts warranty

Part numbers
LX Whirlpool: WE14

Wet end orientation

Standard exit

Standard exit

Exit to left

Exit to left

Exit to right

Exit to right

Plug types

AMP plug

AMP plug

J&J plug

J&J plug

in.link plug

in.link plug
