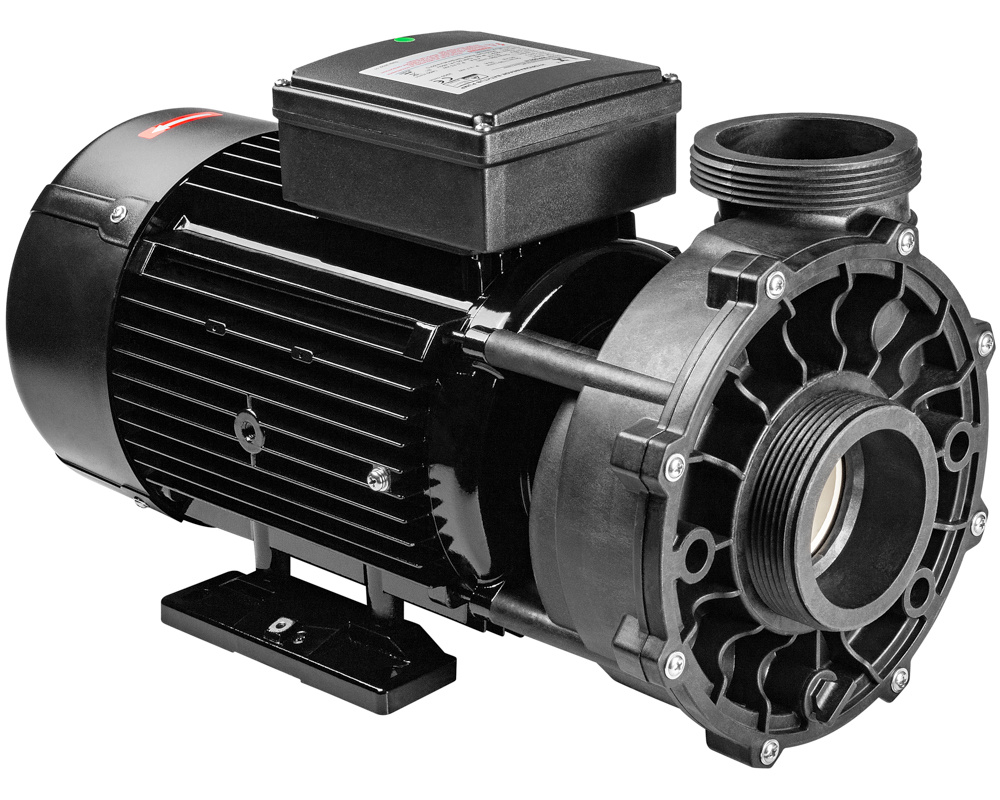

LX Whirlpool WP500-II 2-speed pump

Available in 1 week
445,50€
incl. 20% VAT
Quantity:
LX Whirlpool WP500-II 2-speed pump - Click to enlarge
LX Whirlpool WP500-II 2-speed pump - Click to enlarge
LX Whirlpool WP500-II 2-speed pump - Click to enlarge
LX Whirlpool WP500-II 2-speed pump - Click to enlarge

The powerful LX Whirlpool WP500-II pump is designed for counter-current swimming, but it can also be used as a massage pump. With a power rating of 3.7 kW in high speed, it can move up to 70,000 litres of water per hour, and is the most powerful single-phase pump that is used regularly in spas.

The pump has 94 mm male thread (2.5-inch MBT-type) to connect pipes to the suction and return. Pump unions are available for 2.5-inch (73 mm) and 2-inch (60 mm) pipe.

The orientation of the WP500-II wet end cannot be changed.

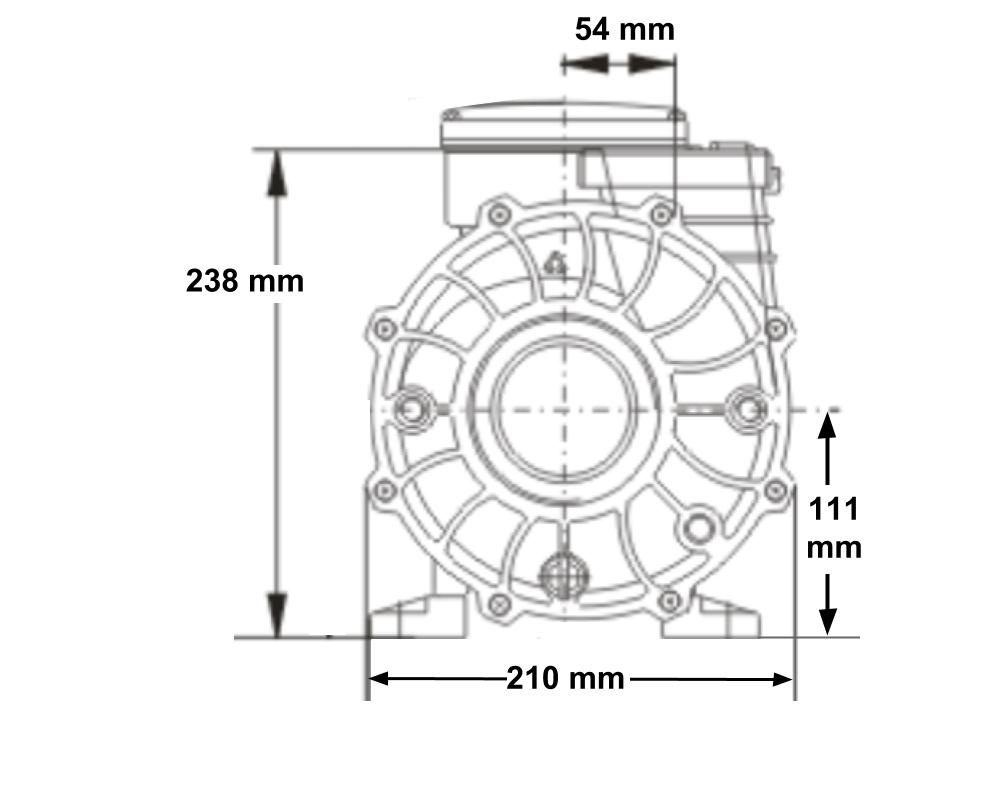

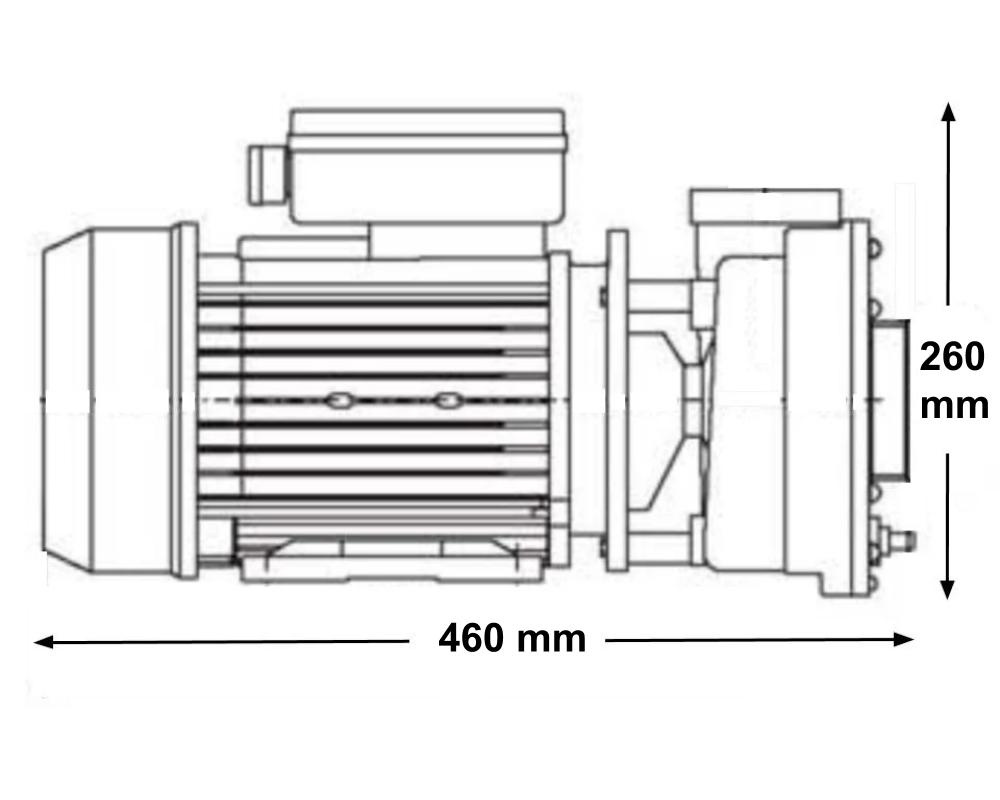

Dimensions
Length: 460 mm
Width: 210 mm
Height: 260 mm

Technical specifications
Power high speed: 3.7 kW (5.0 HP)
Power low speed: 0,75 kW
Current high speed: 15 A
Current low speed: 4,5 A
Maximum flow rate: 1120 litres/minute

Cable and plug
The LX Whirlpool WP500-II pump is available pre-cabled with an AMP plug (length 130 cm). You can also choose have it pre-cabled by our team with a 240 cm AMP plug, a mini J&J plug or an in.link plug (length 100 cm).

Warranty
2-year Tubs Parts warranty

Plug types

AMP plug

AMP plug

J&J plug

J&J plug

in.link plug

in.link plug
