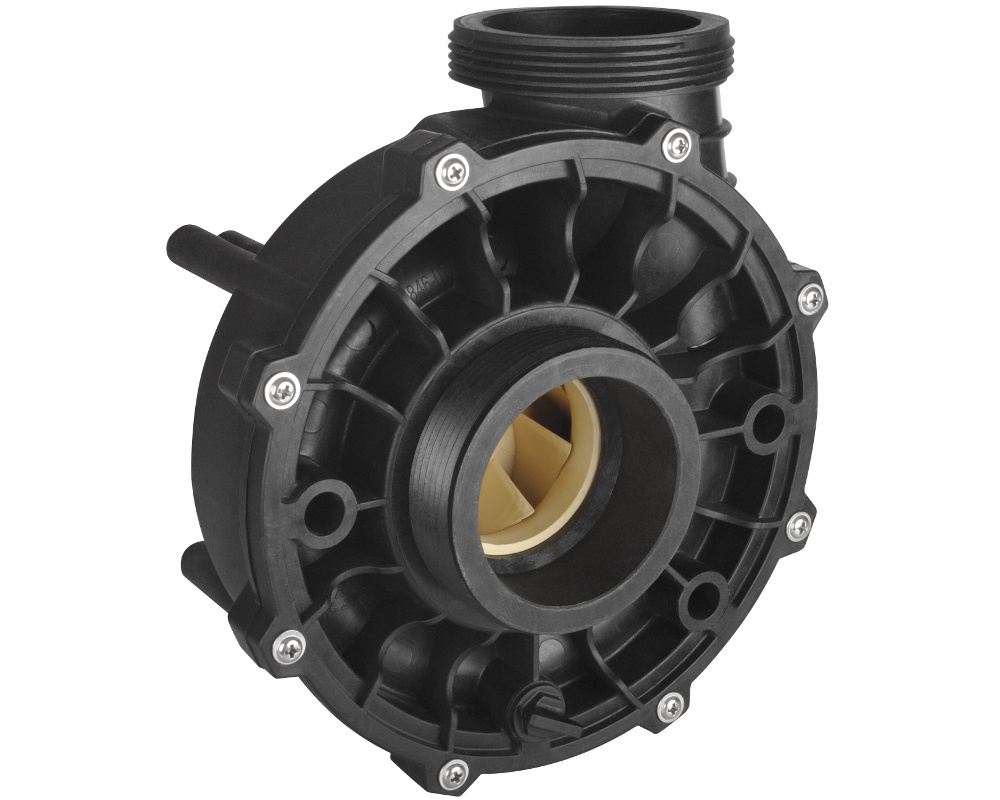

LX Whirlpool WP500-II wet end

This LX Whirlpool WP500-II wet end is sold complete with its faceplate, volute, impeller, wet end seal and o-ring.

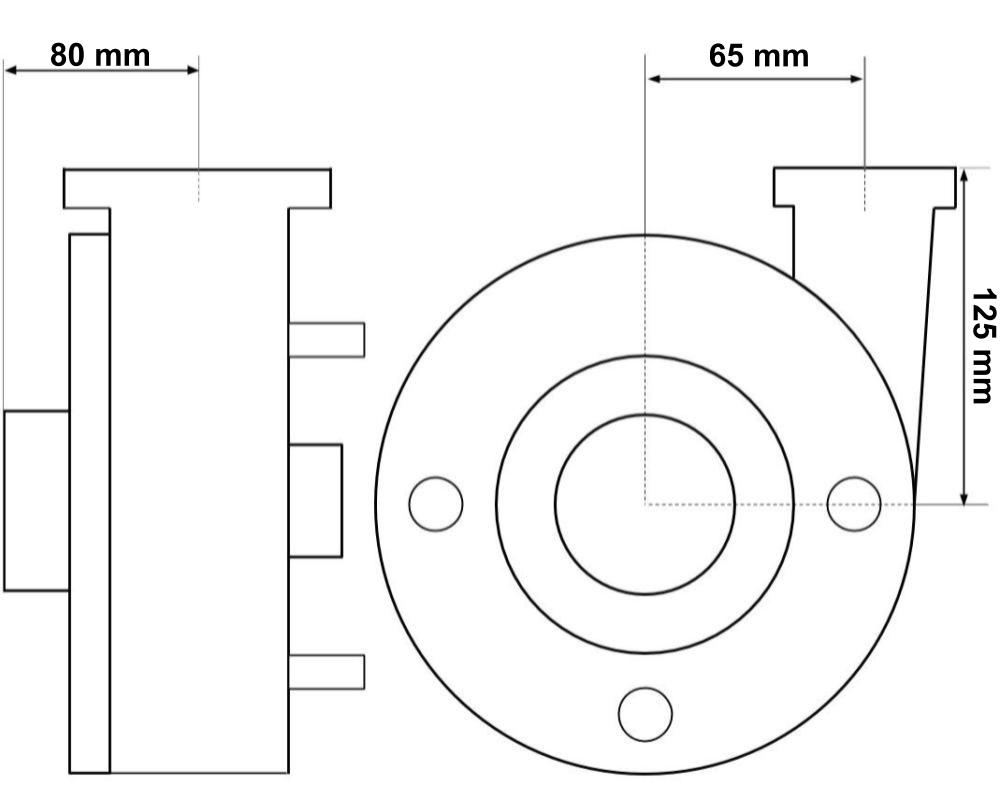

Dimensions
Width: 220 mm
Height: 235 mm

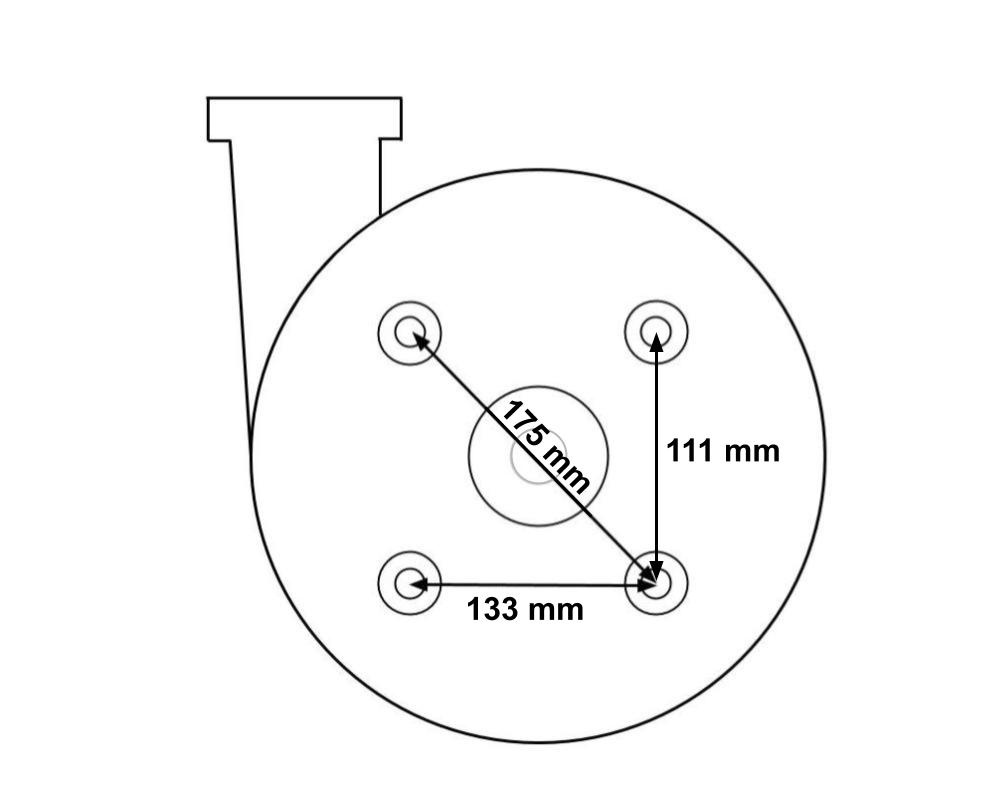

Centre distance of the fixing points: see scheme 3

Connections
Discharge and suction: 2.5" MBT thread, diameter 94 mm
To be connected with pump unions for 2-inch pipes (60 mm) or 2.5-inch pipes (73 mm)

LX Whirlpool part numbers
Faceplate: B846-02
Volute: B846-01
