Pentair Top Access diverter valve

Pentair Top Access diverter valve - Click to enlarge
Pentair Top Access diverter valve - Click to enlarge
Pentair Top Access diverter valve - Click to enlarge
Pentair Top Access diverter valve - Click to enlarge
Pentair Top Access diverter valve - Click to enlarge

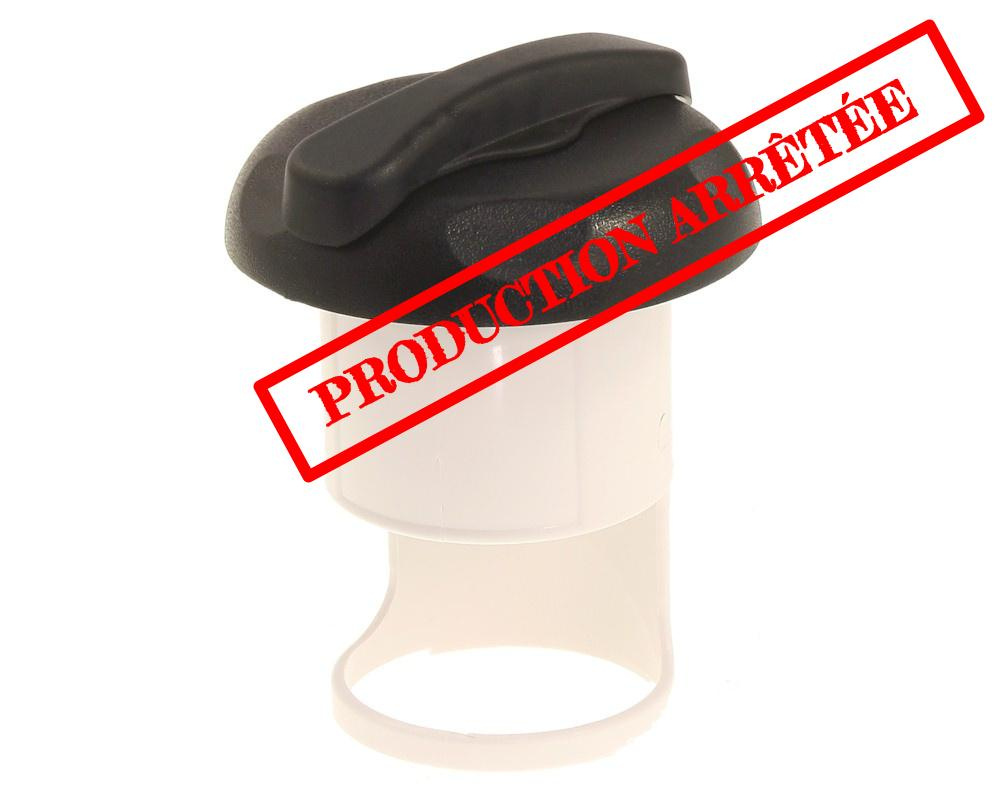

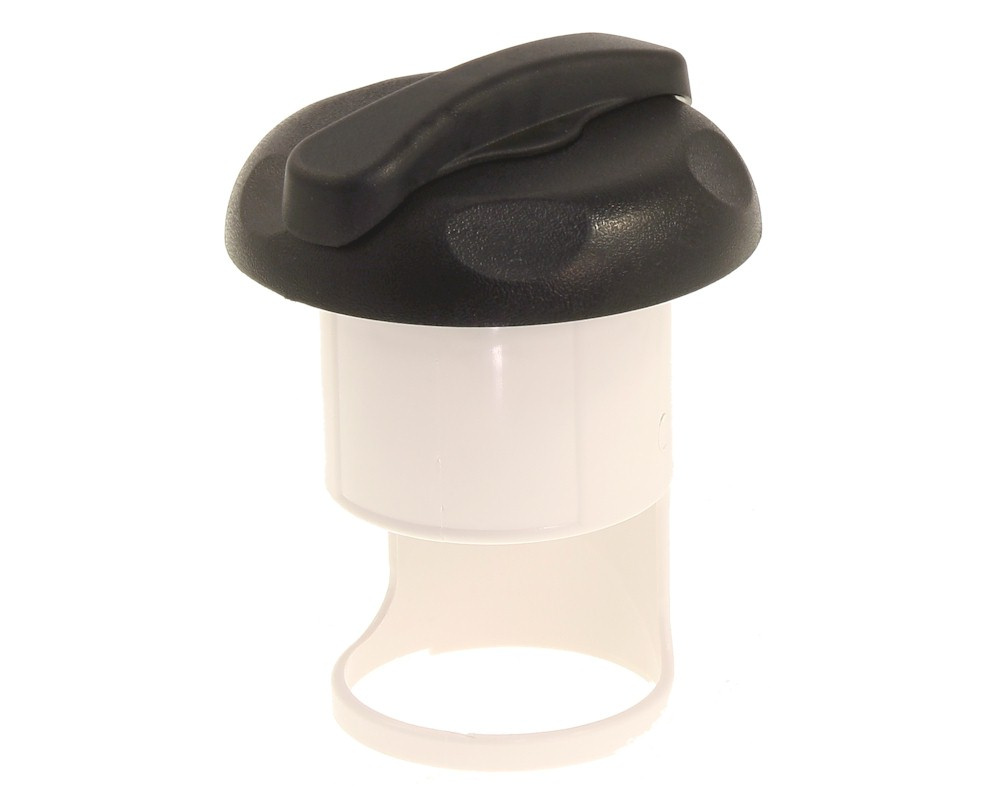

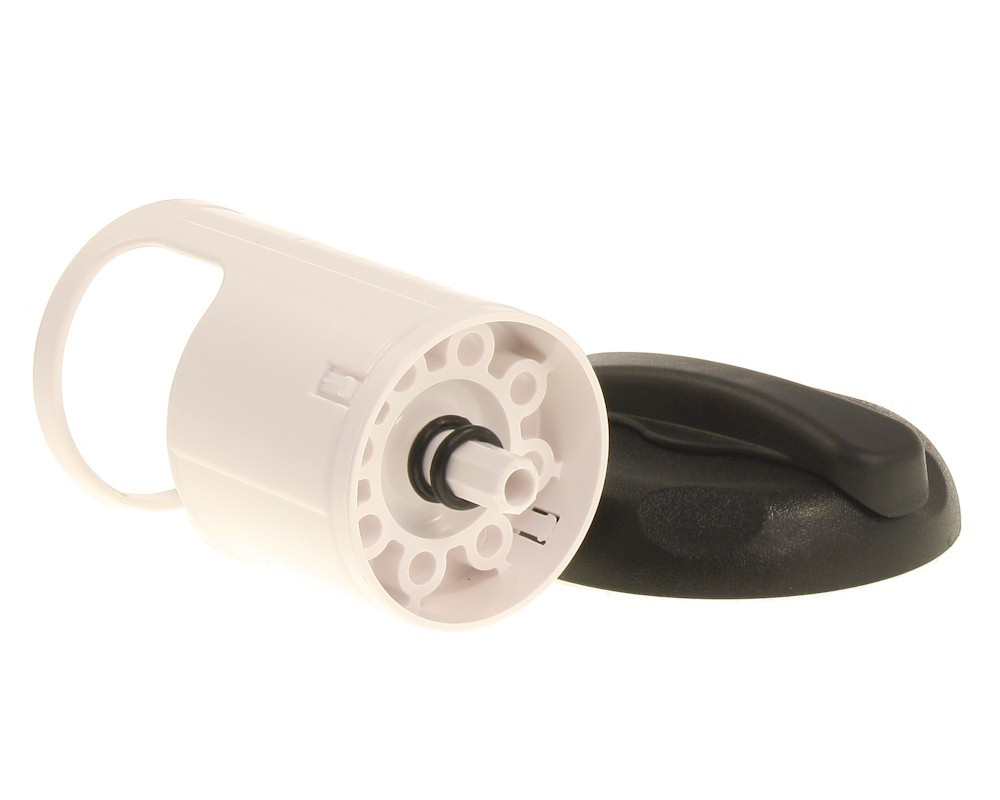

This valve interior is a spare part of the Pentair Top Access distribution valve. It is no longer sold by the manufacturer.

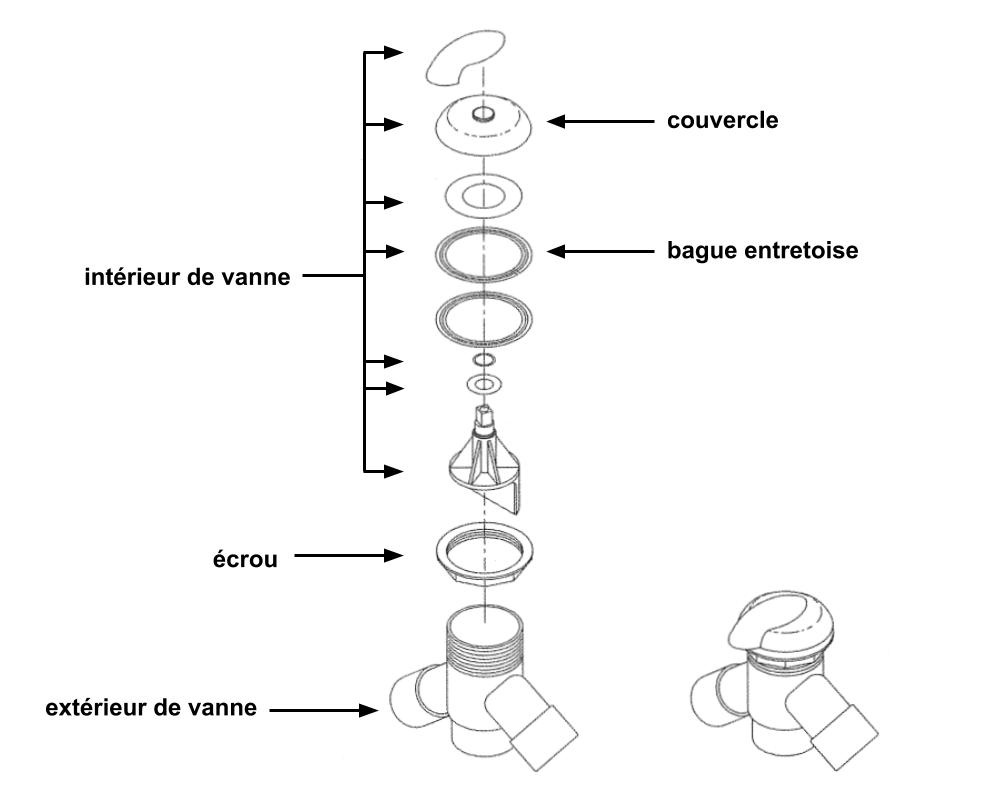

Other spare parts are available: cover, valve body, nut and snap ring.

Dimensions
Diameter of the white cylinder : 80 mm
Length of the white cylinder: 130 mm
Diameter of the octagonal column : 13 mm
Diameter of the cap : 120 mm
Length of the handle : 119 mm

Part numbers
Pentair: 90088611
Vita Spa: 212065 (cap and handle)
