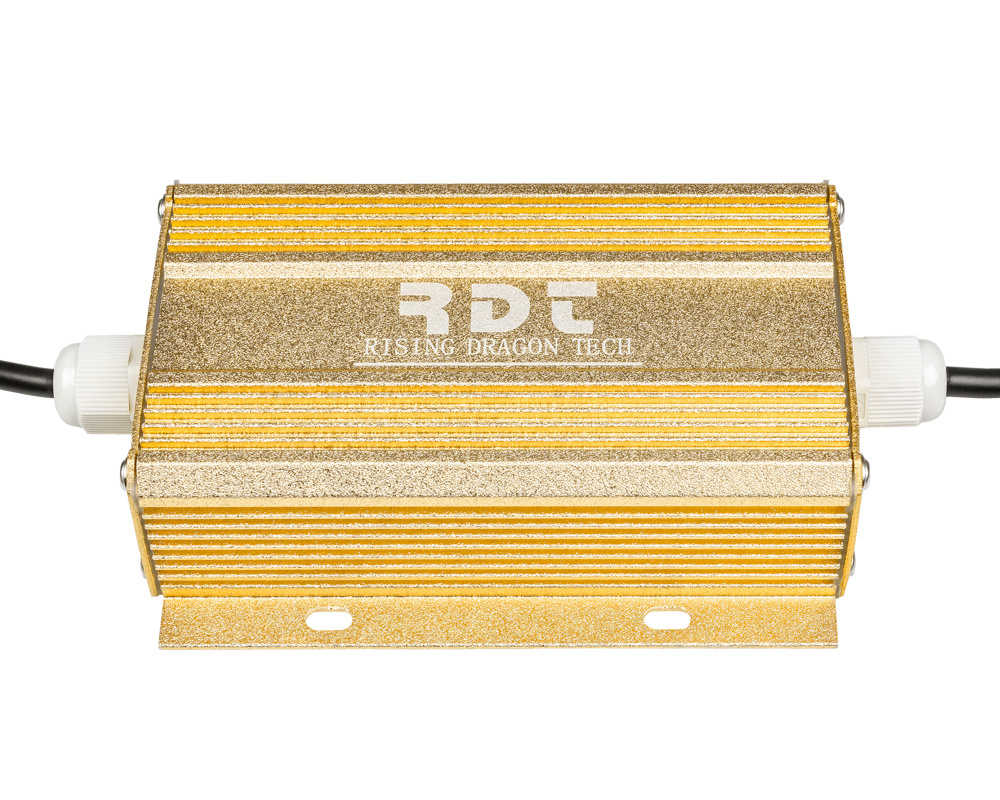

Rising Dragon Evolution Plus LED controller

This Rising Dragon LED controller from the Evolution Plus series can be connected to a 12V AC source such as a Gecko MSPA or an Astrel control box, among others, thanks to its cable using a 3-pin connector.

You can also choose to have it pre-cabled by our team with an AMP plug if you have a Balboa or Waterway control system for example.

This controller offers you very nice color effects: static lighting, slow or fast color sequence, intensity variations and strobe effect. Each ON/OFF impulse on your keyboard allows you to change the color sequence.

Thanks to its 4-PIN round connector, you can chain one slave light and/or one or more spyders (with double or quadruple LEDs for example), and the control unit manages the color changes so that all the LEDs remain synchronized.

Features
Input voltage: 12V AC/DC
Max. power : 22,5 W
Output voltage: 12V DC
Max. electric current: 1.66 A

Part numbers
Rising Dragon : 1K75LF-A01TL
