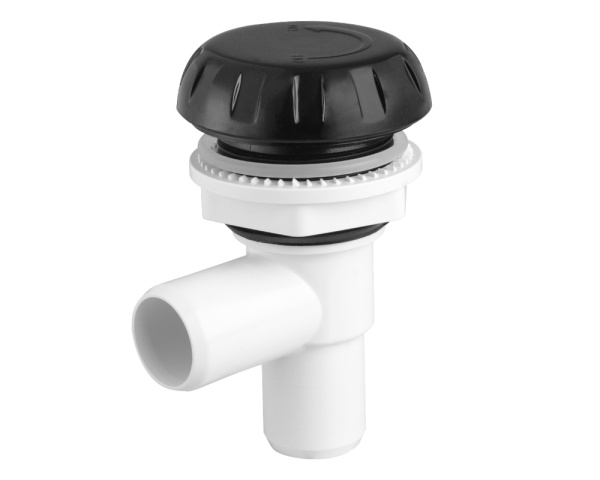

Rising Dragon 1" flow-control valve

This Rising Dragon valve controls the flow to a water feature like a waterfall or neck jets, and is often found on Arctic Spas hot tubs.

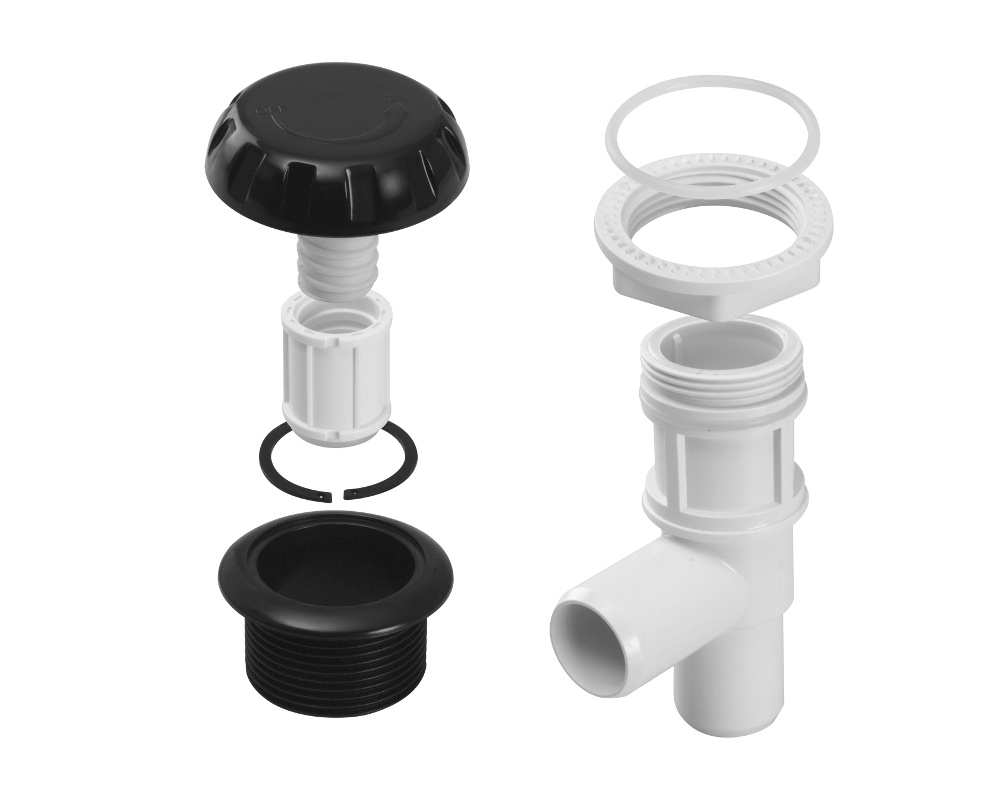

This valve is a little special since it is divided into 8 parts: handle, internal part, body, fixing nut, black compensator ring, o-rings (two) and housing.

A 1 "F to 3/4 "M+ reducer is also included.

Dimensions
Length: 133 mm
Face diameter: 78 mm
Outside diameter of fittings: 33 mm
Inside diameter of fittings: 27 mm
Drill diameter: 55 mm
Top diameter (where the cap screws on) : 45 mm

Connections
Male connection for 1-inch pipes with a straight connector
Female connection for 3/4-inch pipes

Rising Dragon part numbers
Complete valve : RD601-2012
