Rising Dragon 2" jet socket assembly

This jet socket works with all screw-in jets from Rising Dragon's 2-inch range. The socket fits into the wall of the shell, and the jet screws into the socket.

The sealing between the jet and the shell is provided by a fixing nut and a gasket (to be purchased separately).

Dimensions
Drill diameter: 37 mm
Front face diameter: 50 mm
Overall length: 68 mm

Pipe connections
Water: Barbed fitting for 3/4-inch pipe
Air: Smooth fitting for 3/8-inch pipe

Rising Dragon part numbers

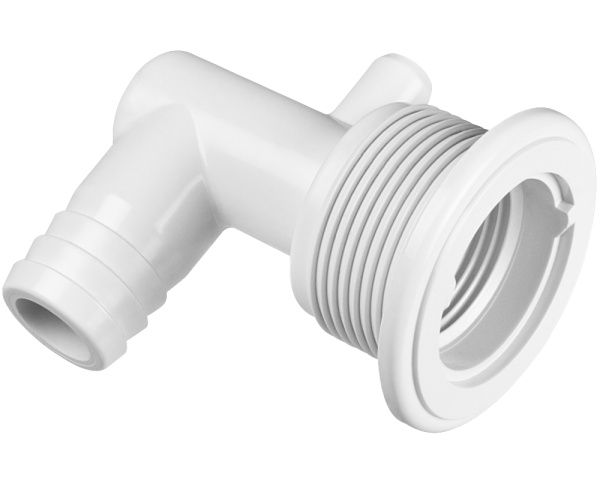

White : RD213-2003

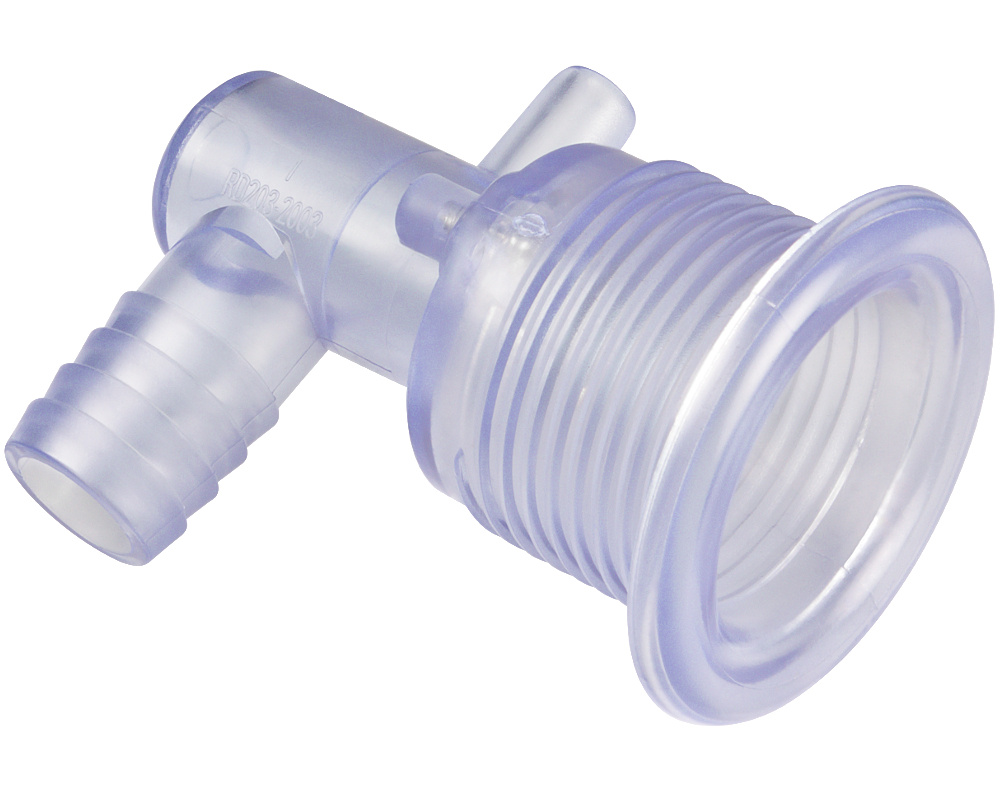

Clear: RD233-2003
