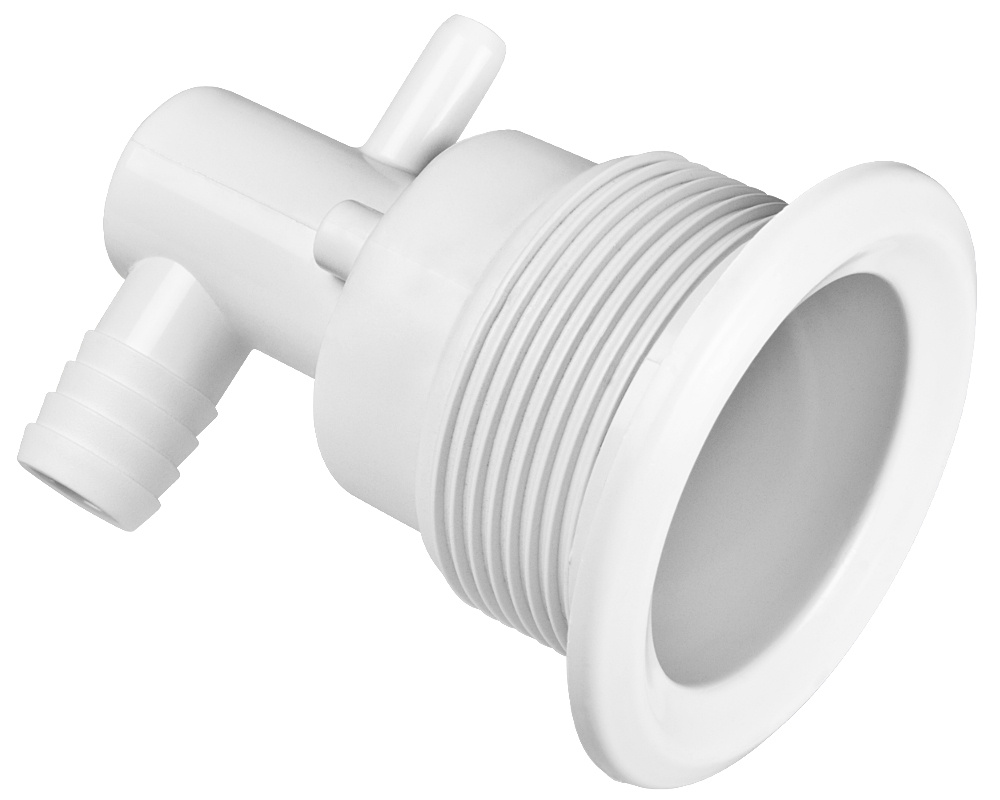

Rising Dragon 4" jet socket

This threaded jet socket is suitable for all screw-in hot tub jets from Rising Dragon's 4-inch range. The socket fits into the wall of the shell, and the jet screws into the socket.

The sealing between the jet and the shell is provided by a fixing nut and a gasket (to be purchased separately).

The water flow through the socket draws in air through the Venturi effect, which adds bubbles to the water jet and increases the power of the massage. The air inlet of each nozzle is normally connected to a manifold and then to a valve, so that the air/water mixture in the jets can be modified. If you don't want us to have bubbles in the water jets, close the air inlet with a plug.

Dimensions
Outside diameter: 85 mm
Length: 107 mm
Outside thread diameter: 65 mm

Pipe connections
Water: 3/4-inch hose
Air: 3/8-inch hose

Part numbers
Rising Dragon: RD203-4003
