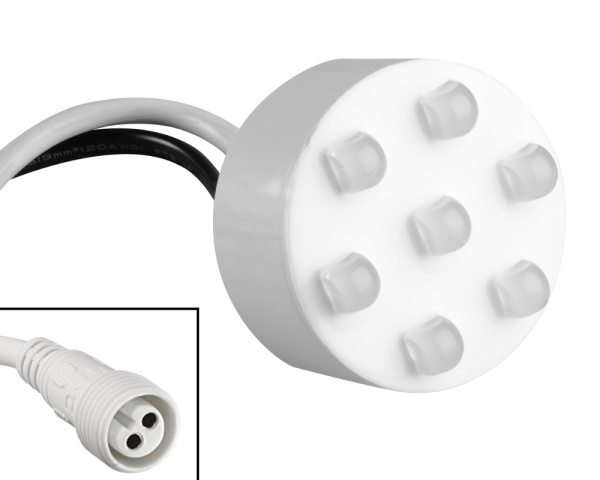

Rising Dragon Pinnacle 7 LED master light

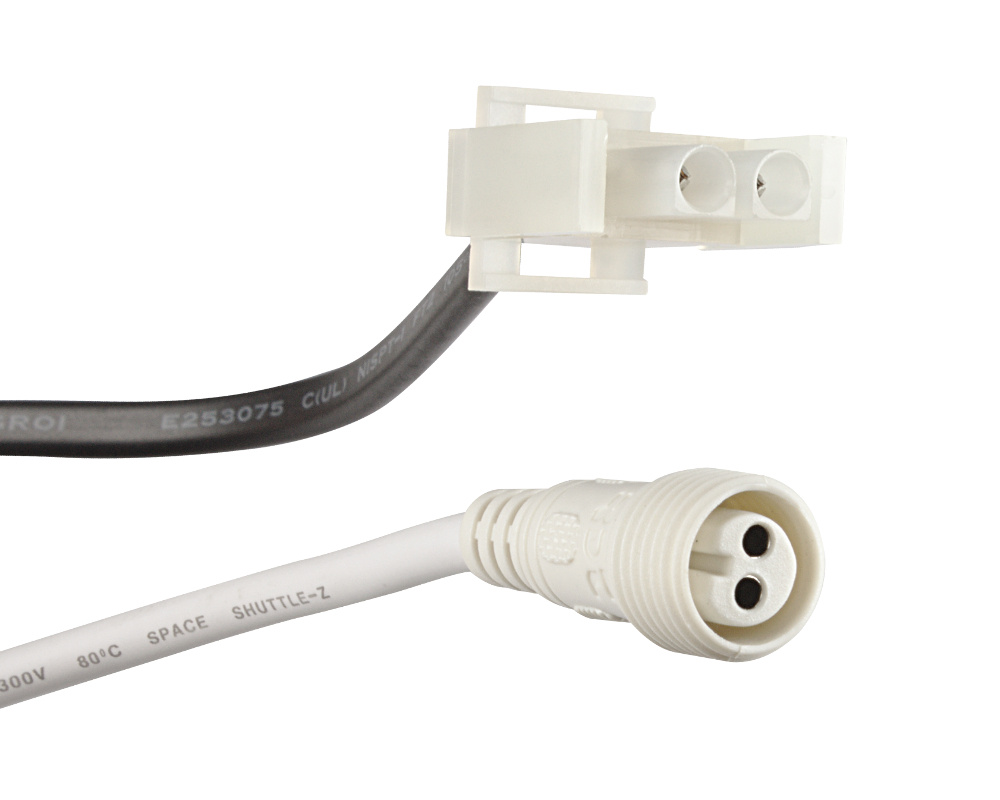

This Rising Dragon Pinnacle multi-colour master bulb connects to a 12V AC source with its 2-pin male AMP plug, of the type used on Balboa and Waterway NEO control systems, as well as the Y-series systems from Gecko. control systems.

Its 7 LEDs and integrated controller allow very beautiful color effects: slow or fast color sequences, intensity variations and strobe effect. Each ON/OFF pulse on your keyboard allows you to change the color sequence.

Its 2-PIN round connector allows you to link, by adding a perimeter cable, a slave bulb or a spyder (6-LED or 3-LED for example).

Be careful not to confuse this bulb with a very similar-looking model that is part of the Evolution series, which has a 4-pin connector instead of the 2-pin one used here.

Technical specifications
Electrical input: 12V AC
Electrical output, to control other LEDs : 5V DC
Power of the light itself: 1,4W
Max. power of the downstream LEDs: 7.5W (=1.5A @ 5V)

Dimensions
Diameter: 54 mm
Thickness: 33 mm

Compatible spa light assembly
Waterway 82 mm et 127 mm, Rising Dragon 127 mm, CMP 82 mm, Sundance Spas 108 mm

Part numbers
Rising Dragon: L7MTC-00ATL
