Rising Dragon Whirlpool Jet socket
This socket fits all Rising Dragon spa jets in the Whirlpool range, such as the Black, Stainless Steel and Monster. The socket attaches to the spa shell, and the jet fits into it.
The sealing between the jet and the shell is provided by a gasket (to be purchased separately).

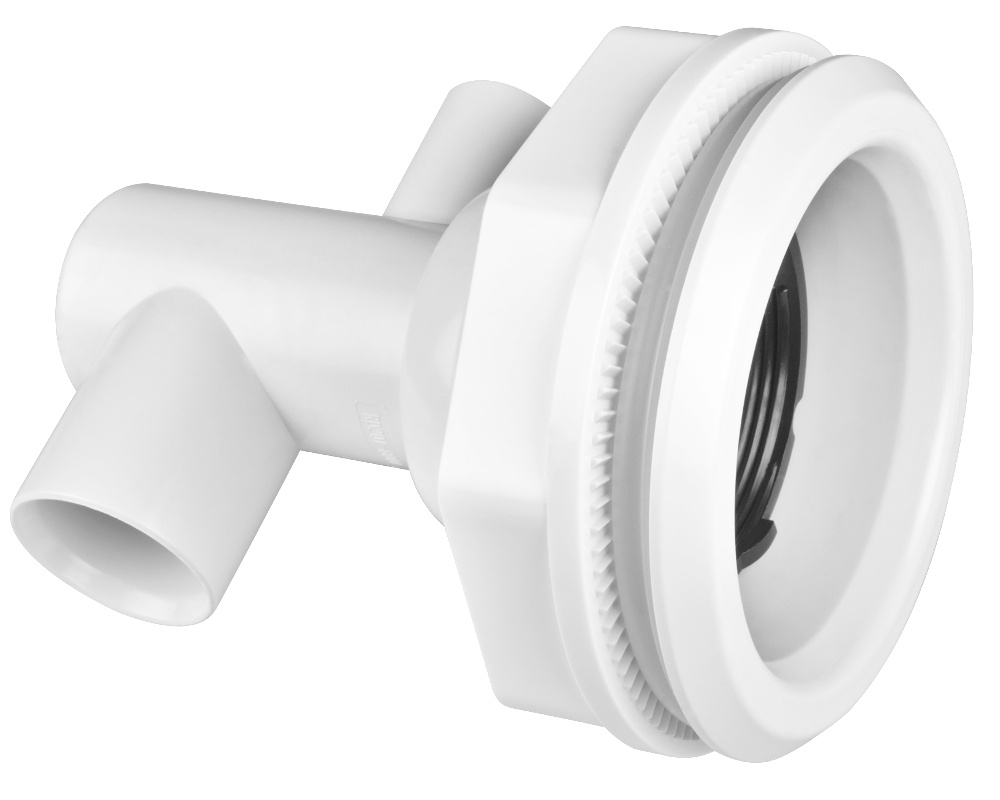

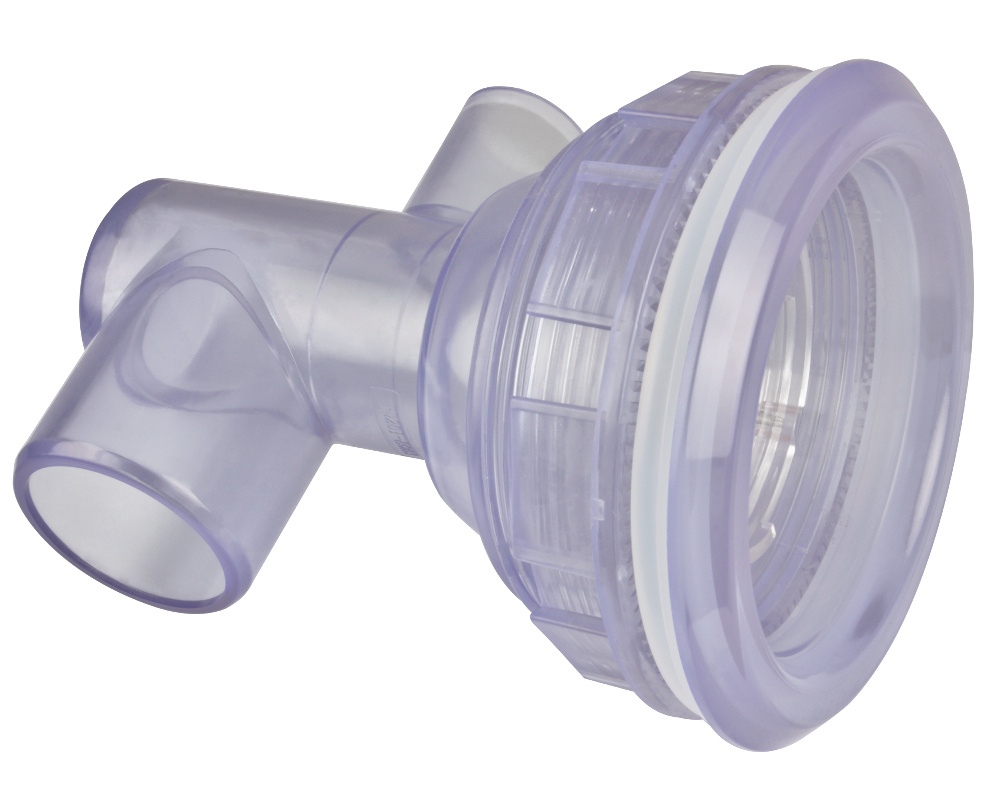

The socket is available in white and clear, ideal if you wish to add LED lighting. For the latter option, in addition to the fixing nut and included, don't forget the LED slots!
The water flow through the sleeve draws air through the venturi effect, which adds bubbles to the water jet and increases the power of the massage. The air inlet of each jet is normally connected to a common manifold, and then to a valve, so that the air/water mixture in the jets can be changed. If you do not want bubbles in the water jets, plug the air inlet with a cap.

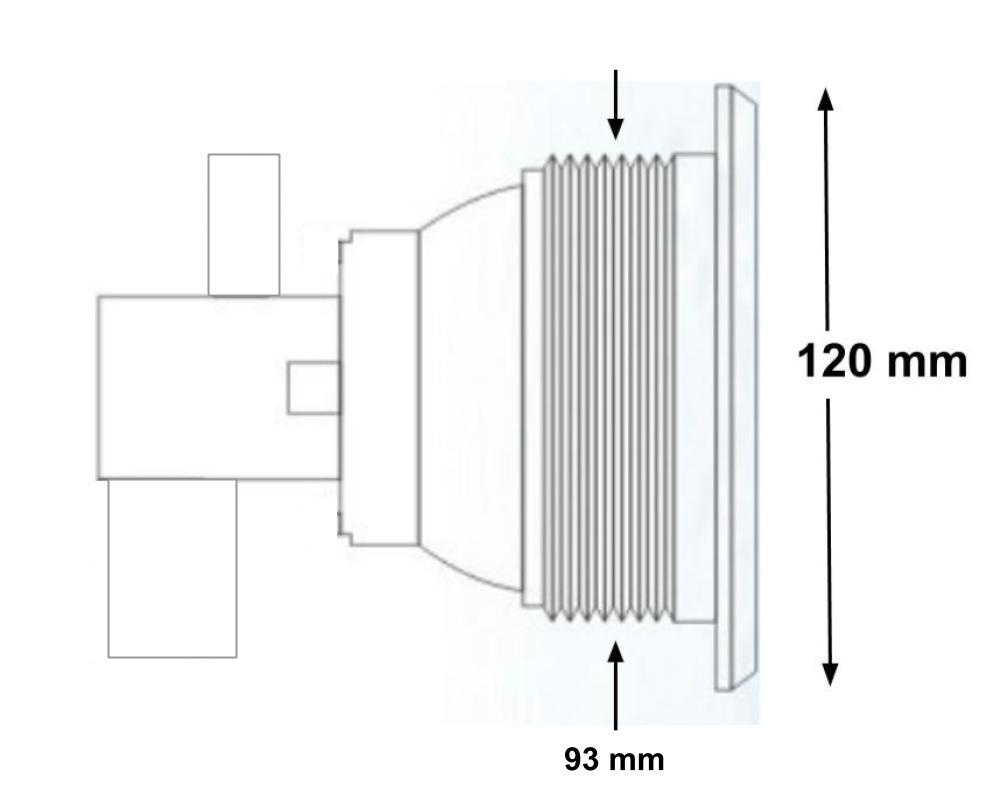

Dimensions
Hole diameter: 93 mm
Length: 151 mm
Face diameter: 120 mm
Pipes to be connected
- Water, white socket : 1-inch pipe
- Water, clear socket : 40 mm or 1.5-inch if you add a 1.5-inch female pipe fitting
- Air :1/2-inch pipe
Rising Dragon part numbers
White: RD201-8001, RD203-8001
Clear: RD201-8003, JET-117315
