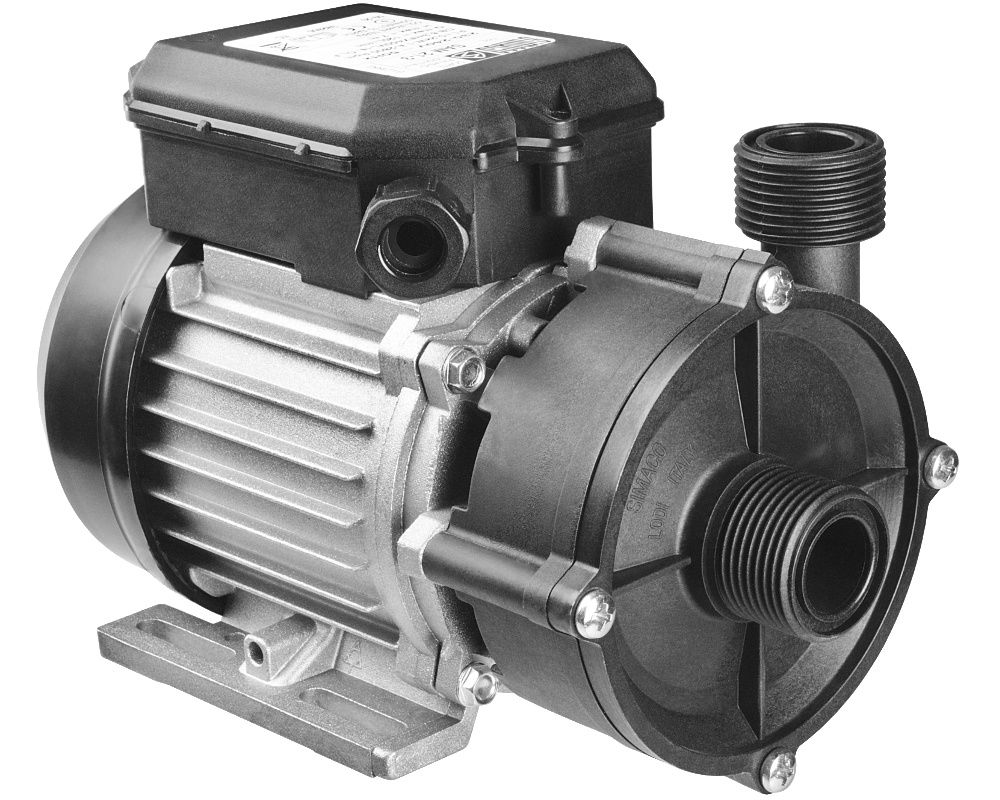

Simaco SAM 21-3 circulation pump

The ultra-compact SAM 21-3 circulation pump from the Italian brand Simaco has the special feature of having a very small suction and discharge diameter (MPT thread thread diameter 33 mm).

The wet end can be oriented in four positions (top, bottom, left and right), which will allow you to easily adapt your pump to your installation.

It is identical to the Simaco SAM 20-3 pump.

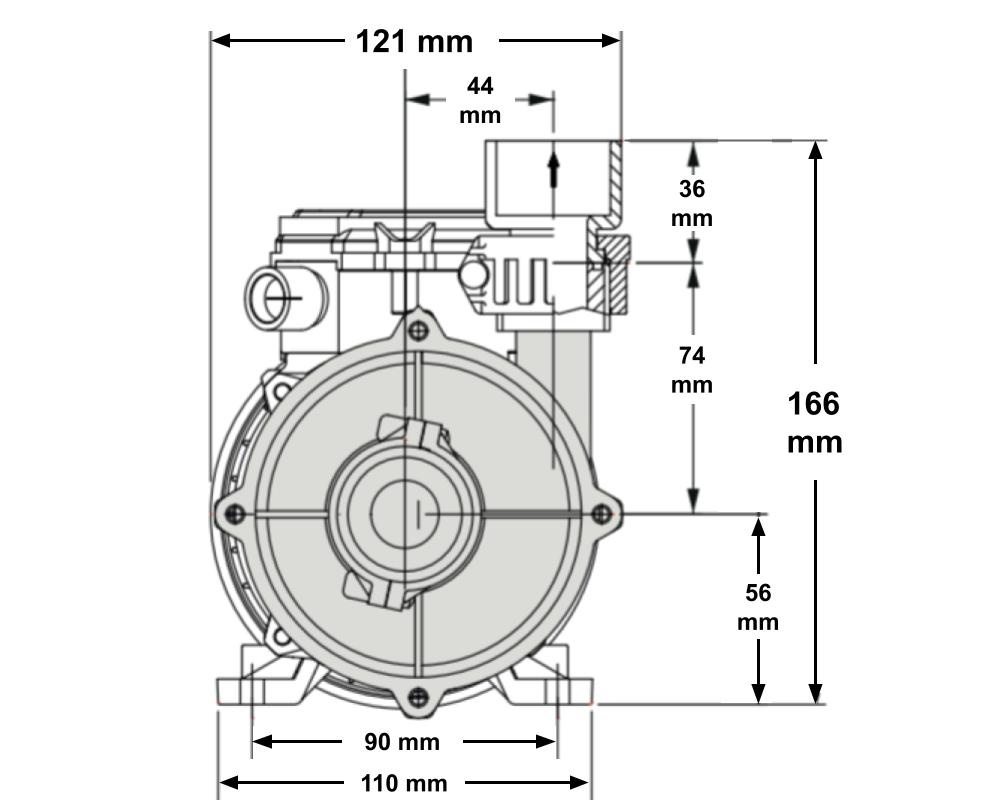

Dimensions (without fittings)
Length: 217 mm
Width: 121 mm
Height: 145 mm

Technical specifications
Power: 200W
Current: 1.0 A
Speed: 2900 rpm
Maximum flow rate: 120 litres/minute
Maximum delivery head: 7 meters

Connections
Discharge and suction: male threaded fitting with an external diameter of 31 mm
Pump unions for 1-inch pipe are provided.

Cable and plug
The SAM 21-3 pump is available pre-cabled without plug (length 70 cm). If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.

You can also choose to have the pump pre-cabled by our team with an AMP plug or a mini J&J plug.

Spare parts
We have many spare parts for this pump including the impeller,th wet end seal and the fan wheel.

Warranty
2-year Tubs Parts warranty
