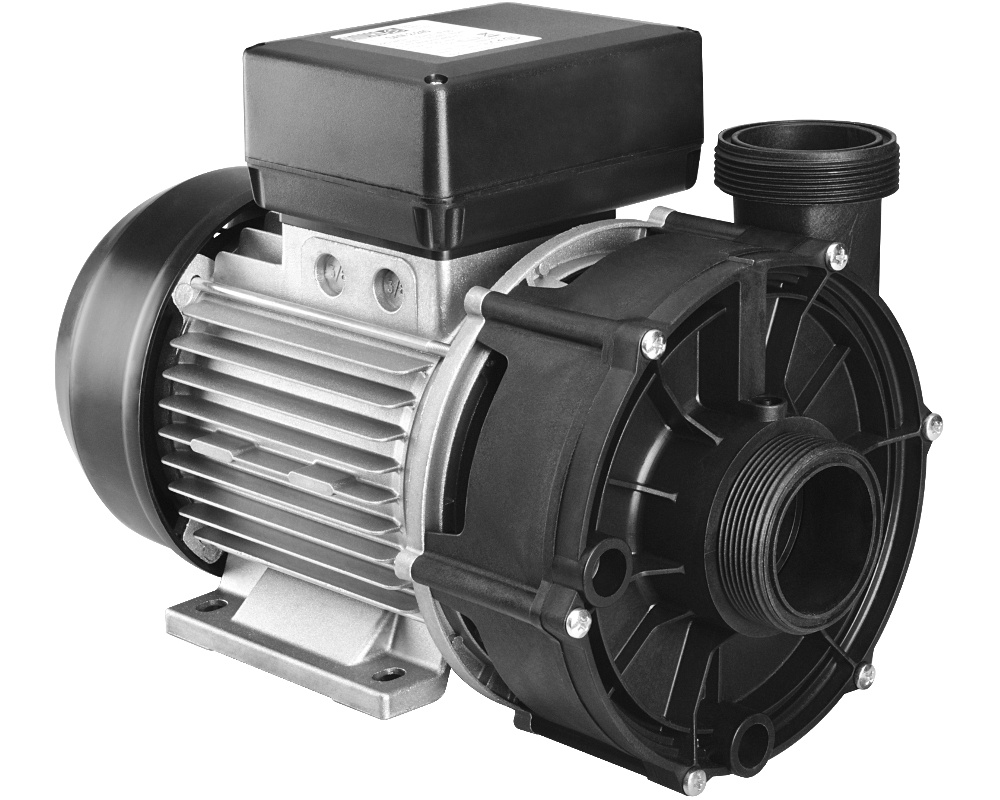

Simaco SAM2-240 single-speed pump

The Simaco SAM2-240 single-speed pump is installed in many Teuco, Spaform and Jean Desjoyaux spa models, among others, and is used for the massage jets.

Simaco pumps are known for their quiet operation.

We also offer the 200 model from Simaco's SAM2 series, which is slightly less powerful.

Dimensions (without the unions)
Length: 336 mm
Width: 193 mm
Height: 228 mm

Technical specifications
Power: 2,3 kW
Current : 11 A
Flow rate: 700 litres/minute

Pipe connections
Male thread with an outside diameter of 66 mm

The Simaco SAM2-240 pump is supplied with pump unions for 50 mm pipe. The union nut is also available as a spare part. You can use with a 2-inch or a 63 mm socket. Don't forget the gasket !

Cable and plug
The Simaco SAM2-240 pump comes with a cable (approx. 120 cm length) without plug. If you are replacing an existing pump, you may be able to re-use your existing power cord. You can also choose to have it pre-cabled by our team with an AMP plug or a mini J&J plug.

An in.link plug is also available, but we recommend that you keep your existing cable if it's in good condition. Your pump may indeed be defective for many reasons, but the power cable is rarely to blame.

Warranty
2-year Tubs Parts warranty

Part numbers
Simaco: SAM2-240 (also a good replacement for SAM2-180 or SAM2-200)
