SloanLED LiquaLED Multi-Zone controller

Only 3 in stock
225,00€
incl. 20% VAT
Quantity:
SloanLED LiquaLED Multi-Zone controller - Click to enlarge
SloanLED LiquaLED Multi-Zone controller - Click to enlarge
SloanLED LiquaLED Multi-Zone controller - Click to enlarge

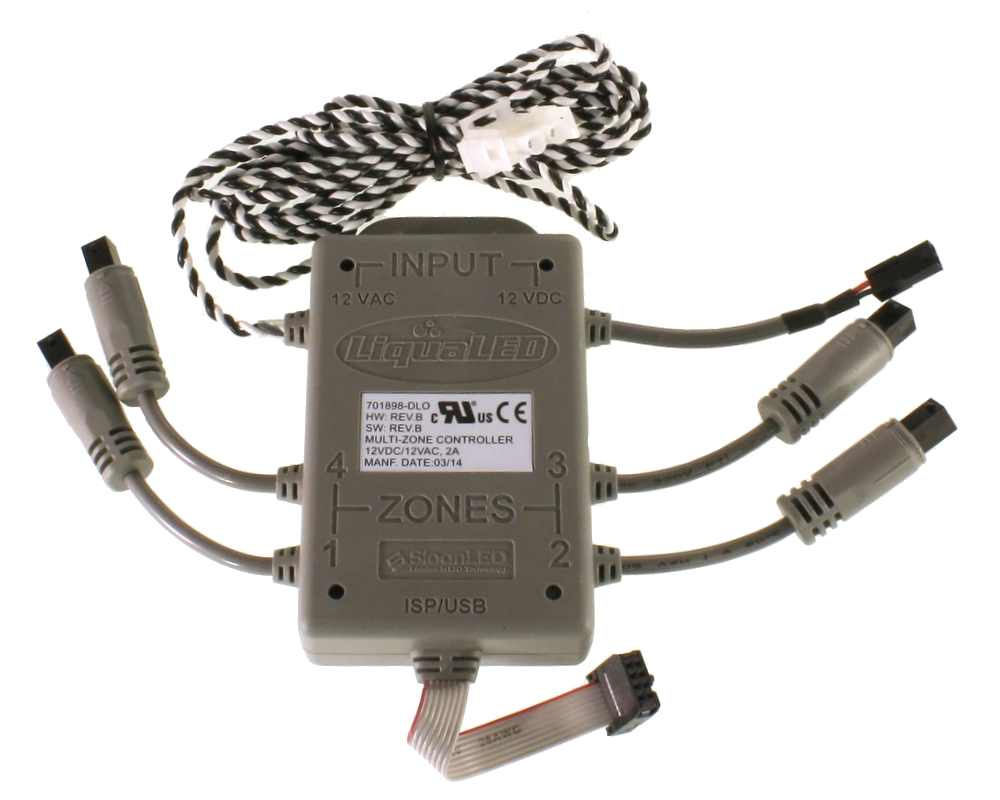

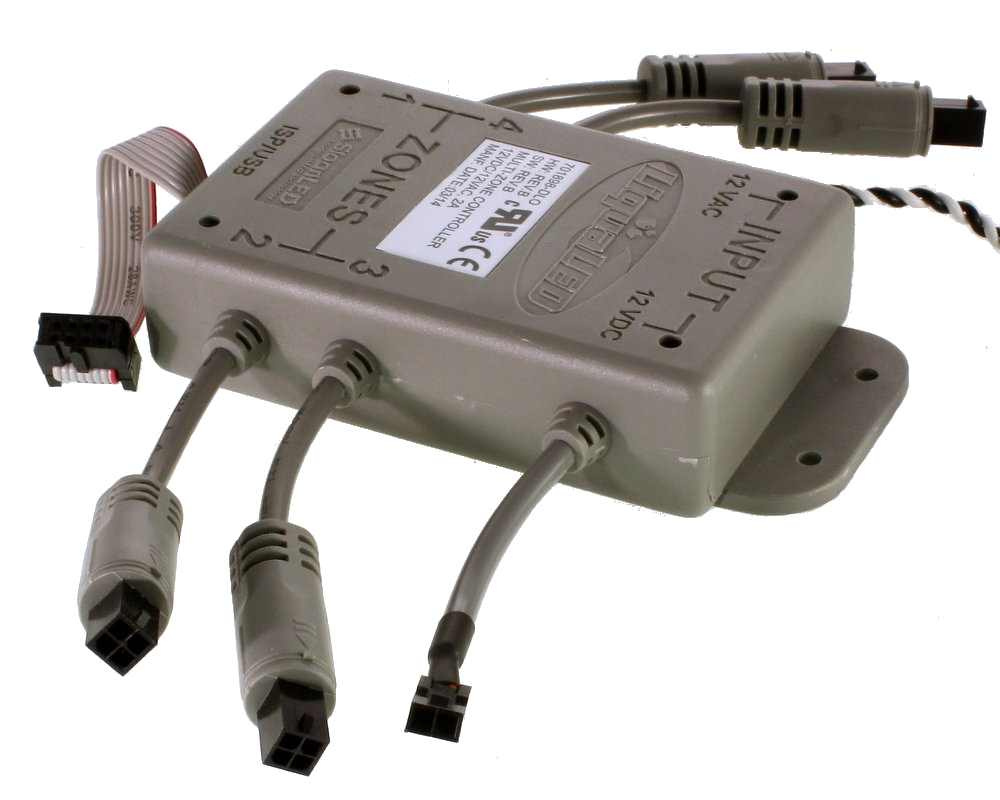

The SloanLED LiquaLED "Multi-Zone" light controller plugs into the standard 12V AC power supply found on most hot tub control systems. It is capable of managing up to 4 different spa zones. It can power up to 100 LEDs (several 2-LED or 4-LED lighting elements for example) and manages the colour transitions so that they stay synchronised across all the LEDs.

We also offer the SloanLED Control 40 controller, to which you can connect up to 40 LEDs.

Features

LiquaLED Control 40 LiquaLED Multi-Zone
Max # LEDs (Not including Clusters) 40 100
Required input voltage - AC 12V AC from Spa Pack 12V AC from Spa Pack
Optional input voltage - DC No External DC Supply Required 12V DC from External Supply (>1 Amp)
Output voltage - DC 12V DC 12V DC
Typical Max Output Current / Power 1 Amp / 12 Watts 2 Amps / 24 Watts
On/Off Control Spa pack light on/off switch on top-side control panel Momentary Selections on top-side Spa Pack Light Control


Dimensions
97 x 65 x 25 mm

Part numbers
SloanLED: 701898-DLO
Sunrise Spas : R6053324
