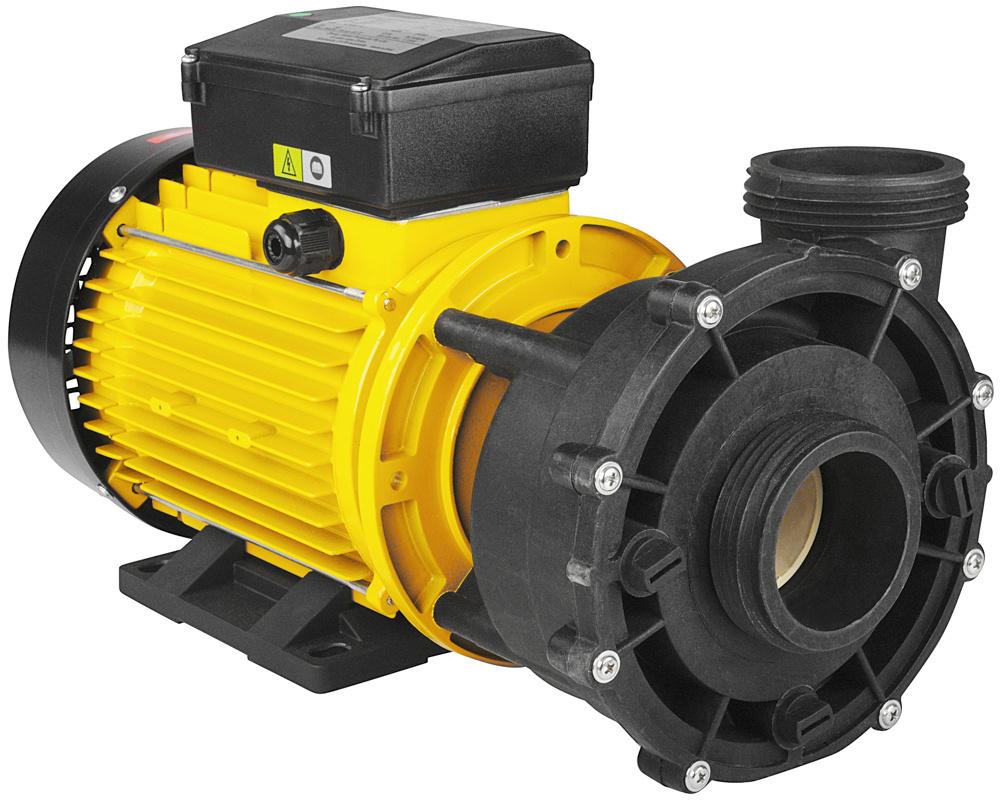

SpaPower Maxiflow 2-speed pump

The Spa Power two-speed pump is used in Monarch, Spa France (Procopi) and Sapphire (DSpa) hot tubs.

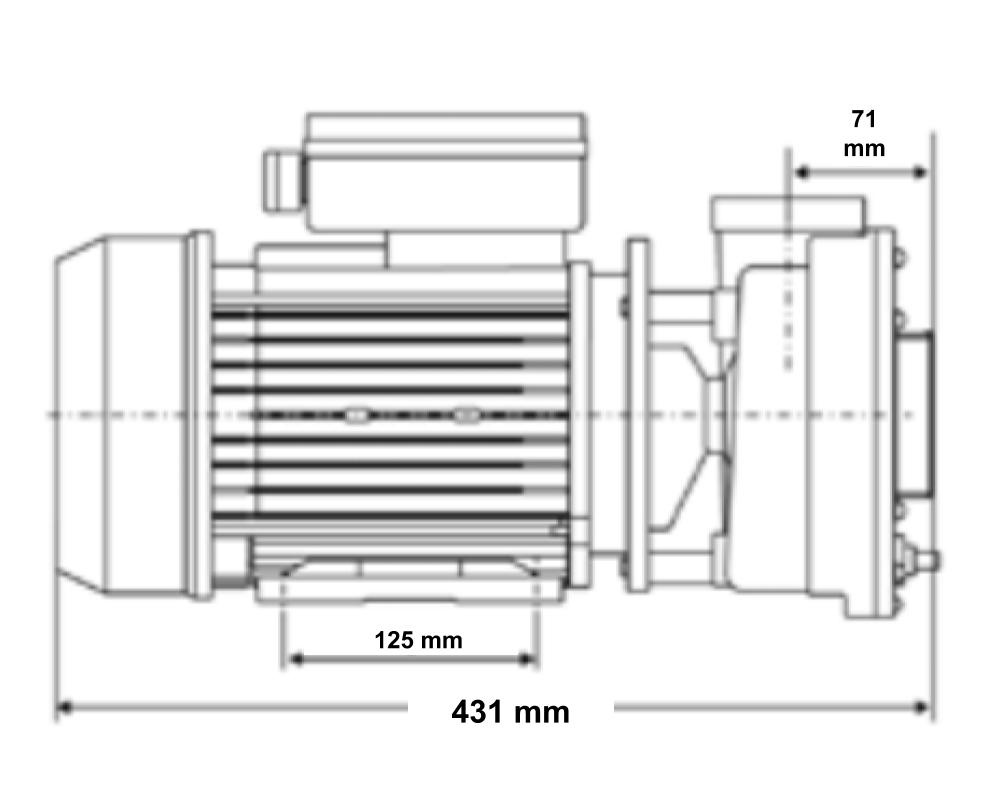

Dimensions
Length: 431 mm
Width: 202 mm
Height: 235 mm

Pipe connections
This pump can only be connected using pump unions for 2-inch pipes by the brand Davey.

Technical specifications
This SpaPower Maxiflow pump is available in two power ratings

2,5 HP: 1,85 kW high speed (0,40 kW low speed) / Current 8.6 A (2.8 A)
3,0 HP: 2,2 kW high speed (0,45 kW low speed) / Current 10 A (3,2 A)

Cable and plug
This pump is delivered pre-cabled with an AMP plug (length 280 cm). You can also choose to have it pre-cabled by our team with a mini J&J plug or an in.link plug (length 100 cm).

Capacitors
(just in case you need to replace one)
2.5 HP: 40µF

Warranty
2-year Tubs Parts warranty

Part numbers
2,5 HP: QB2502-AMP
3,0 HP: QB3002-AMP

Plug types

AMP plug

J&J plug

in.link plug
