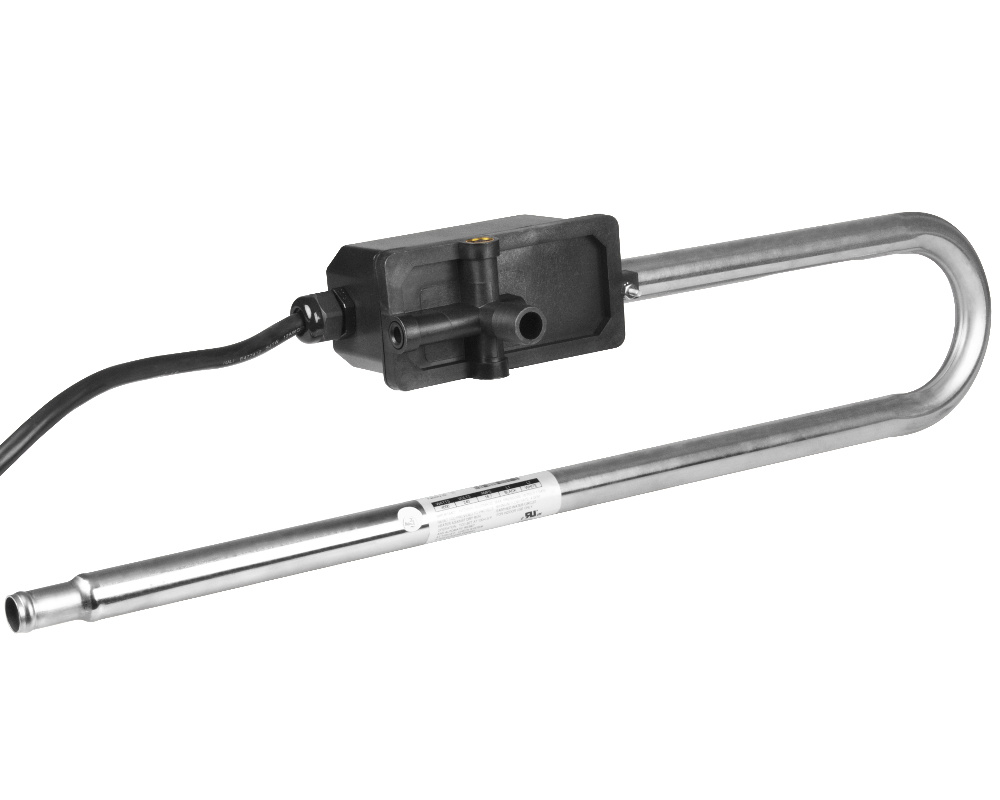

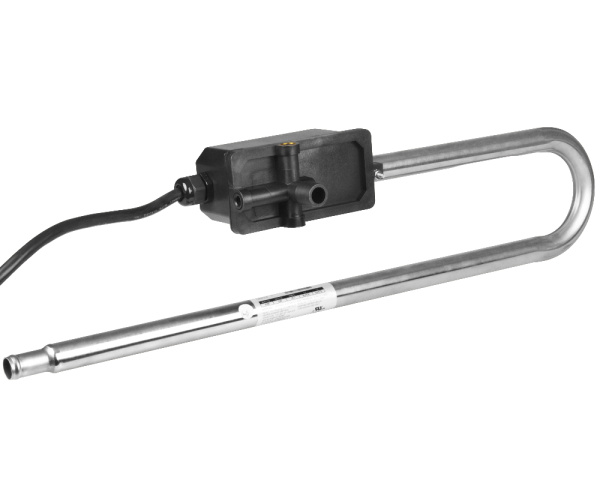

Sundance / Jacuzzi heater - 6500-063

This 4 kW low-flow heater is installed on several models of hot tub manufactured by Jacuzzi and Sundance Spas.

• Jacuzzi : 2002+ J-310/J-315, 2004 and 2008+ J-325
• Sundance Spas : 2008+ Dover B. 2004-2007 Metro C. 2003-2005 Lagunas D. 2000-2007 Solo, 2000-2006 Caprio, 2000-2003 Tango

The ends of the heater push-fit inside 3/4-inch pipes.

It also replaces some Watkins / Hot Spring models that use a low-flow Laing heater.

Some older versions of this heater have a built-in pressure switch, and a little control cable that connects to the motherboard of the hot tub control system, to tell the system that there is water flowing through the heater. If you are replacing a heater of this type, you should plug in a jumper, in place of the pressure switch cable, on the motherboard.

We also recommend that you install a flow switch at the exit of this heater, even if the old heater that you are replacing uses a pressure switch to detect the water flow.

You can, however, install a pressure switch if you really insist. You just need to remove a little plug on the heater beforehand, using allen key. Don't forget to use Teflon tape when installing the pressure switch!

Dimensions
Width: 585 mm
Height: 225 mm

Technical specifications
Power : 4 kW
Voltage : 220-240V 50Hz
Current : 16.7A

Warranty
2-year Tubs Parts warranty

Part numbers
Therm Products : C3226-1, C3226-1A
Sundance Spas et Jacuzzi : 6500-063
Balboa : 58375
Laing : 6518.1

Also replaces SEH-4300-NHCW-6699
