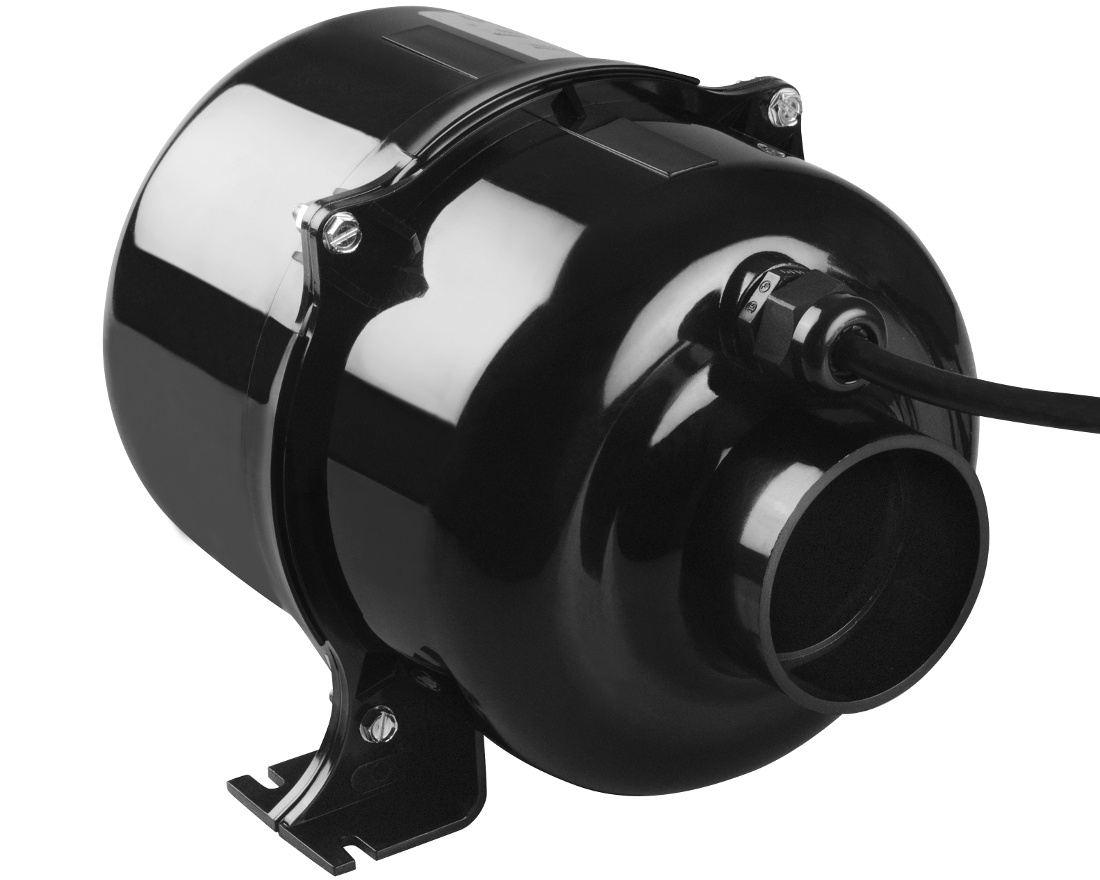

Ultra 9000 blower - 1.5 HP
The Ultra 9000 1.5HP air blower can be used to replace most models of cylindrical blower found in portable spas. It has a 2-inch female exit (60 mm inside diameter), which can be easily adapted for other pipe sizes:
- 1.5" connection, use a 2"M to 1.5"F reducer
- 63 mm connection, use a 2"M to 63 mm F adapter
- 50 mm connection, use a 2"M to 1.5"F reducer and a 1.5"M to 50 mm F adapter
The Ultra 9000 is also available with a power output of 1 HP and 2 HP.
Technical specifications
Power : 1.5 HP (950W)
Amps : 3.2 A
Voltage : 220-240V
Max. air flow rate : 3.17m³/min
Dimensions
Length: 280 mm
Width: 195 mm
Height: 185 mm
Connection
Inside diameter of the air exit: 60 mm (for 2-inch pipe)
You do not need to glue the pipe to the blower. You can simply plug it in, or add a screw to hold it in place if necessary.
Cable and plug
The blower is pre-cabled with an AMP plug. For a Mini J&J connection, an additional adapter is required.
Warranty
2-year Tubs Parts warranty
Note that the 2-year warranty does not apply to the carbon brush, also known as a motor brush, a graphite bonding agent that conducts the electrical current between stationary and rotating wires inside the motor. The carbon brush is a wearing part with a life expectancy of approximately 1500 hours.
Part numbers
Air Supply of the Future : 3913220-A
Plug types
AMP plug
J&J plug
in.link plug
