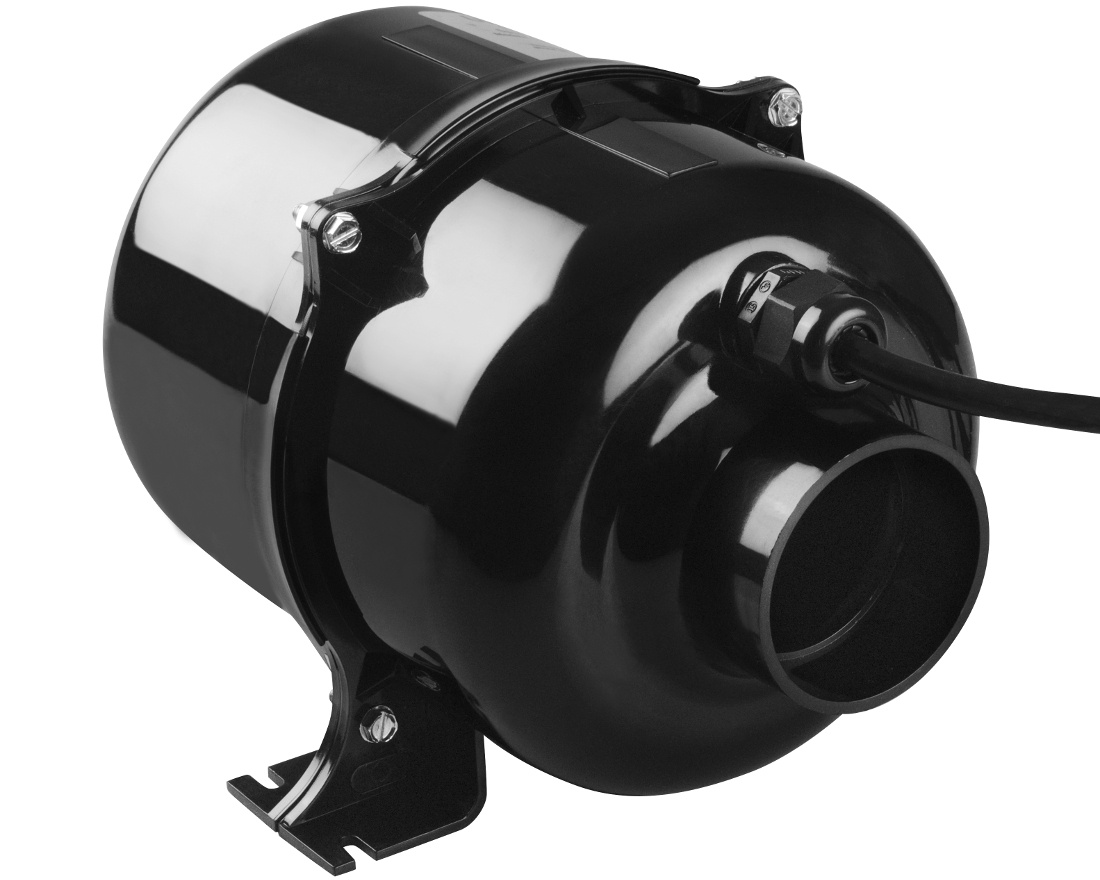

Ultra 9000 blower - 1 HP

The Ultra 9000 1HP air blower can be used to replace most cylindrical blowers found in portable spas. It has a 2-inch female exit (60 mm inside diameter), which can be easily adapted for other pipe sizes.

The Ultra 9000 is also available with a power output of 1.5 HP and 2 HP.

Technical specifications
Power: 1 HP (600W)
Amps: 2.5 A
Voltage: 220-240V
Maximum air flow rate: 2.9 m³/min

Dimensions
Length: 280 mm
Width: 195 mm
Height: 185 mm

Pipe connection
Inner diameter of the air exit: 60 mm (for 2-inch pipe)
You do not need to glue the pipe to the blower. You can simply plug it in, or add a screw to hold it in place if necessary.

Cable and plug
The blower is pre-cabled with an AMP plug. For a Mini J&J connection, an additional adapter is required.

Warranty
2-year Tubs Parts warranty

Note that the 2-year warranty does not apply to the carbon brush, also known as a motor brush, a graphite bonding agent that conducts the electrical current between stationary and rotating wires inside the motor. The carbon brush is a wearing part with a life expectancy of approximately 1500 hours.

Part numbers
1.Air Supply of the Future : 3910220-A

Plug types

AMP plug

J&J plug

in.link plug
