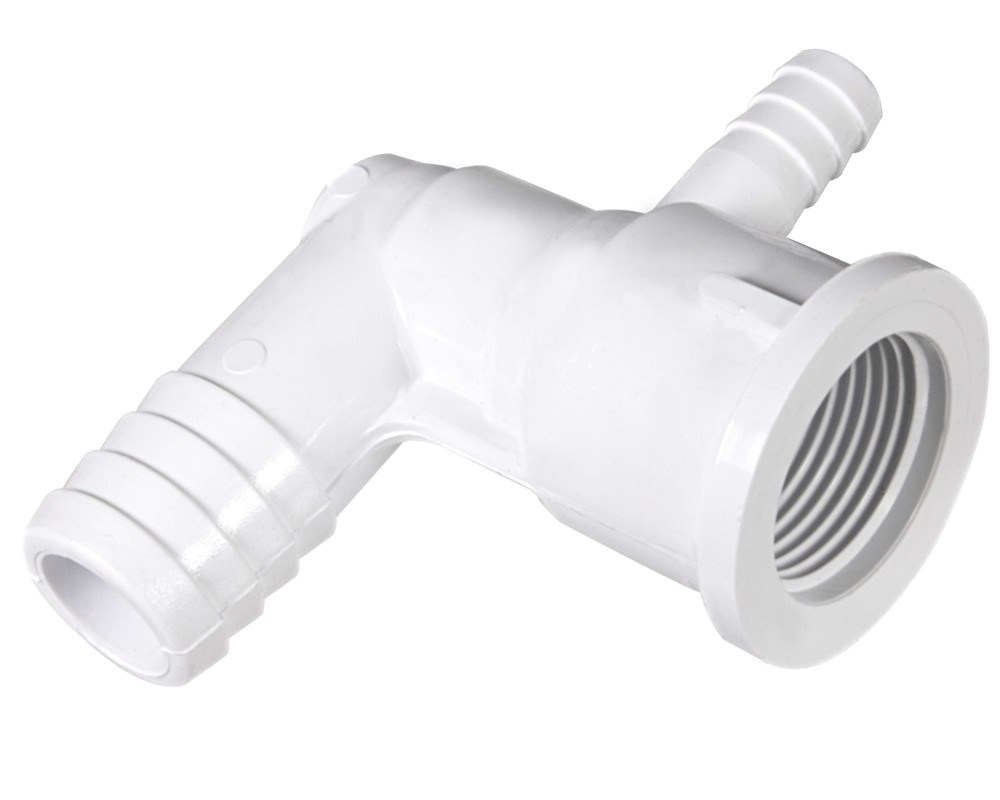

Waterway Cluster Jet Ell socket, 3/4" M+ connection
This Waterway Cluster jet socket connects to 3/4" flexible pipe for the water entry, and has a barbed connector for 3/8-inch pipe for air, which is sucked in by the Venturi effect.
You can srew any Cluster Jet into the socket, including the Cluster Roto.
To ensure a watertight seal, we recommend using a gasket and acetone-free silicone between the socket and the inner wall of the tank.
Use a cap on the 3/8 inch connector if you do not want to have venturi air intake.
Dimensions
Inside diameter of the thread : 23 mm
Outside diameter of the face : 38 mm
Outside diameter of barb fitting: 21 mm, to be inserted in a 3/4-inch pipe
Drill diameter: 25 mm
Length : 62 mm
Pipe connections
Water : Barbed connection for 3/4-inch flexible pipe
Air : Barbed connection for 3/8-inch flexible pipe
Part numbers
Waterway : 212-0090
Sunrise Spas : R3035306
