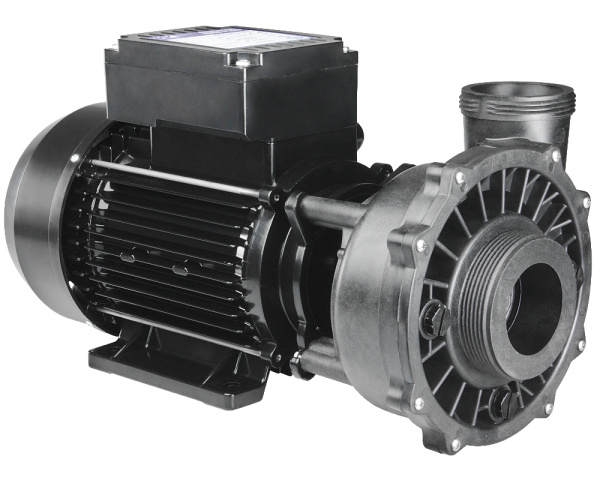

Waterway Executive single-speed pump
The Waterway Executive Euro pump is used by many major spa brands. This pump is a single-speed pump, used to run massage jets. It has an EMG Italian-made water-resistant motor and a high-performance wet end.

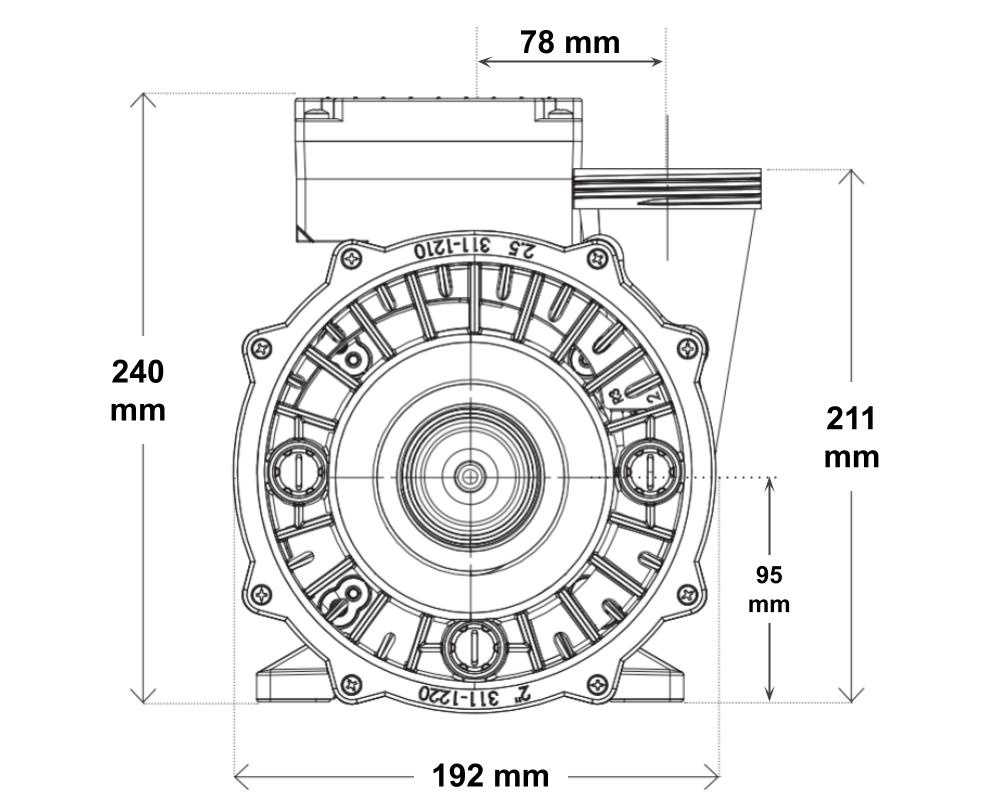

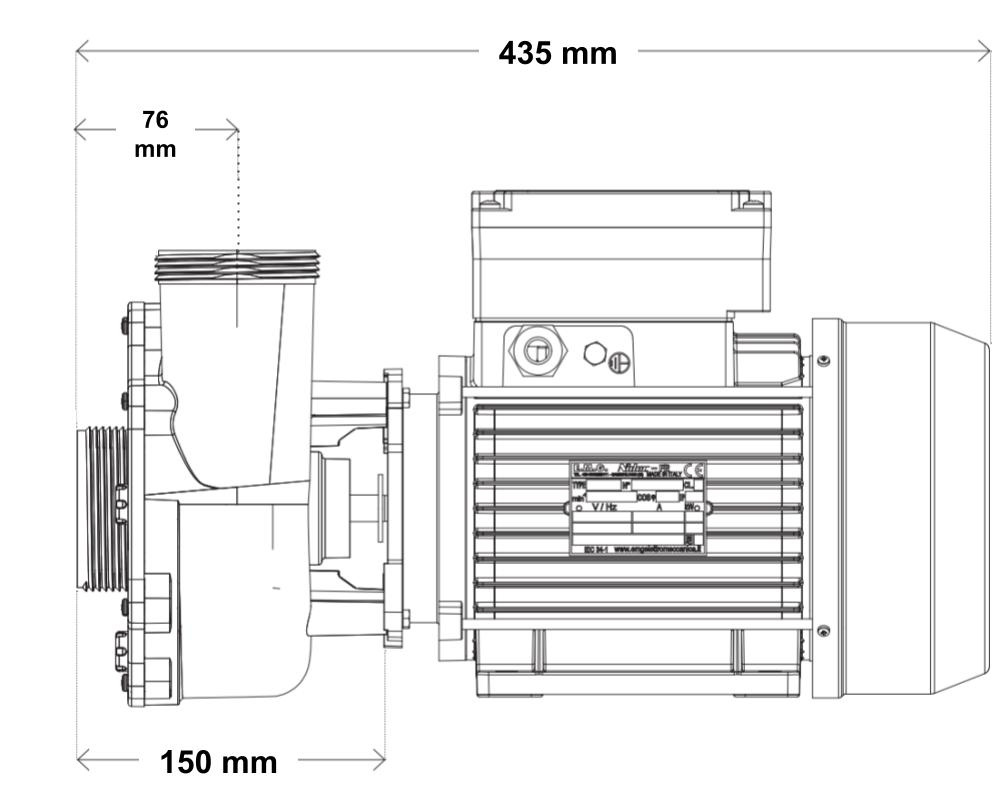

Dimensions
Length: 435 mm
Width: 210 mm
Height: 240 mm
Technical specifications

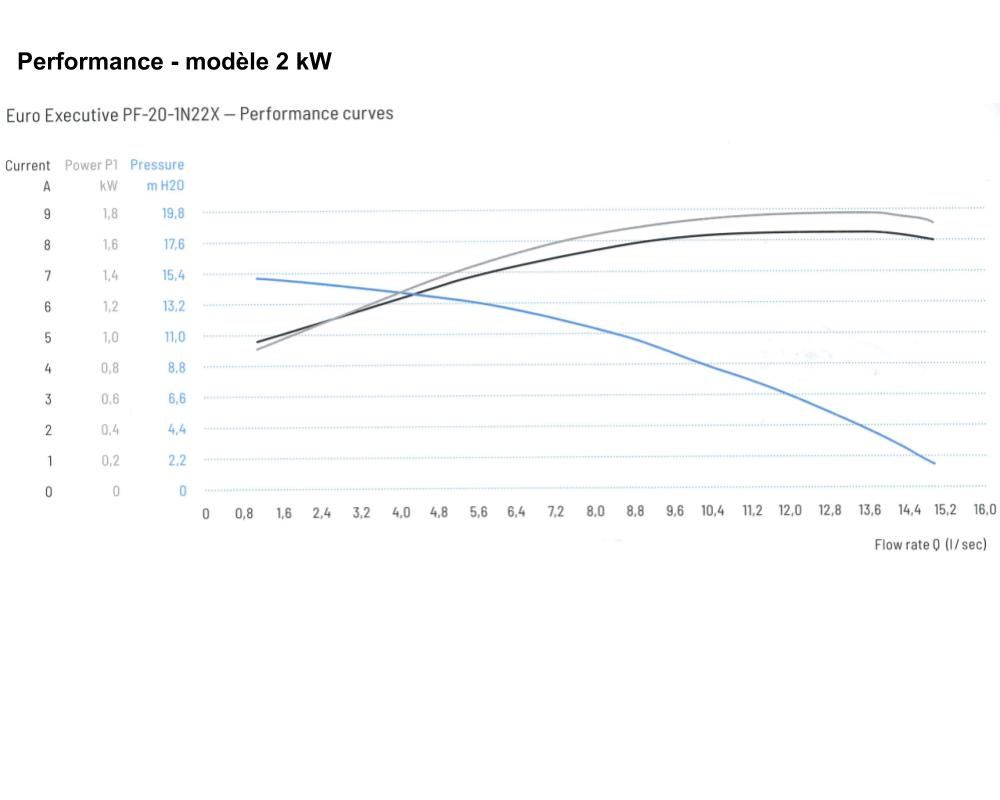

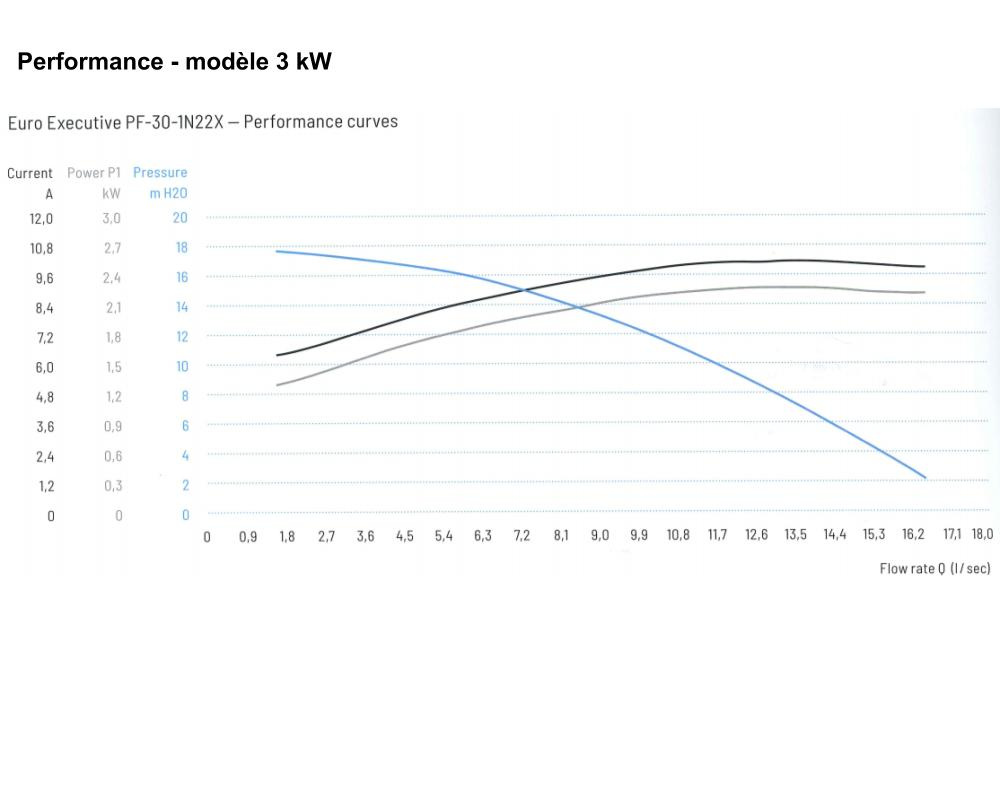

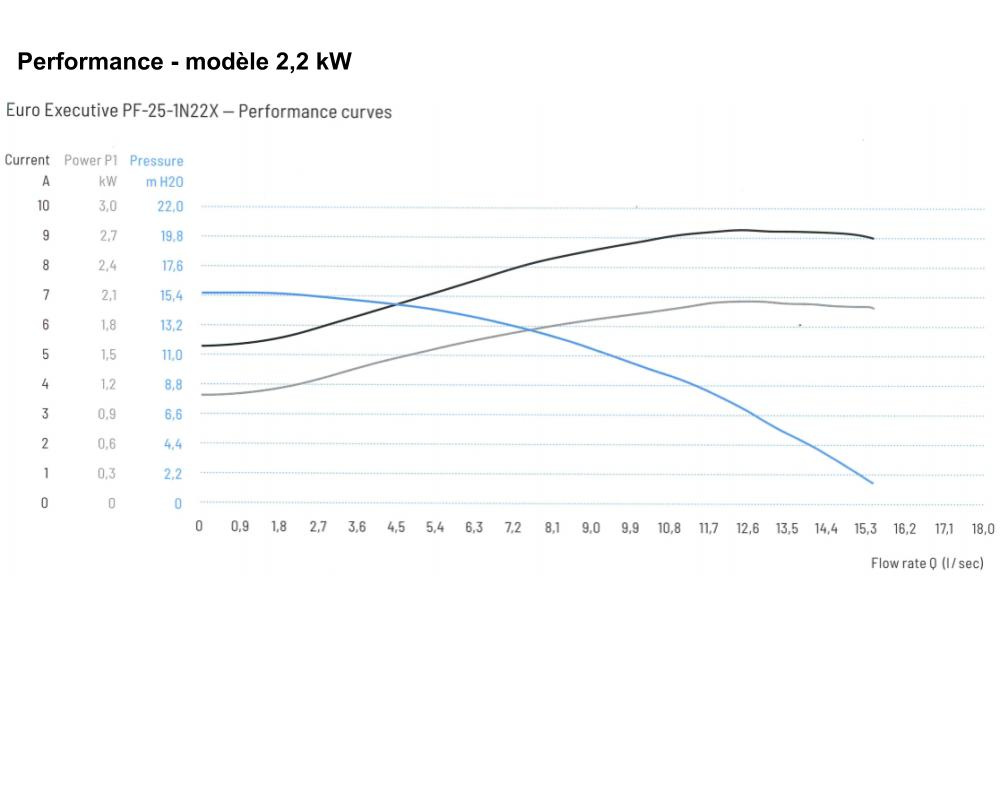

This Waterway Executive Euro pump is available in three power ratings :
- Power 2 kW / Current 9 A
- Power 2,2 kW / Current 10,2 A
- Power 3 kW / Current 12,4 A
Connections
Outflow: male threaded with a 78 mm outside diameter
Intake: male threaded, either with a 78 mm or a 94 mm outside diameter
This pump is normally connected to 2-inch pipe.
Cables and plugs
The Waterway Executive pump is delivered without plug and cable. If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.
You can also choose to have the pump pre-cabled by our team with an AMP plug or a mini J&J plug. or an in.link plug .
An in.link plug (220 cm long) is also available, but we recommend that you keep your existing cable if it's in good condition. Your pump may indeed be defective for many reasons, but the power cable is rarely to blame.
Capacitors (in case you need to replace it)
- 25µF for the 2 HP version
- 40µF for the 3 HP version.
Warranty
2-year Tubs Parts warranty
Waterway part numbers
2 kW / 78 mm: PF-20-1N22X, 3R10850-0D
2 kW / 94 mm: PF-20-1N22X25
2,5 kW / 78 mm: PF-25-1N22X
2,5 kW / 94 mm: PF-25-1N22X25
3 kW / 78 mm: PF-30-1N22X, 3R11250-0D, PF-30-1N22C4
3 kW / 94 mm: PF-30-1N22X25

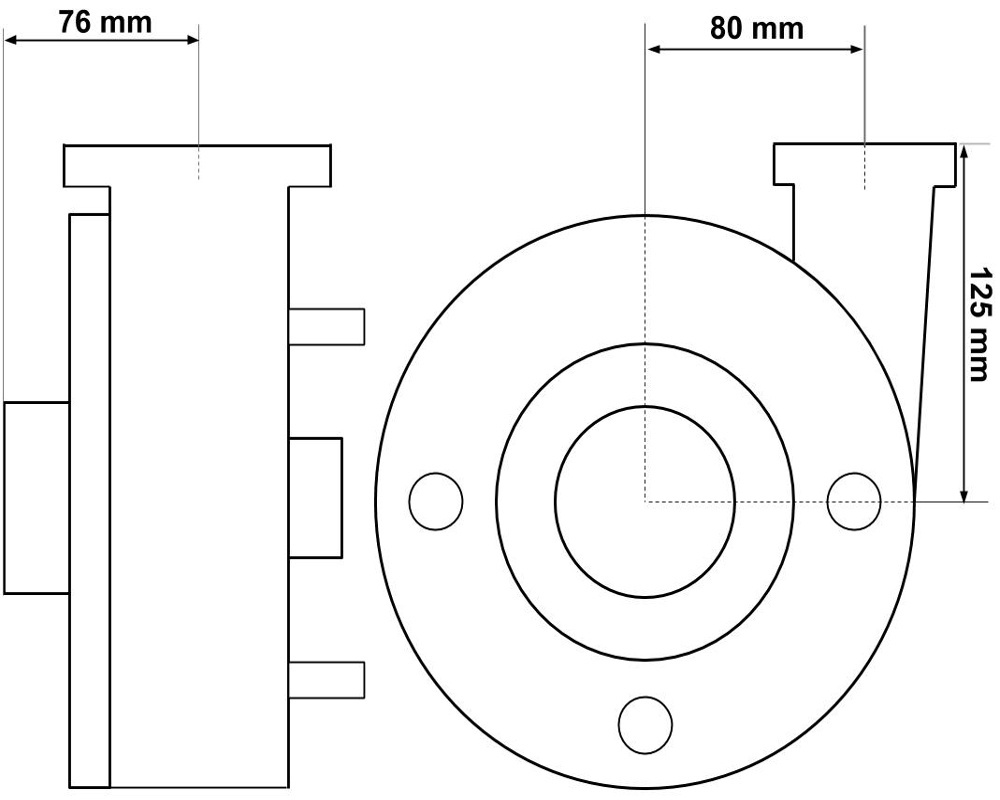

Wet end orientation
Standard exit
Exit to left
Exit to right
Plug types
AMP plug
J&J plug
in.link plug
