Waterway Futura 3 3-speed pump

Available in 1 week
690,00€
incl. 20% VAT
Quantity:
Waterway Futura 3 3-speed pump - Click to enlarge
Waterway Futura 3 3-speed pump - Click to enlarge
Waterway Futura 3 3-speed pump - Click to enlarge
Waterway Futura 3 3-speed pump - Click to enlarge
Waterway Futura 3 3-speed pump - Click to enlarge
Waterway Futura 3 3-speed pump - Click to enlarge

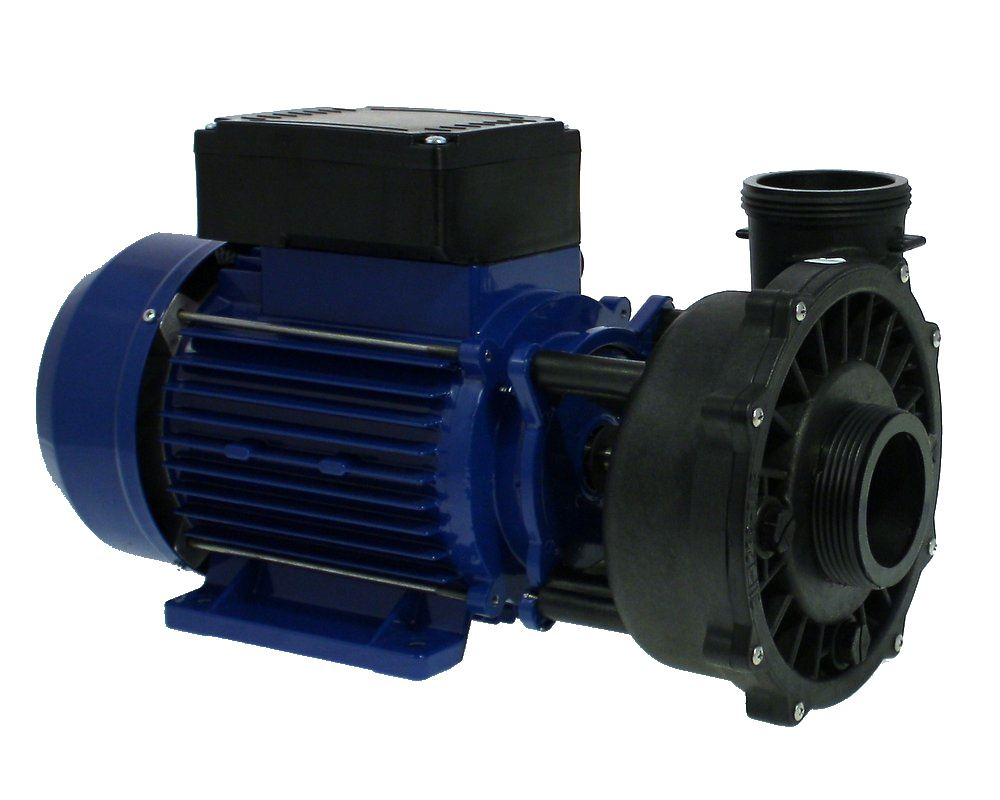

The clever, 3-speed Waterway Futura 3 massage pump is controlled by multiple presses of the ON/OFF button from the spa control panel. Each time you turn the pump off and then on again it will switch to the next speed.

The Futura 3 is equipped with an EMG Italian-made water-resistant motor and the same high-performance wet end as the Waterway Executive.

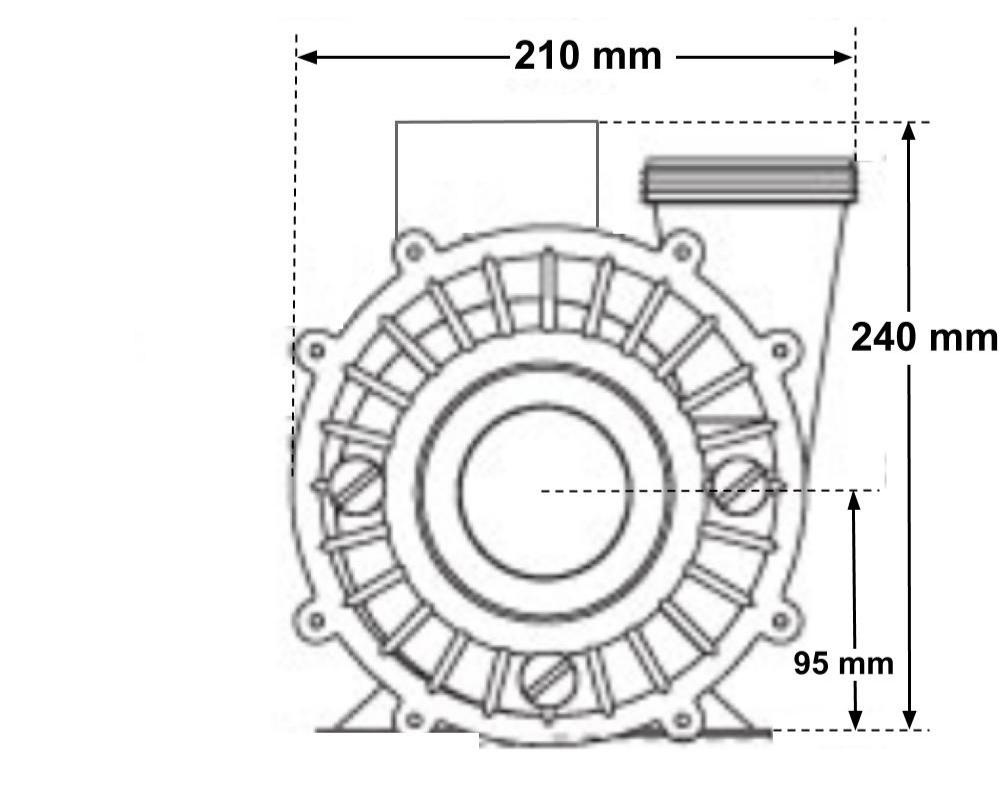

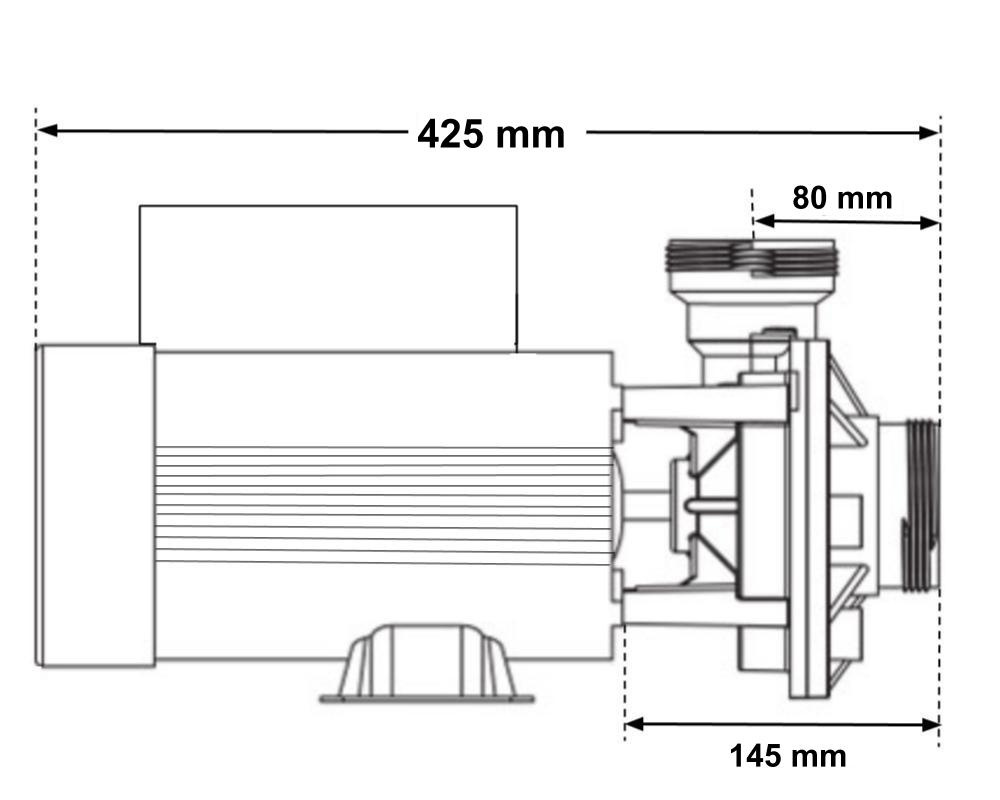

Dimensions (without pump unions)
Length: 425 mm
Width: 210 mm
Height: 240 mm

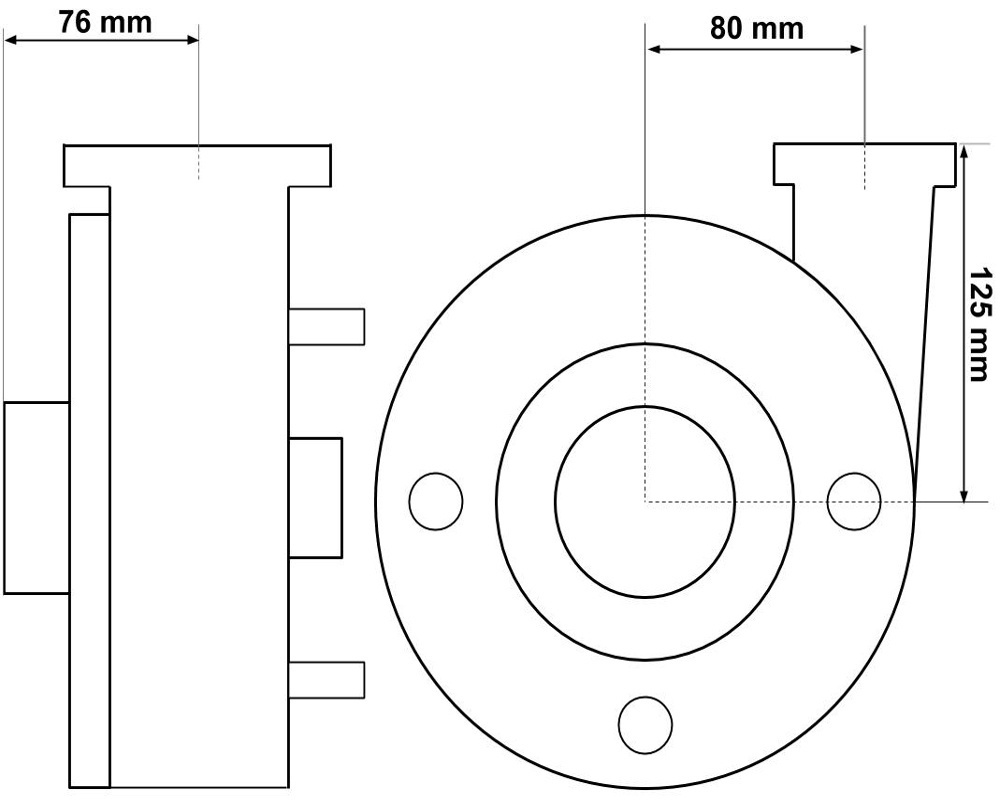

Connections
Outflow: male thread with a 78 mm outside diameter.
Intake: male thread with an outside diameter of either 78 mm or 94 mm (choose which you need at the bottom of the page).
This pump is usually connected to 2-inch pipe.

Technical specifications
Power: 0.32 kW / 1.0 kW / 1.55 kW
Current: 2.34 A / 4.7 A / 7.9 A

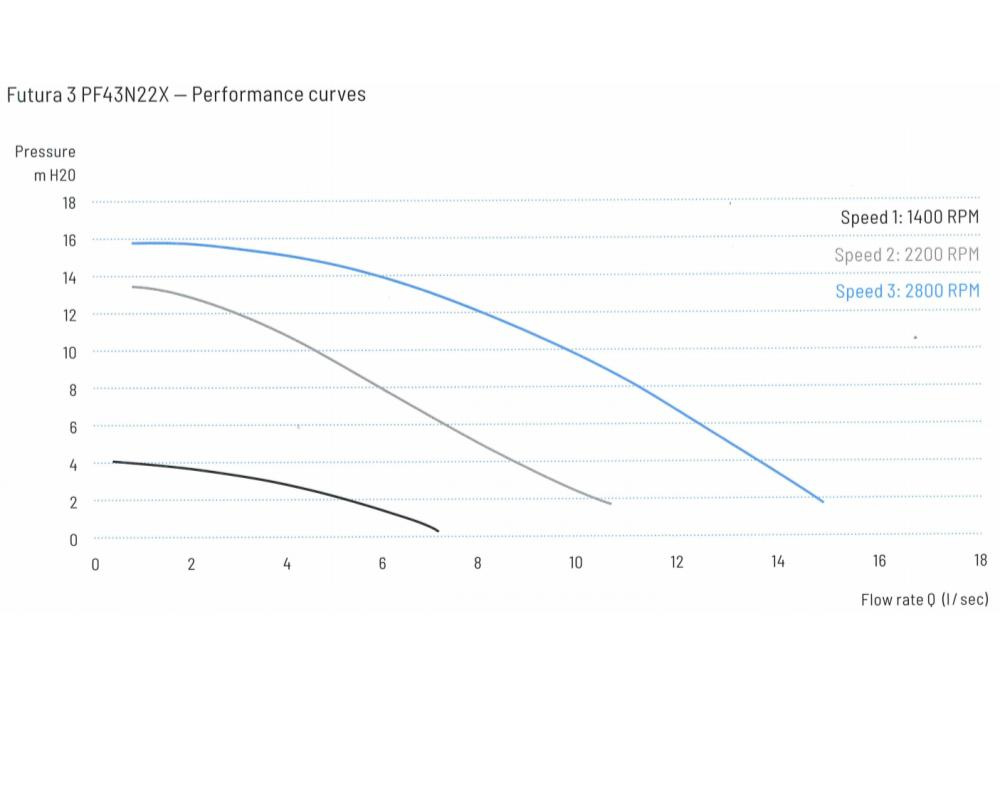

Maximum flow rate: 960 litres/minute

Cable and plug
The Waterway Futura 3 pump is delivered without plug and cable. If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.

You can also choose to have the pump pre-cabled by our team with an AMP plug or a mini J&J plug.

An in.link plug (220 cm long) is also available, but we recommend that you keep your existing cable if it's in good condition. Your pump may indeed be defective for many reasons, but the power cable is rarely to blame.

Warranty
2-year Tubs Parts warranty

Part numbers
Waterway : PF43N22XAE

Wet end orientation

Standard exit

Standard exit

Exit to left

Exit to left

Exit to right

Exit to right

Plug types

AMP plug

AMP plug

J&J plug

J&J plug

in.link plug

in.link plug
