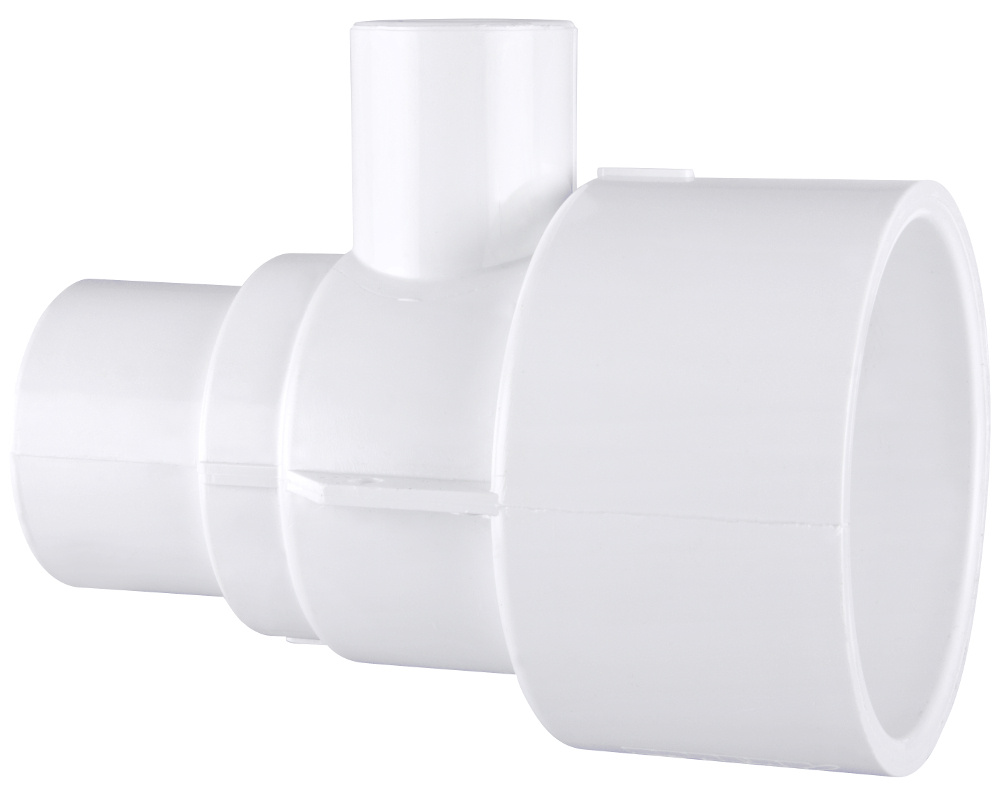

Waterway Gunite straight body

This straight jet body is part of the Waterway Mini Storm, Poly Storm, Power Storm and Poly Jet Gunite jet assemblies, designed for concrete spas.

The complete Poly Storm Gunite jet assembly is also available.

Dimensions
Total length: 136 mm
Face diameter (internal) : 73 mm, for 2.5" pipe.
Face diameter (external): 85 mm

Water pipe connection
Internal diameter : 33 mm, to connect a 1" pipe.
External diameter : 48 mm, to connect a 1.5" pipe using a F/F connector.

Air pipe connection
Internal diameter : 21 mm, to connect a 1/2" pipe.
External diameter : 33 mm, to connect a 1" pipe using a F/F connector.

Part numbers
Waterway: 211-3040
