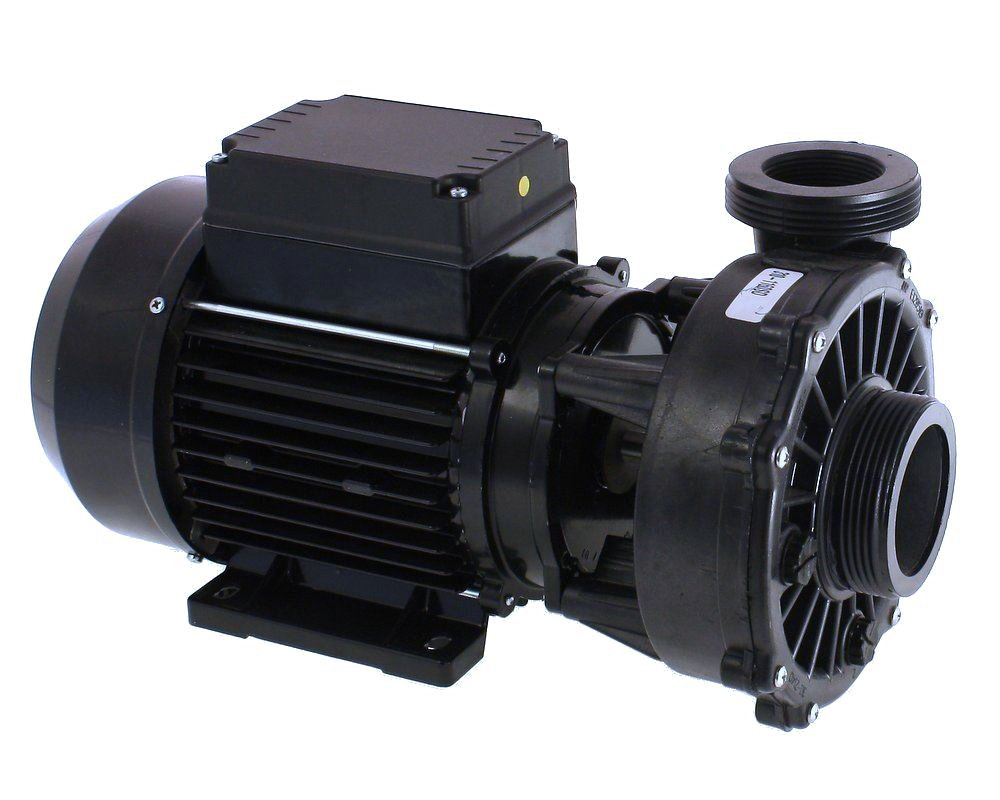

Waterway Hi-Flo single-speed pump
This single-speed Waterway Hi-Flo massage pump is used by several major spa brands. It has an EMG Italian-made water-resistant motor and a high-performance wet end.
We also offer a single-speed version of this pump.

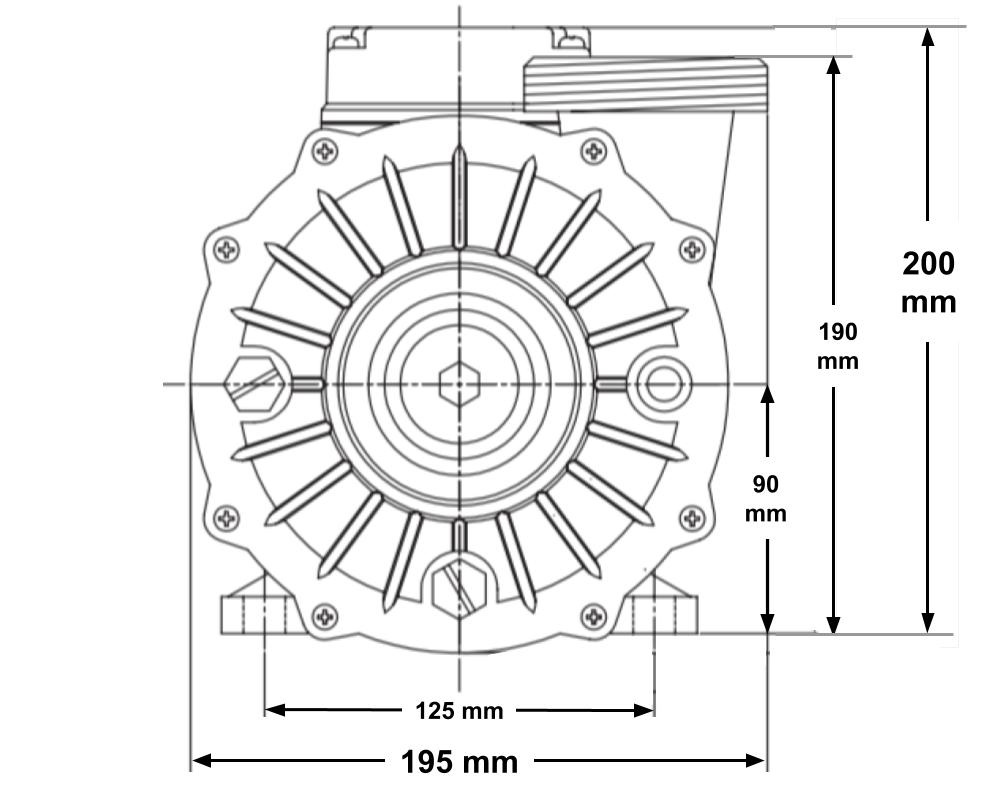

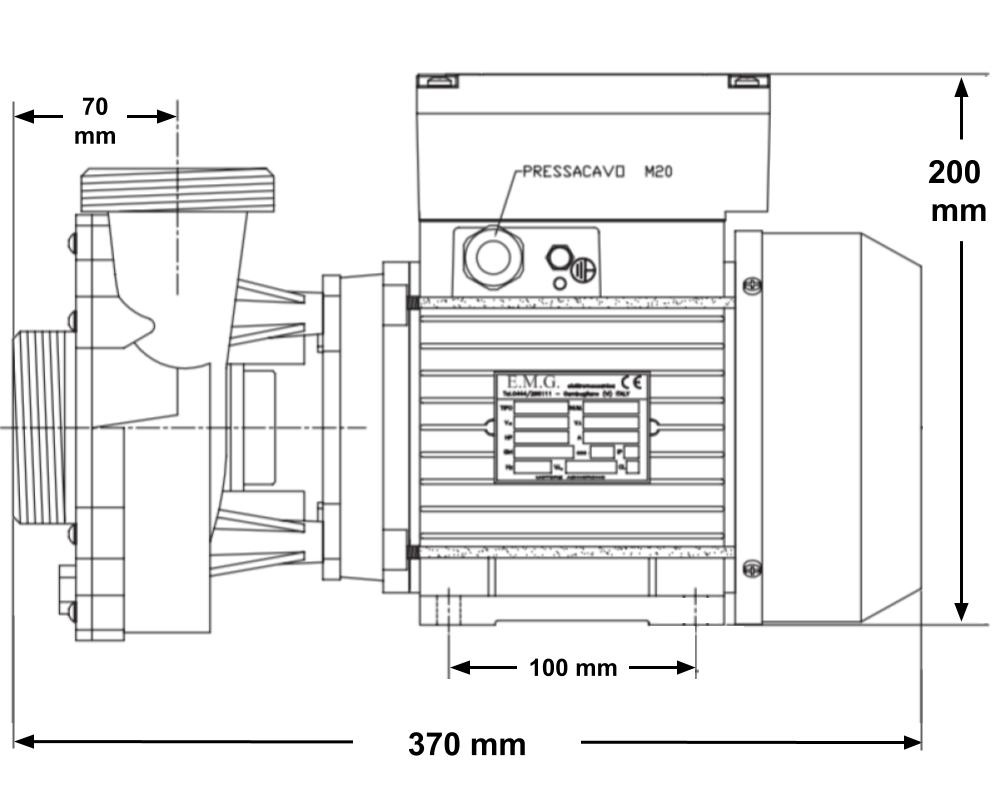

Dimensions (without pump unions)
Length: 370 mm
Height: 200 mm
Width: 195 mm

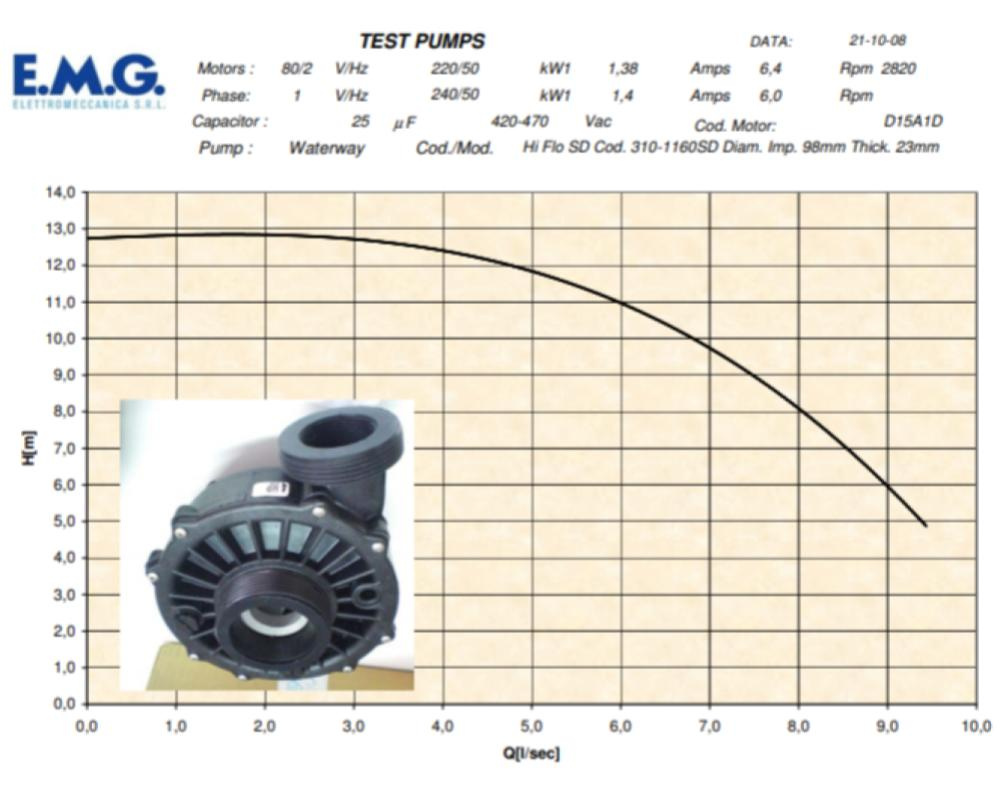

Technical specifications
Power: 1.38 kW (2.0 HP)
Current: 6,4 A
Many Waterway pumps have a sticker on the wet end that indicates a higher power rating (often 3.0 HP in the case of this pump). Ignore it! Waterway uses the same wet end in conjunction with a more powerful motor for the North American market and the sticker corresponds to the American version.
Connections
Male threaded with a 78 mm outside diameter.
This pump is normally connected to 2-inch pipes. We offer unions for 1.5-inch and 63 mm pipes
Cables and plugs
The Waterway Hi-Flo pump is delivered without plug and cable. If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.
You can also choose to have the pump pre-cabled by our team with an AMP plug or a mini J&J plug.
An in.link plug (220 cm long) is also available, but we recommend that you keep your existing cable if it's in good condition. Your pump may indeed be defective for many reasons, but the power cable is rarely to blame.
Capacitor
Just in case you need to replace it one day, it's a 25µF.
Similar pump
The Balboa / HydroAir HA440NG pump has the same motor power and thread size as the Hi-Flo, and roughly similar dimensions. If you want to replace your pump with another model, you must check the use of space and the fixing distances as pipe connection adjustments may be necessary.
Warranty
2-year Tubs Parts warranty
Part numbers
Waterway: 3411621-10CE
Wet end orientation
Standard exit
Exit to left
Exit to right
Plug types
AMP plug
J&J plug
in.link plug
