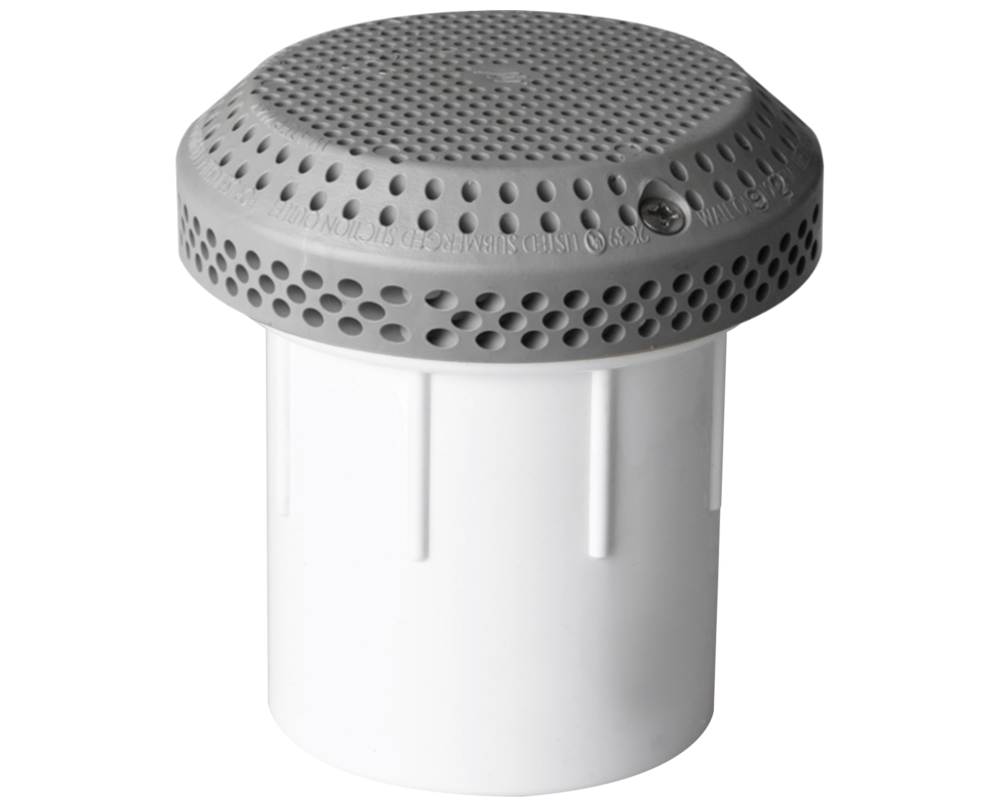

Waterway Hi-Flo 2" suction

This Waterway suction fitting is designed for portable spas and is rated for a flow of 100 GPM (22,5 m³/hour). It is equipped with with an anti-vortex grille in white or grey and connects to a 2-inch pipe.

It is designed to be mounted on the wall of the spa, not the floor.

The suction fitting is supplied with a fixing nut and a gasket, to be installed between the shell and the suction fitting.

Dimensions
Outside diameter of the face: 95 mm
Diameter of the hole in the spa shell: 60 mm

Maximum flow rate
22 m³/hour

Part numbers
Waterway : 640-3377
Gasket : 711-3250
