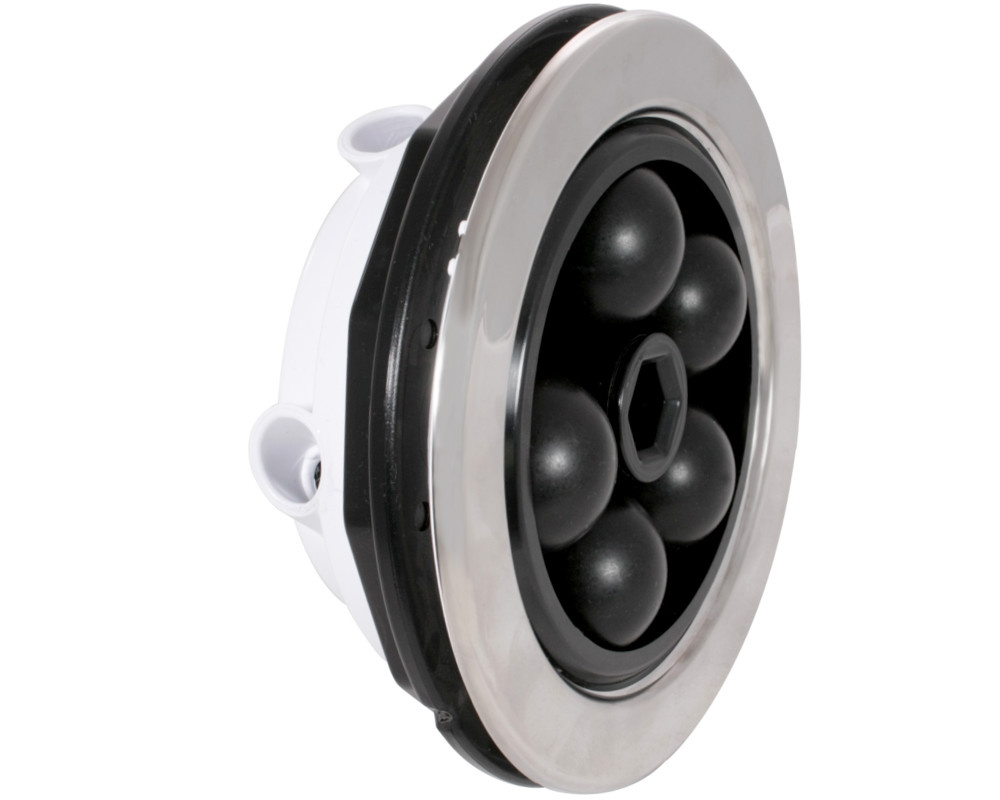

Waterway HydroBall Carousel jet
The Waterway Hydroball Carousel jet simulates a professional massage without leaving your home. It operates using water pressure and can be used for shoulder, back or foot massage therapy.
This jet uses about the same amount of water flow as a Power Storm jet (15 GPM), but it requires a lot of pressure. We therefore recommend that you plumb this jet close to the exit from the pump, and before other plumbing components such as valves or manifolds.
The roller ball carousel cartridge is removable for easy servicing.
The Hydroball Carousel jet comes as a complete kit, including the nut, gasket and fittings for the pipe connections.
Dimensions
Face diameter: 185 mm
Thickness: 68 mm
Drill diameter: 6", (152 mm)
Installation (3 possibilities)

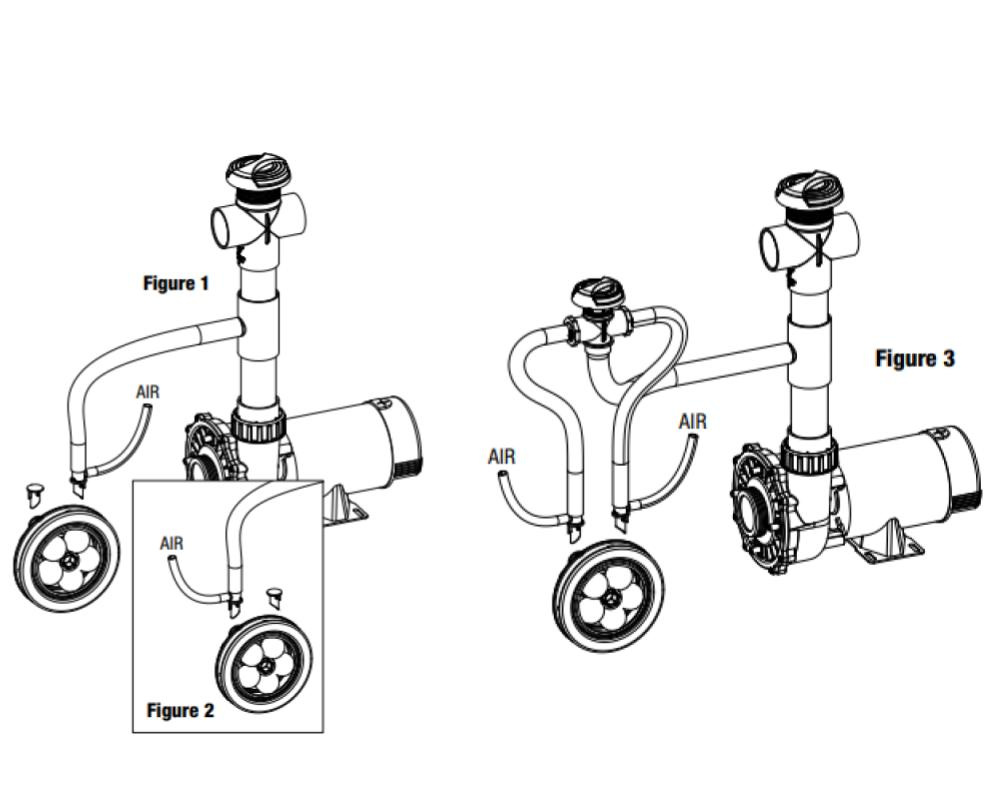

Figures 1 and 2 show the jet plumbed for a uni-directional system, with the massage balls turning either anti-clockwise (Figure 1) or clockwise (Figure 2). Figure 3 shows the jet plumbed for a bi-directional system, which allows you to change the direction of rotation using a valve.
Waterway part numbers
Full kit : 210-9800S

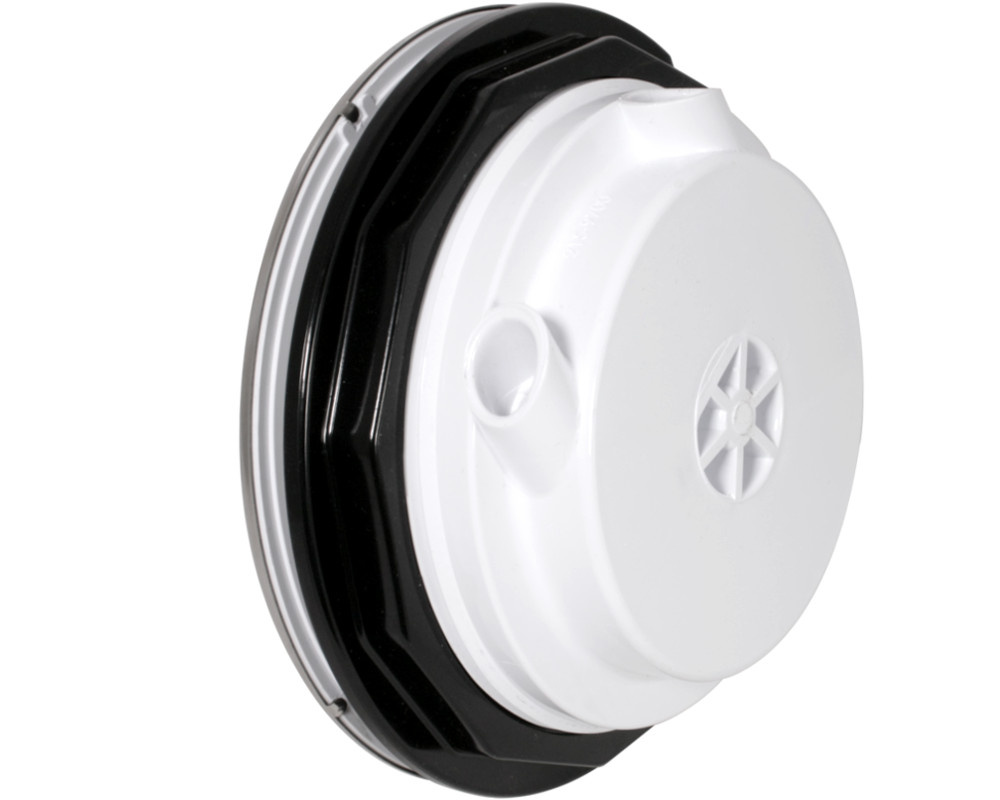

Rear element : 215-9700
Plumbing fittings for water and air entry: 425-1200
