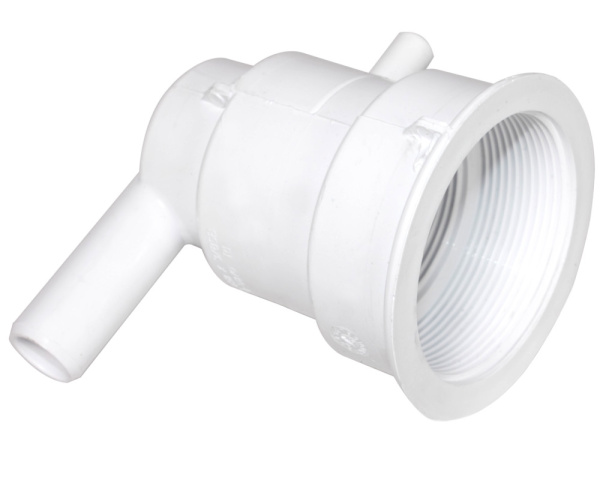

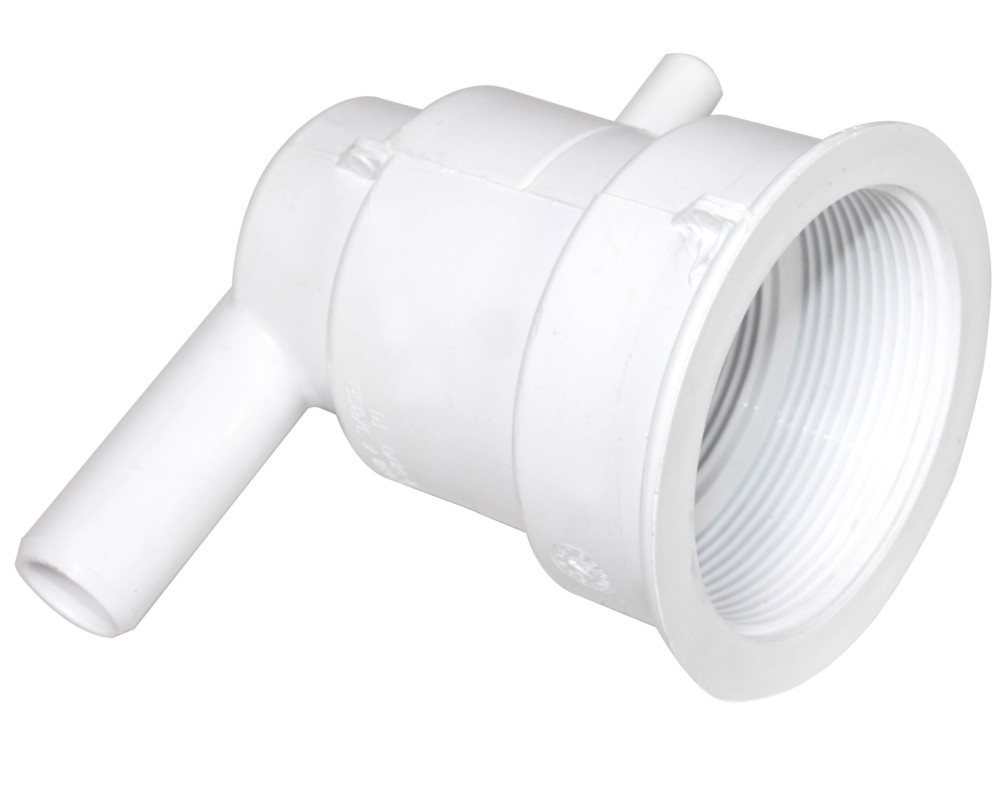

Waterway Poly Jet socket, 3/4" M+ connection

This jet socket can accept any Waterway Poly Jet, regardless of colour or massage or type.

Remember to order a wall fitting separately, available in two lengths. With the long version of the wall lead-through you can install Poly Jets on spas shells with a thickness of up to 31 mm.

The water flow through the sleeve sucks in air by means of the Venturi effect, which adds bubbles to the water jet and increases the massage power. The air inlet of each nozzle is normally connected to a common supply, and then to a valve, so that the air/water mixture in the jets can be changed. If you do not want bubbles in the water jets, plug the air inlet with this cap.

To ensure maximum watertightness on both sides of the spa shell, we recommend using this gasket or acetone-free silicone between the socket and the shell.

This socket is also available with a 3/4" F water connection, where the hose is inserted into the nozzle.

Dimensions
Length: 101 mm
Inside thread diameter: 63 mm
Outside thread diameter: 82 mm
Maximum wall thickness: 15 mm pour la version standard et de 31 mm pour la version rallongée

Pipe connections
Water: Outside diameter 20 mm, for 3/4 inch hose (the tip of the socket is inserted into the hose.)
Air: Outside diameter 10.6 mm, for 3/8 inch hose

Part numbers
Waterway: 210-5870
This part number refers to the assembly of this socket plus a standard wall fitting.
