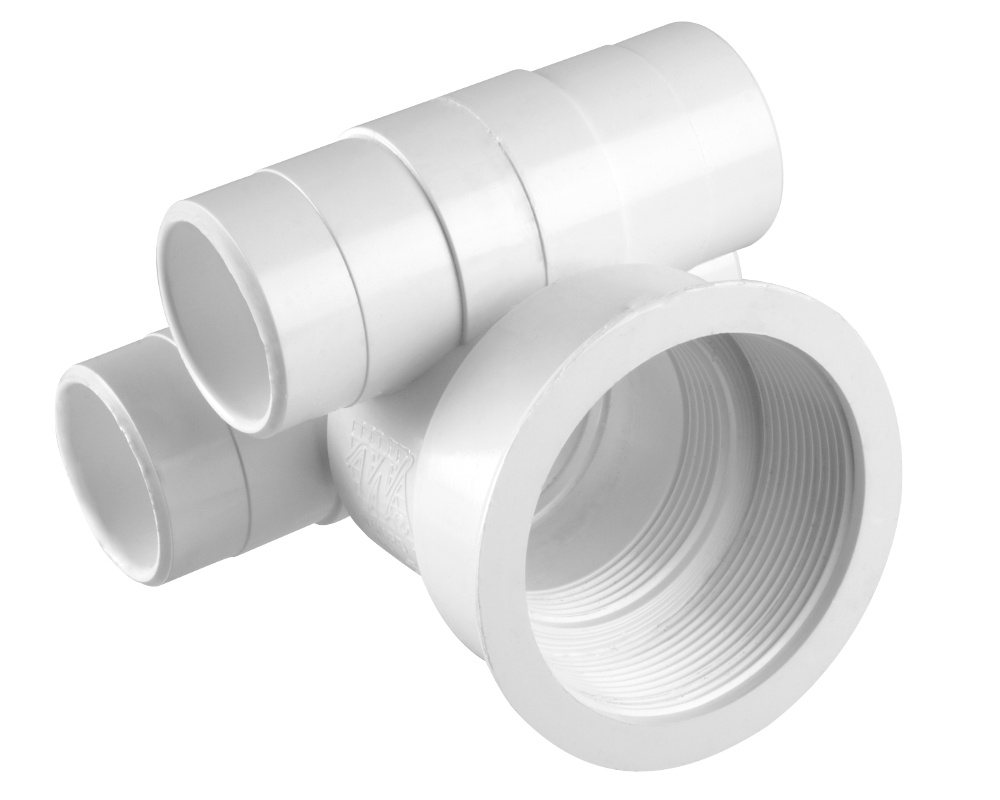

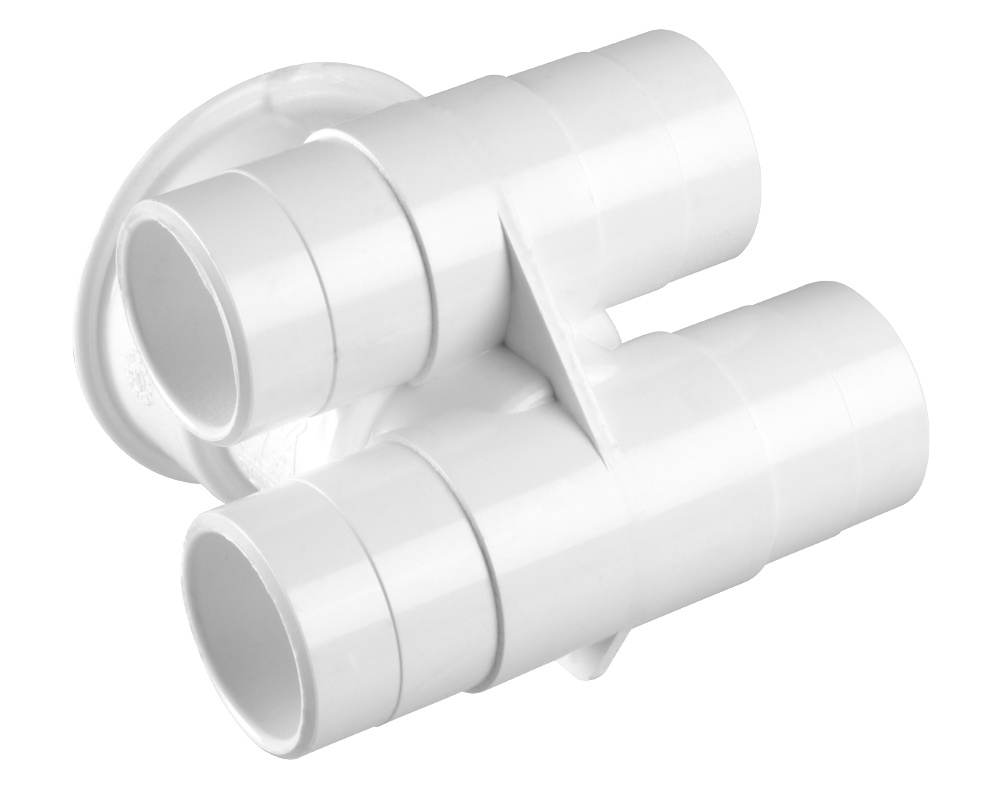

Waterway Poly Jet Tee socket, 1" connection

This Waterway Poly Jet socket has 1-inch sockets for both water and air (venturi suction). You fix it onto the shell of your hot tub, then screw the jet into place. This socket is compatible with the Poly Jet series.

These jets must be installed with either a short inside part, for acrylic and fibreglass shells that are less than 15 mm thick, or a long inside part, often installed on wooden spas, with a thickness of up to 31 mm. These parts are not provided with jet, but you can order them separately.

To ensure minimum leakage, we recommend you use a gasket and silicone-free acetone between the jet and the shell.

Tee-shaped sockets, like this one, are designed to allow you to daisy chain jets on a relatively fat pipe. This is a simple plumbing configuration for spas with a small number of jets, and makes the entire system easier to disinfect, since there is less pipe and higher flow rates. For this reason, this type of jet is often seen on commercial spas.

Dimensions
Drill diameter: 66 mm
Innter screw thread diameter: 63 mm
Length: 115 mm
Width: 100 mm
This socket attaches to 1-inch pipes, with an exterior diameter of 33 mm.

Waterway part numbers
Complete assembly (this product): 210-5830
You might also notice the part number 211-5830 on the part that goes under the shell. This part is not sold separately from the male-threaded fitting that holds it to the shell.
