Waterway Poly Storm Gunite straight body assembly

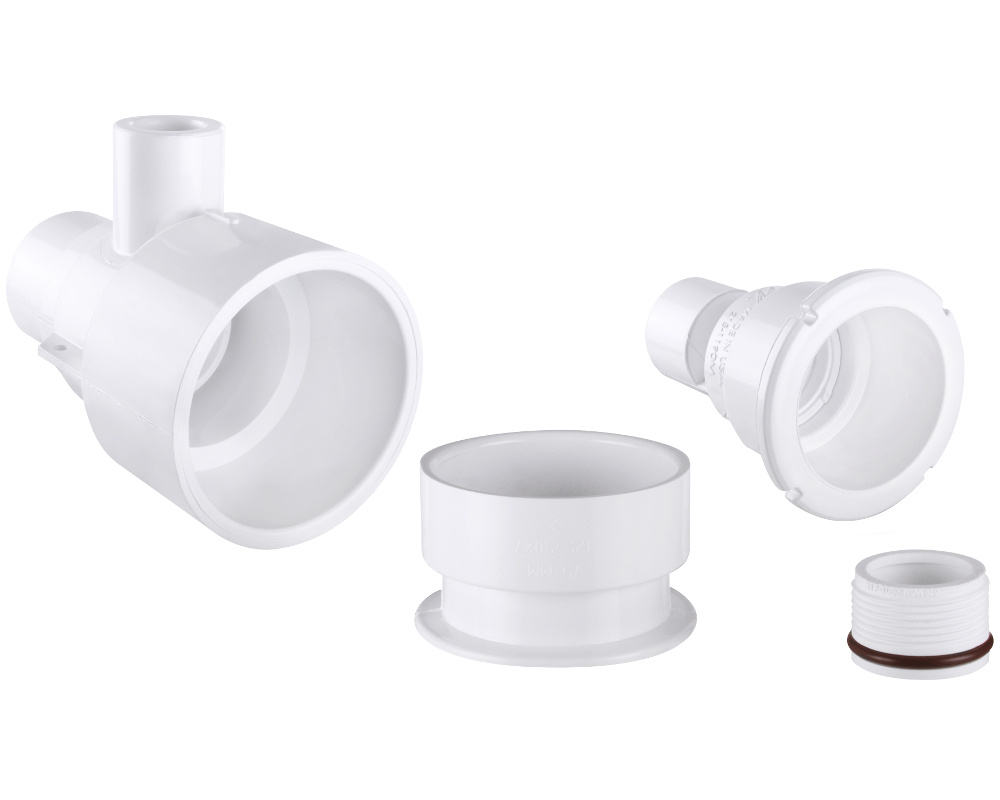

This Waterway Poly Storm Gunite assembly, specially designed for concrete spas, includes a straight body, a wall fitting, a threaded retainer ring and a jet niche adapter.

You will also need lengths of 2.5" and 1" pipes to complete your installation.

All Poly Storm thread-in jets are compatible with this kit. You just have to screw them into the wall fitting.

For more information on designing a concrete spa, you can consult some diagrams of typical installations.

Water and air pipe connections
Water : two connections are possible, depending on your plumbing :

• Internal diameter : 33 mm, to connect a 1" pipe
• External diameter : 48 mm, to connect a 1.5" pipe using a connector

Air : two connections are possible, depending on your plumbing.

• Internal diameter : 21 mm, to connect a 1/2" pipe
• External diameter : 33 mm, to connect a 1" pipe using a connector

Installation
A 2.5" pipe must connect the straight body to the jet niche adapter and the wall fitting.
A 1" pipe connects the threaded retainer ring screwed to the bottom of the straight body to the wall fitting water inlet.
