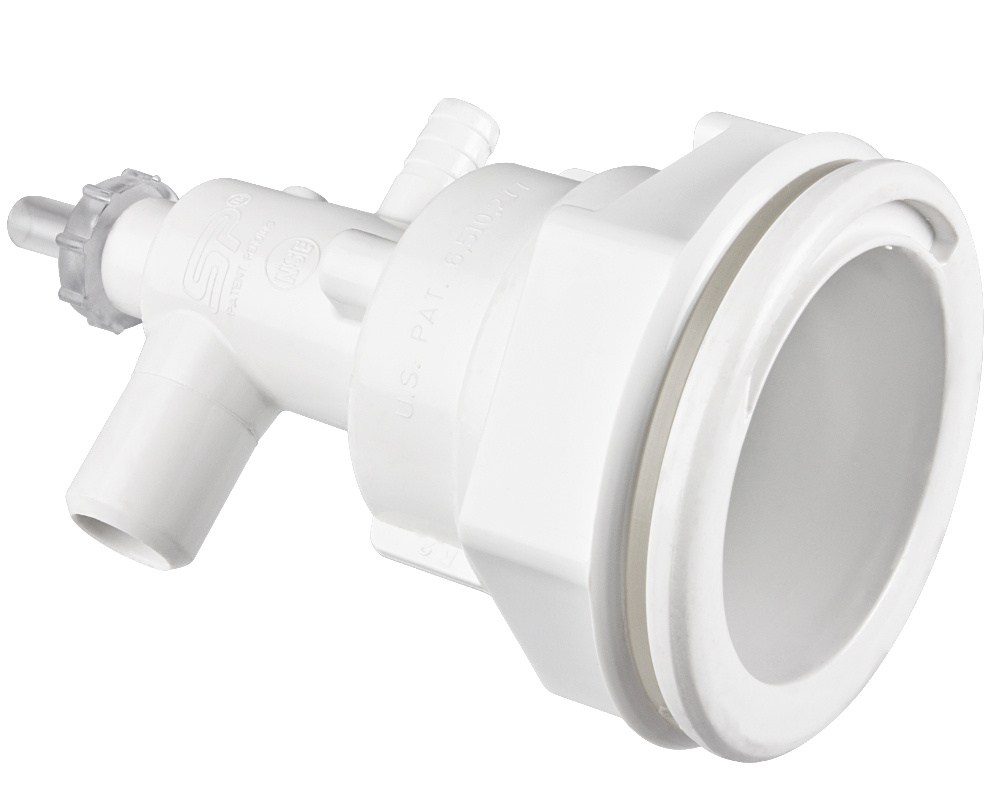

Waterway Poly Storm snap-in socket

All Waterway Poly Storm snap-in jets fit into this socket. It does not work with the newer thread-in jets, for which a different socket is available.

The jet socket is the fitting attached to the spa (inside and outside of the spa wall), which holds the jet in place. The fixing nut and the gasket are included. The flow of water through the socket sucks in air by the Venturi effect, thereby adding bubbles to your spa jet.

A small transparent plastic cap on the back of the socket allows you to attach a LED if you have clear Poly Storm jets.

In order to manage the water and the air flow through the jets, the air nozzle is connected to a normal manifold et then on to a valve. If you do not want to have bubbles through the water jets, just close the air nozzle with a 3/8" plug.

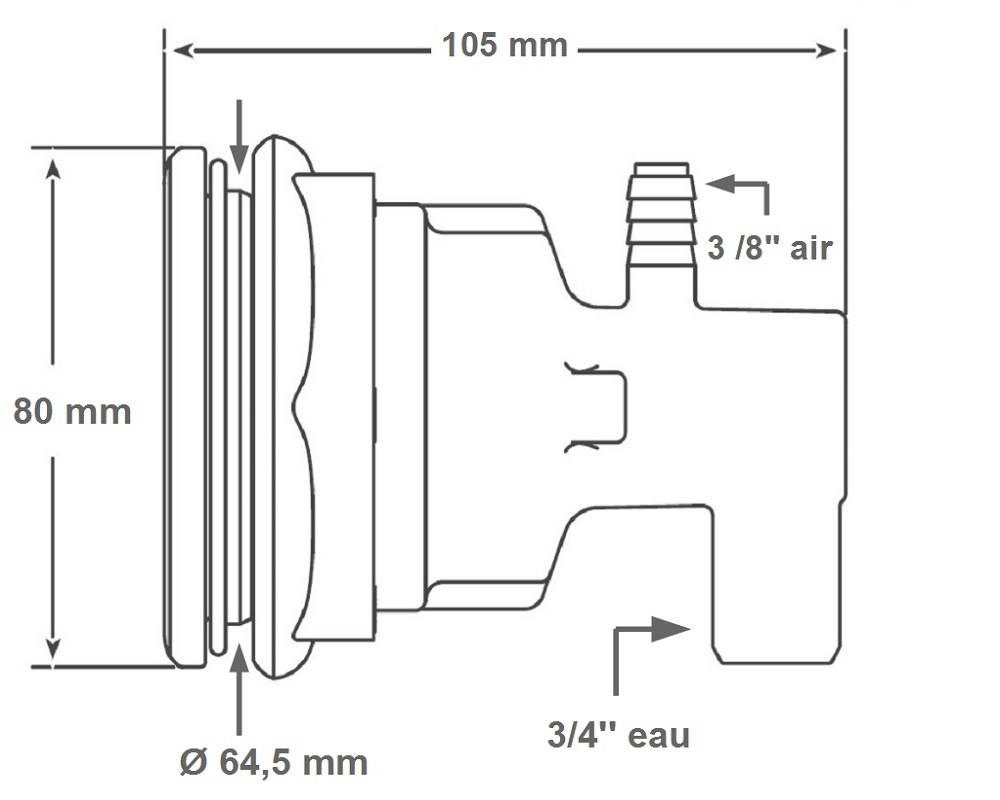

Dimensions:
Drill diameter: 66 mm
Inside diameter: 57 mm
Outside diameter: 80 mm
Length: 105 mm

Plumbing connections
Water: 3/4-inch pipe
Air: 3/8-inch pipe

Part numbers
Complete jet socket with nut and gasket: 212-0430
Jet socket only: 211-4030 or 211-4050
Nut only: 718-4100
