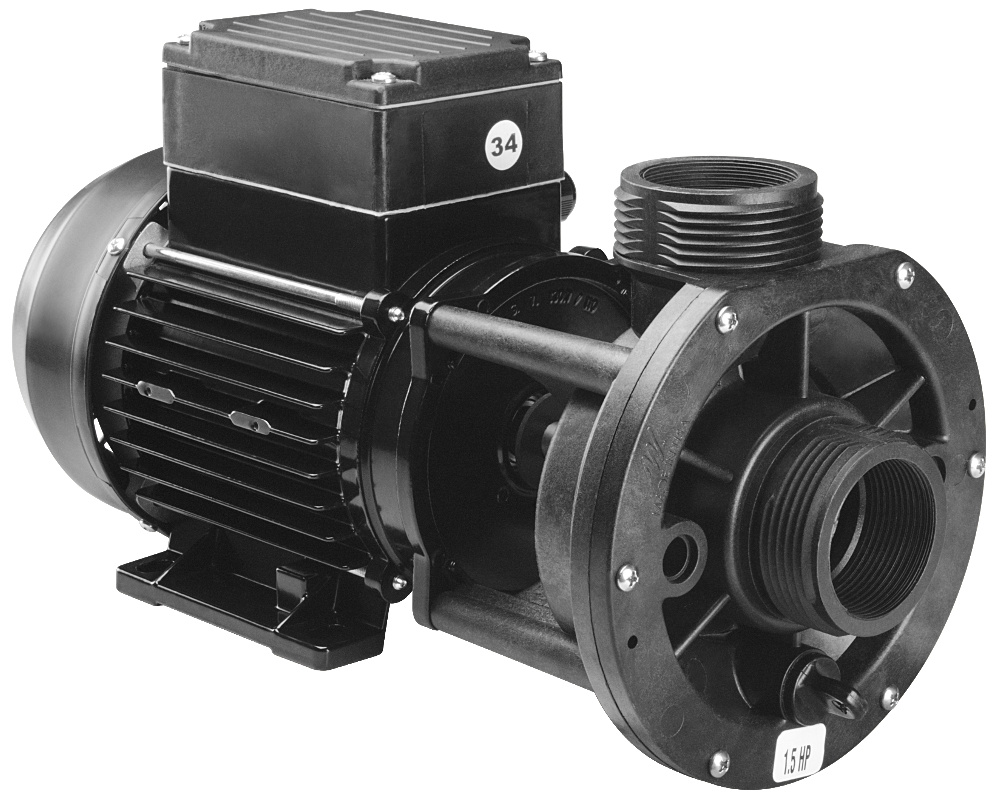

Waterway E-Series single-speed pump Type 71/2

The Waterway E-series pump is used by several major spa brands. This very compact and lightweight (7.7 kg) single-speed pump is used for massage jets. The brand uses an EMG 71/2 Type motor, made in Italy, and offers good resistance to water infiltration. This pump is supplied with a 1.5HP turbine.

We also offer a version of this pump with a Type 80/2 motor as well as the two-speed model.

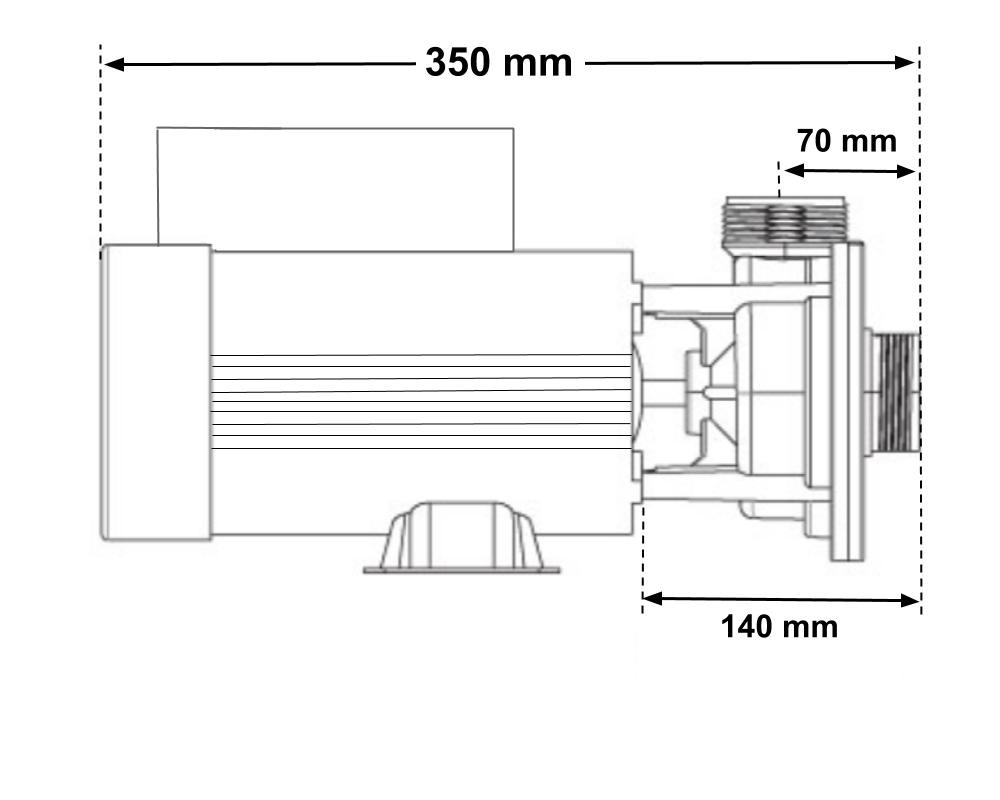

Dimensions
Length: 350 mm
Width: 170 mm
Height: 190 mm

Connections
Discharge: male threaded fitting with an external diameter of 62 mm, for a connection with a 62 mm ring 1.5-inch outlet.
Suction: male threaded fitting with an external diameter of 62 mm, for a connection with a 62 mm ring 1.5-inch outlet or 50 mm outlet, or a 1.5-inch threaded 3-pieces union.

This pump normally connects to 1.5 inch or 50 mm pipes.

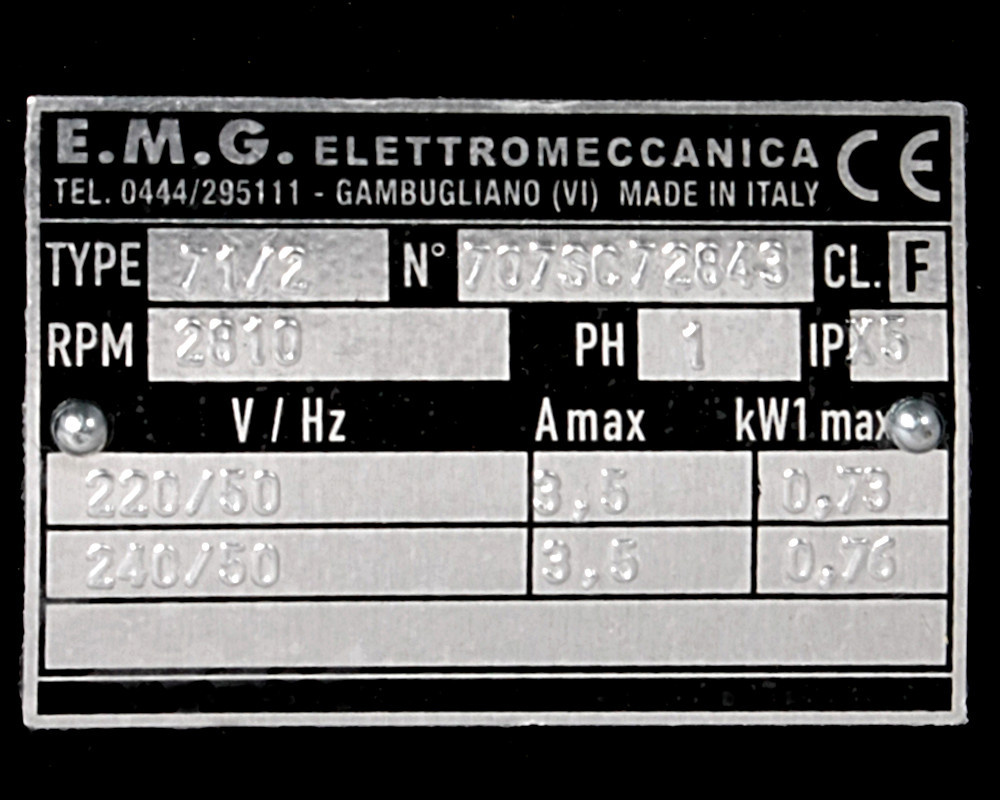

Technical specifications
Electrical supply: 220-240 V, 50 Hz
Power: 0.76 kW
Current: 3.5 A

Cables and plugs
The Waterway E-Series pump is delivered without plug and cable. If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.

You can also choose to have the pump pre-cabled by our team with an AMP plug or a mini J&J plug.

An in.link plug is also available, but we recommend that you keep your existing cable if it's in good condition. Your pump may indeed be defective for many reasons, but the power cable is rarely to blame.

Capacitor
In case you need to replace it, it is a 14µF

Guarantee
2-year Tubs Parts warranty

Part numbers
Waterway: CD071N15X

Plug types

AMP plug

J&J plug

in.link plug
