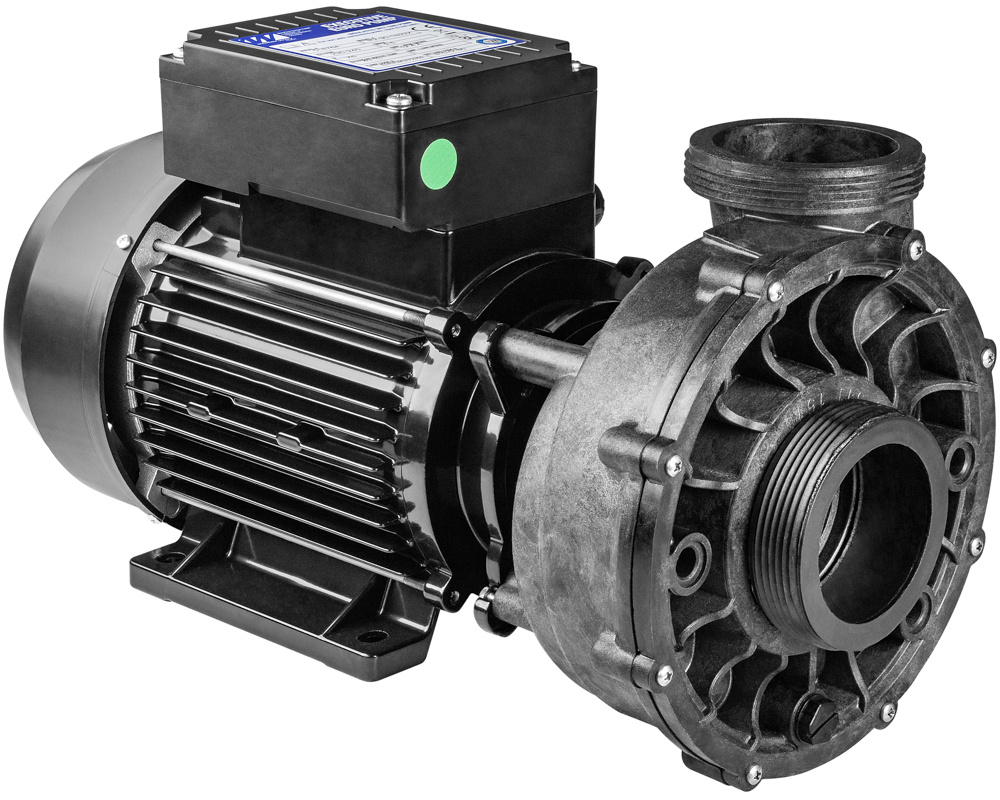

Waterway Viper 2-speed pump
The powerful Waterway Viper two-speed pump is designed primarily for swim spas. It is used by several hot tub manufacturers.
The Viper uses and Italian-made EMG water-resistant motor and a high-performance wet end, complete with a 5 HP impeller.

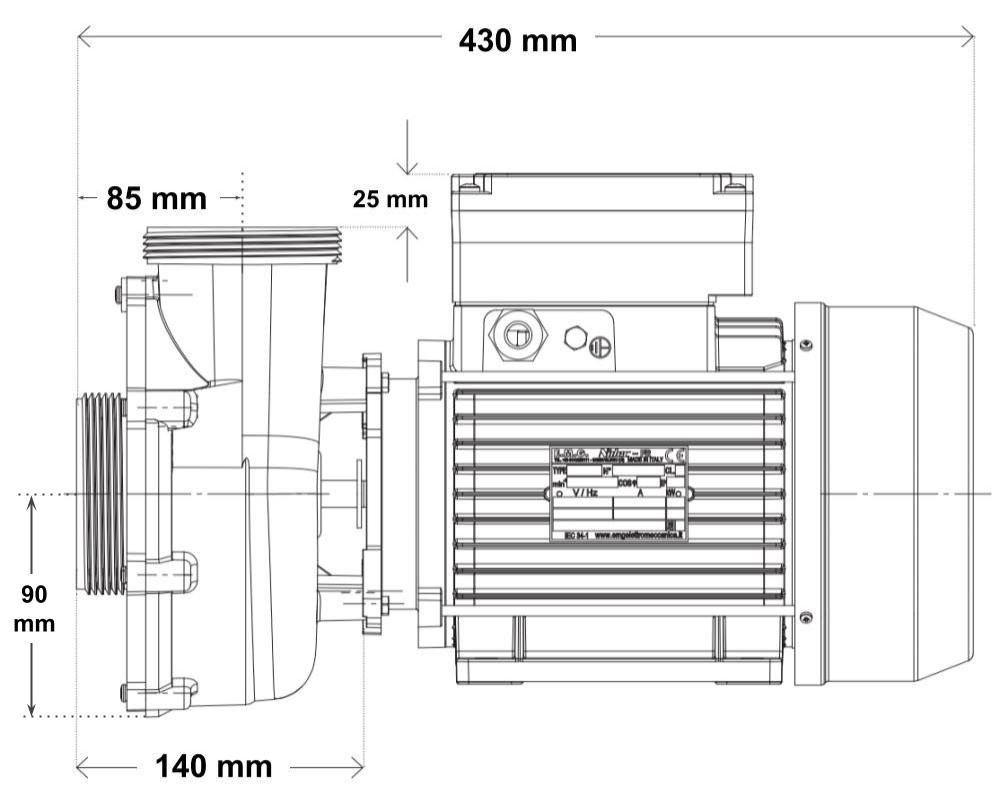

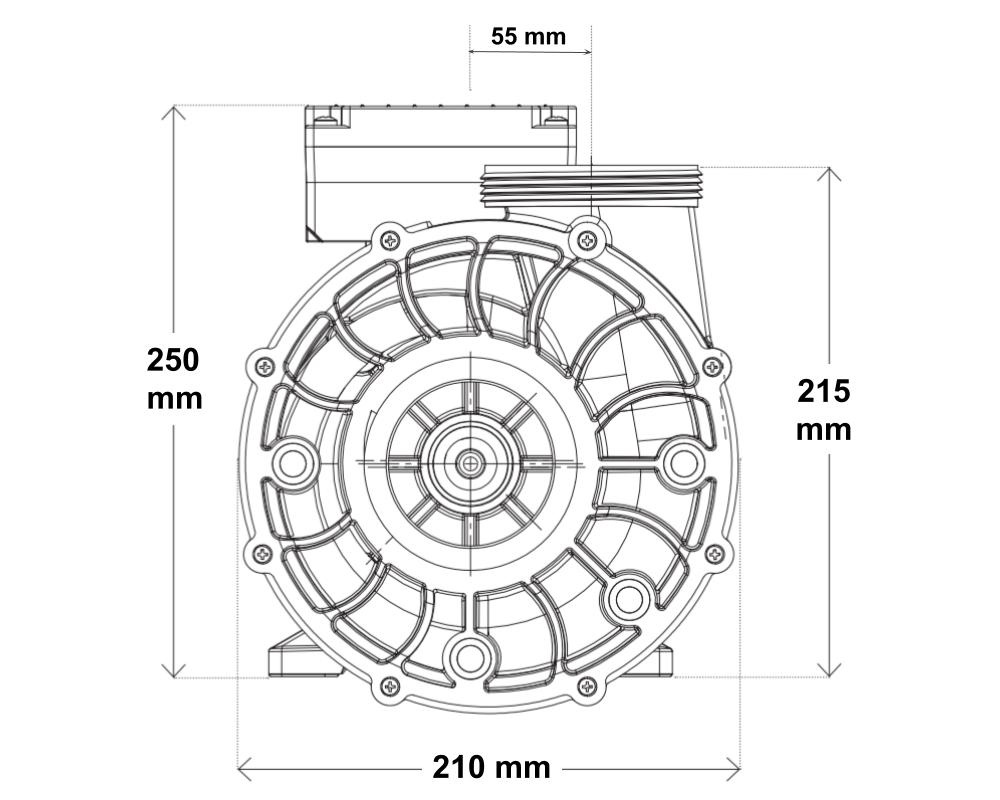

Dimensions
Length: 430 mm
Width: 210 mm
Height: 250 mm
Technical specifications
Power high speed: 2,71 kW
Power low speed: 0.55 kW
Current high speed: 12,5 A
Current low speed: 2,5 A
The new Viper models are more powerful, and perfectly replace the old models with lower power.
Plumbing Connections
Both the intake and outflow are male threaded with a 94 mm outside diameter. This pump is normally connected to 2-inch pipes. We also offer unions for 2.5-inch pipes.
Cable and plug
The Waterway Viper pump is delivered without plug and cable. If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.
You can also choose to have the pump pre-cabled by our team with an AMP plug, a mini J&J plug or an in.link plug (100 cm long).
Similar pump
The Aqua-Flo Flo-Master XP3 pump has the same motor power and thread size as the Viper, and roughly similar dimensions. If you want to replace your pump with another model, check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.
Warranty
2-year Tubs Parts warranty
Waterway part numbers
Assembly: 372-2022
Assembly: PV-30-2N22X

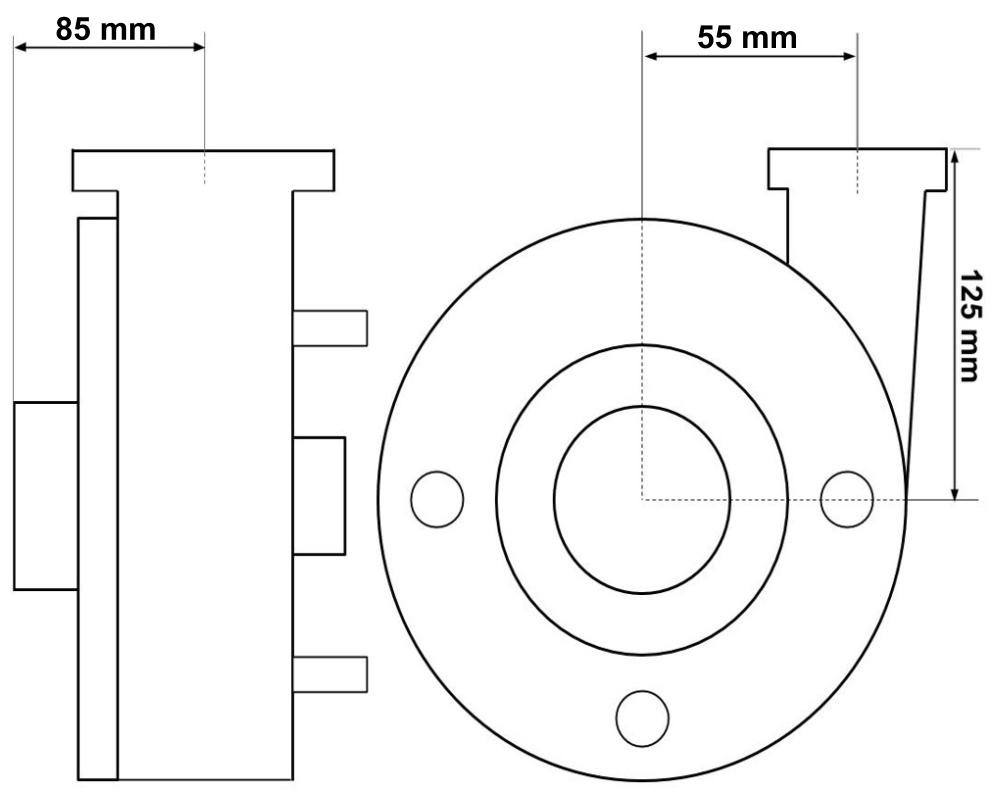

Wet end with a 5HP impeller: 310-0180
Wet end orientation
Standard exit
Exit to left
Exit to right
Plug types
AMP plug
J&J plug
in.link plug
