Waterway Wave motorized diverter valve

Only 4 in stock
390,00€
incl. 20% VAT
Quantity:

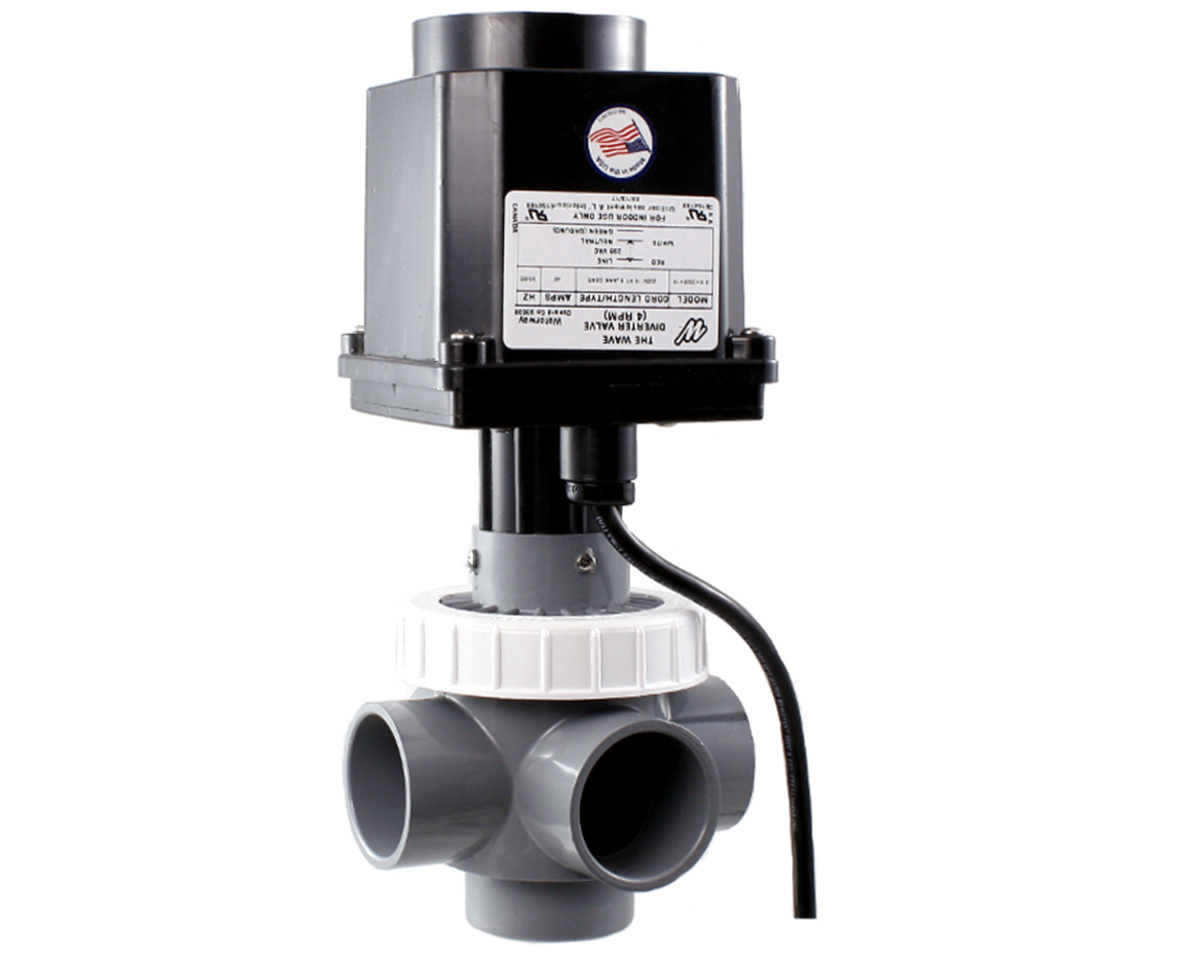

Waterway Wave motorized diverter valve - Click to enlarge

The Waterway Wave is a 5-port (1 entry, 4 exits) motorised diverter valve that is typically found in massage sequencer systems. The motor turns clockwise, at 4 rpm.

This is the complete valve with its motor, and the adapter that connects the two elements together.

The valve part and the motor are not available separately.

Pipe connections
Inside diameter inlet : 48 mm, for 1.5-inch pipe
Outside diameter inlet : 60 mm, for 2-inch pipe by adding a 2-inch female fitting
Inside diameter outlets : 48 mm, for 1.5-inch pipes

Dimensions
Overall height: 315 mm (valve + motor)
Width of the valve cross: 135 mm

Part numbers
Waterway : 610-2220-10
