Wet end seal PS-3865R for salt water
This wet end seal is intended for spas that use a salt-water chlorination system.

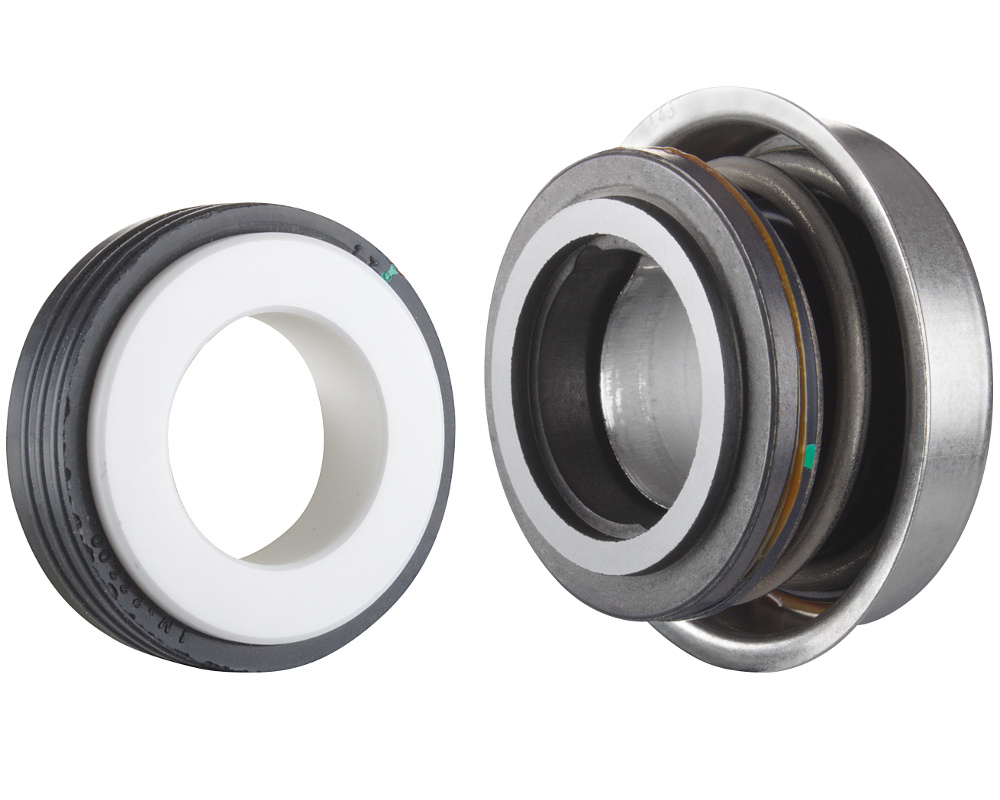

The wet end seal ensures that the water doesn't leak out of the pump wet end, along the motor shaft. It comes in two parts: one mounts on the wet end and the other slots in behind the impeller.
Waterway recommends remplacing the slinger at the same time as the wet end seal.
For a better seal at the steel collar, we recommend the addition of a silicone gasket or an O-ring.
Some wet end pumps are supplied with wet end seals that have an additional o-ring seal. In the case of a wet end seal replacement (delivered without o-ring), we advise you to add silicone to the bottom of the wet end pump to to ensure it is sealed correctly.

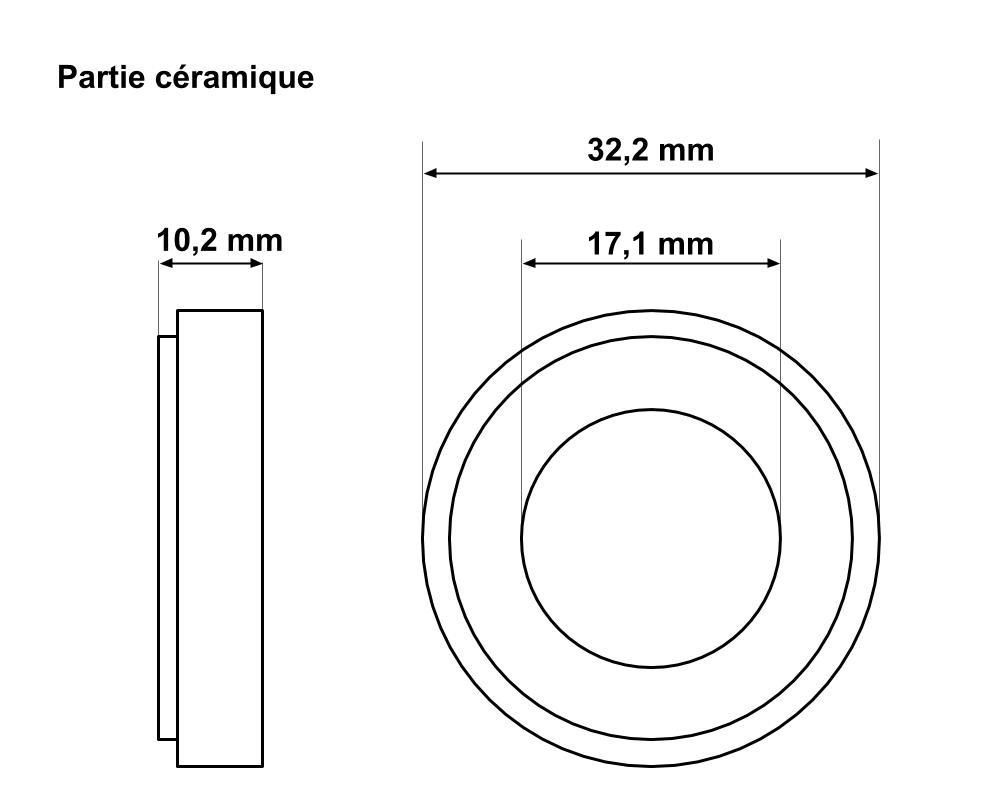

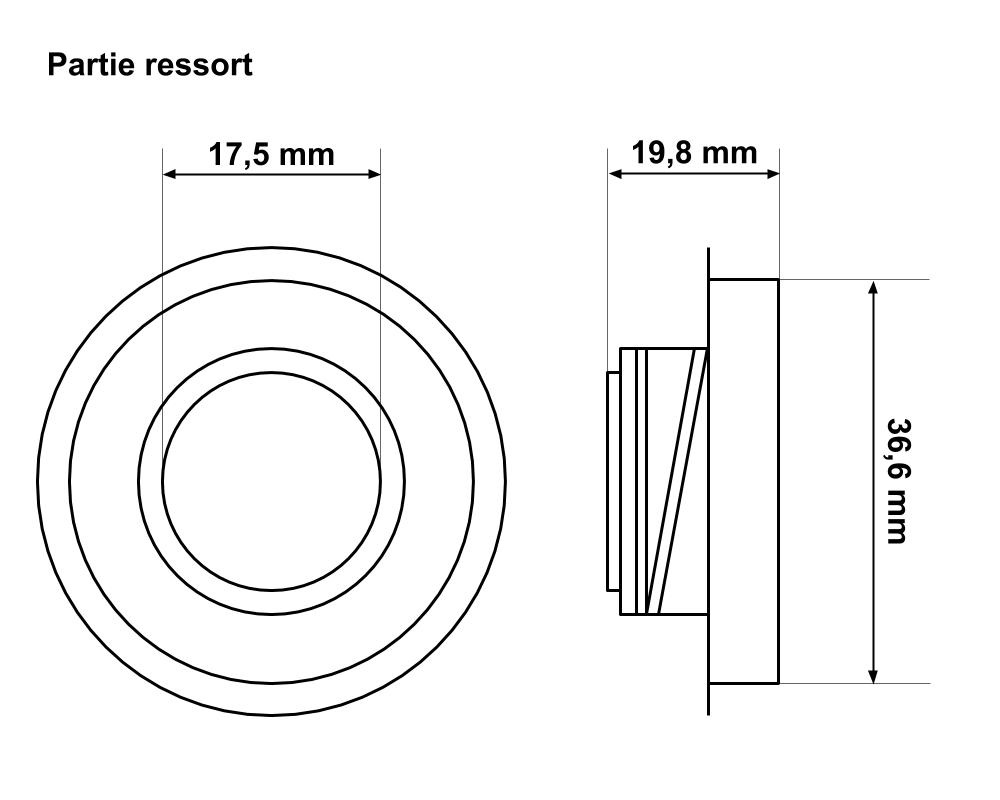

Dimensions (mm)
Ceramic ring | Spring | |
Ø Exterior | 32.2 | 36.6 |
Ø Interior | 17.1 | 17.5 |
Thickness | 10.2 | 19.8 |
Compatibility
- Waterway Executive single-speed and two-speed
- Waterway Hi-Flo single-speed and two-speed
- Waterway Iron Might (Pre-2015)
- ITT Magnaflow 440
Part numbers
US Seal : PS-3865R
Waterway: 319-3100B
Dimension One: 01512-101
Balboa HydroAir: 6001575
Pentair: 071734SP
Gecko: 9250050, 9250040 et 92509040
Sta-Rite: U109-136SS
Acura: 1090-A and 1092-AV
