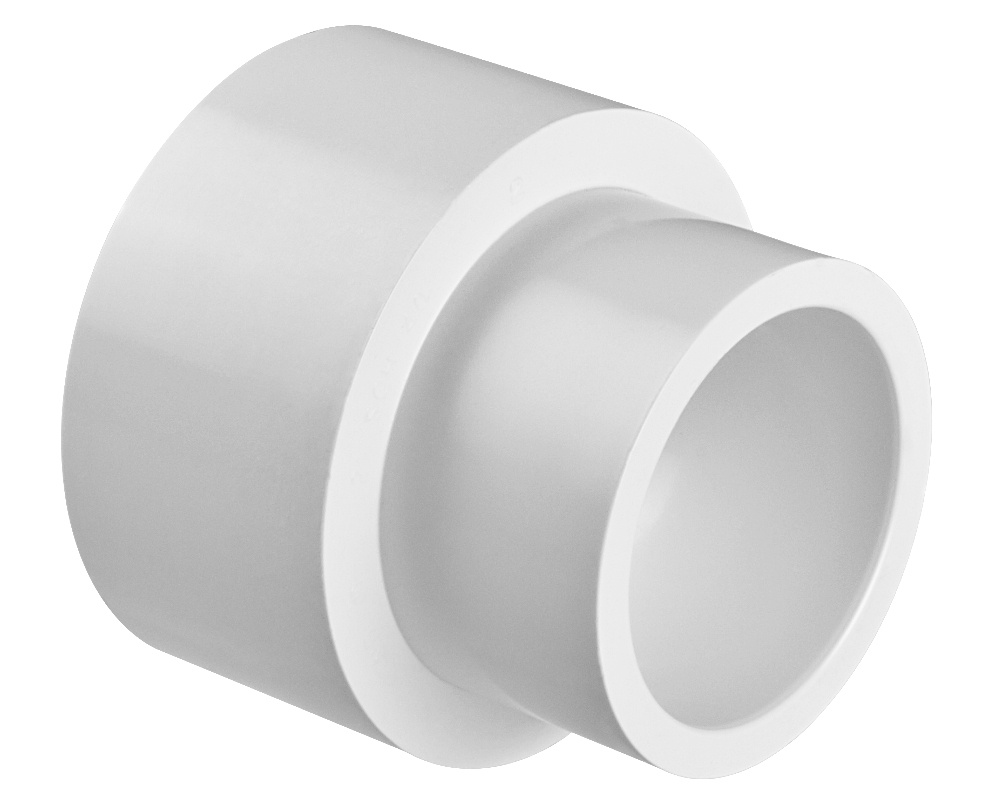

2" XF to 2" M or 1.5" F extender fitting

This Magic Plastics MagicMend extender fitting is designed to go over fittings where there is not a sufficient amount of pipe left to connect to.

Remove one fitting; connect the extender fitting to the existing fitting and continue with PVC pipe that will solvent weld to the opposite end of the MagicMend. There is no defined standard for the outside diameter of a pipe fitting (only for the pipes themselves). This part works well with all the 2" Magic Plastics fittings, but won't necessarily work with other brands, such as Waterway, for example.

Dimensions
Inside diameter (large side): 69 mm, for a female connection on the outside of a female 2" fitting)
Inside diameter (small side): 48 mm, for 1.5-inch pipe
Outside diameter (small side): 60 mm, for 2-inch pipe with a 2-inch female fitting

Part numbers
Magic Plastics: 0303-20
