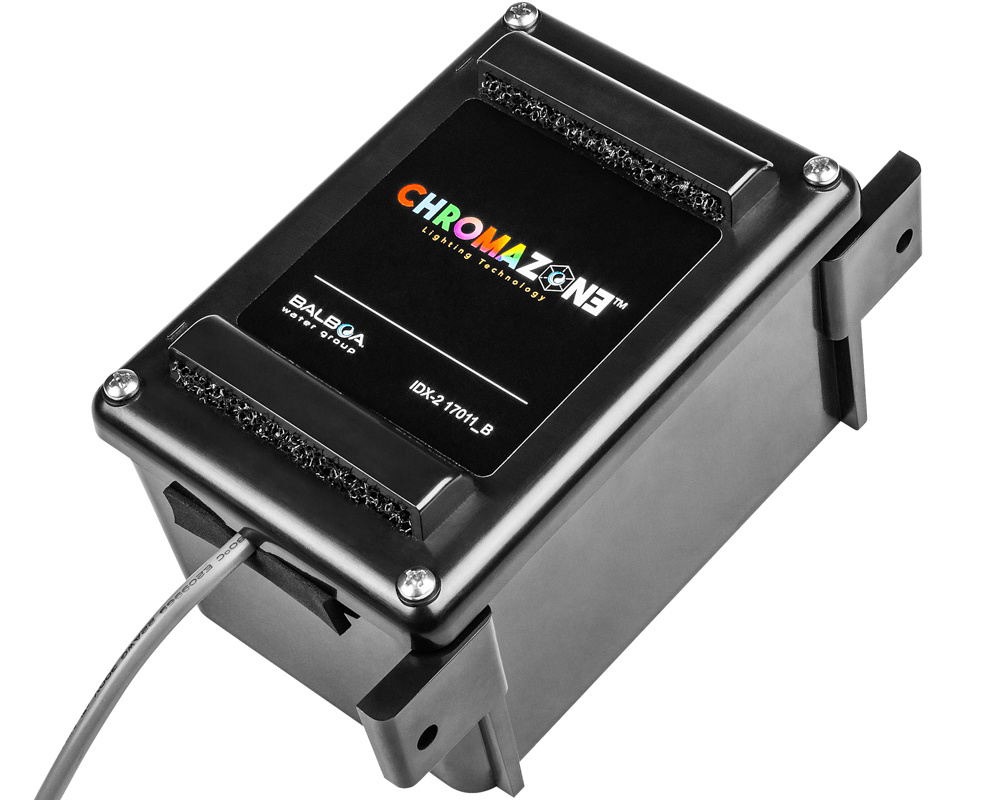

Balboa ChromaZon3 light Controller

The Balboa ChromaZon3 light controller provides fully customizable spa lighting with stunning color choices. There are three lighting zones which give full lighting control and flexibility.

In each zone the following options are possible :

• Display one of the three light patterns available. Speed and brightness are customizable for each light pattern
• Display one of eight factory default colors or choose a color among a full spectrum
• Display the water temperature or the spa status as colors

Dimensions
Length : 155 mm (with the 2 mounting brackets)
Height : 90 mm
Depth: 75 mm

Features
Input voltage: 5 or 12 V AC
Output voltage : 5 or 12 V DC

Compatible control systems
ChromaZon3 is compatible with the Balboa BP-systems with software version 43.0 or above.

Compatible keyboards
TP740
spaTouch2 with software version 2.19 or above
spaTouch3 with software version 1.01 or above. Please note that a few aspects of functionality documented in the user guide are not implemented until version 1.03 or later.

Compatible cables and lights
SloanLED cable with 2 LEDs
SloanLED cable with 4 LEDs
SloanLED light with 12 LEDs
SloanLED light with 21 LEDs

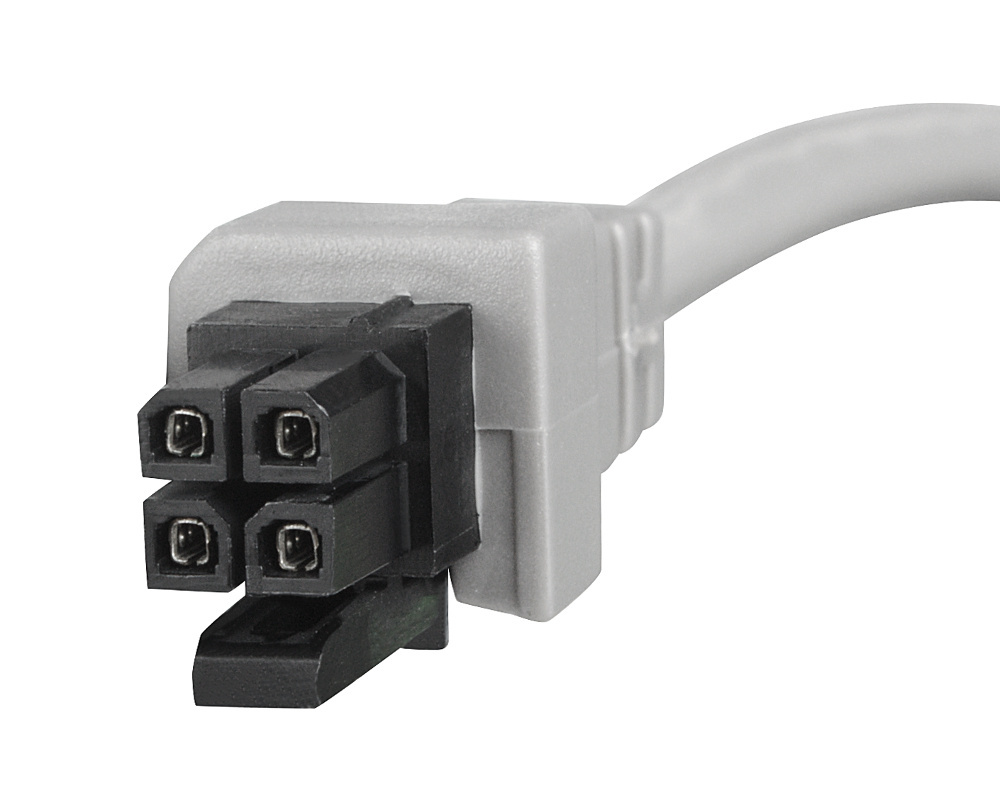

LiquaLED jumper cable

Warranty
2-year Tubs Parts warranty

Part numbers
Balboa: 59119
