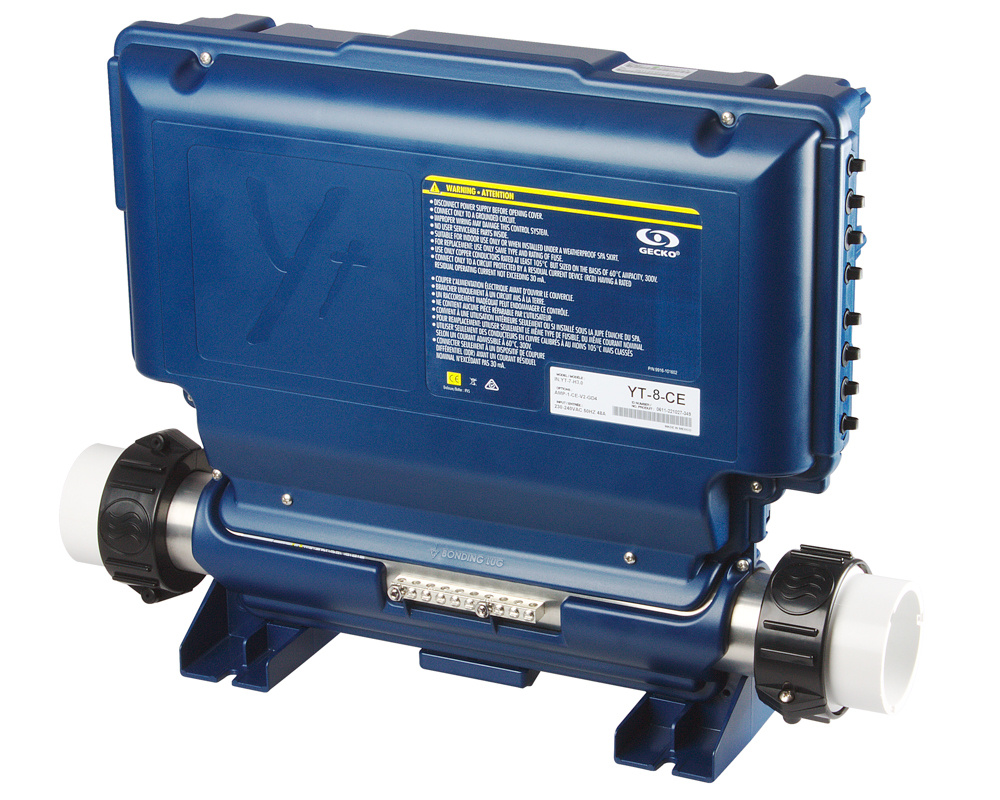

Gecko in.yt-8 control system

The in.yt-8 control system with integrated 3 kW heater is the most powerful version of Gecko's Y-series. With its RS-485 interface, it is compatible with the in.temp heat pump.

The in.yt-8 has 8 outputs (hence the number 8 in its name), and can therefore manage up to 8 pumps and/or blowers (bearing in mind that 2-speed pumps are classed as 2 connections). 29 different configurations are possible, ranging up to :

• 3 two-speed pumps, or 1 two-speed and 4 single-speed pumps, or 5 single-speed pumps
• a circulation pump
• an in.temp heat pump
• a blower
• an ozonator
• a lighting system
• an audio system

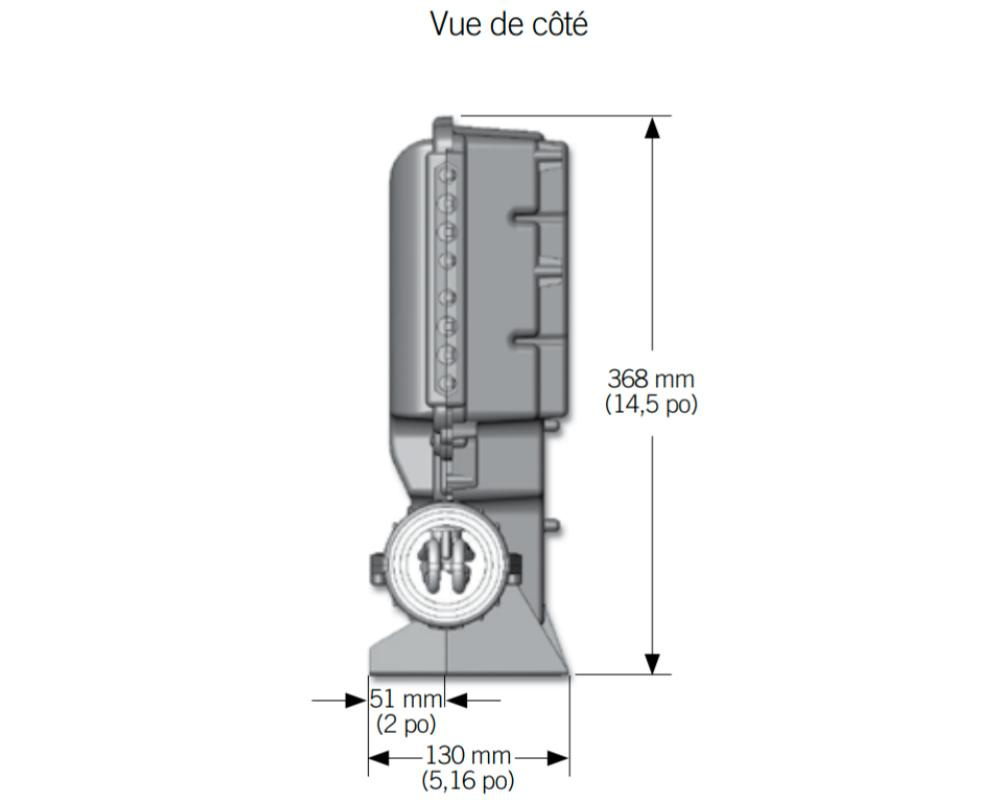

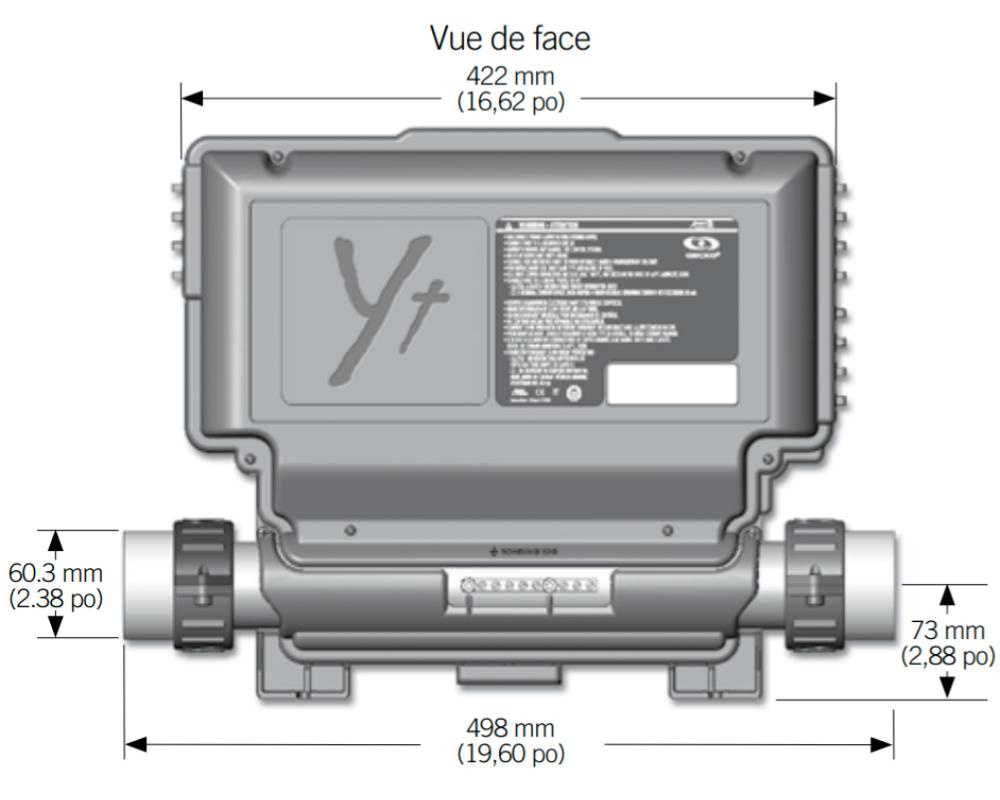

Dimensions
Box width: 422 mm
Maximum width with connections: 498 m
Height: 368 mm
Depth: 120 mm
Plumbing connections to heater: 2" (connections and o-rings included)

Technical specifications
Power supply: 230V 50Hz (1, 2 or 3 phase connections)
8 outputs at 230V AC on 4-pin AMP plugs
1 output in 12V AC for 3-pin light harness
3 outputs for in.link plugs: 1 main keypad connector and 2 communications link (in.stik, in.terface, in.touch2, in.clear, in.grid and in.stream2)

Compatible keyboards
Main: in.k200, in.k300, in.k336, in.k8, in.k35, in.k450, in.k500, in.k600 (the simplified interface only), in.k800, in.k1000, in.k1001

Auxiliary: in.k120

Warranty
2-year Tubs Parts warranty

Part numbers
Gecko: 0611-221104-691
