Waterway Mini Storm Gunite straight body assembly

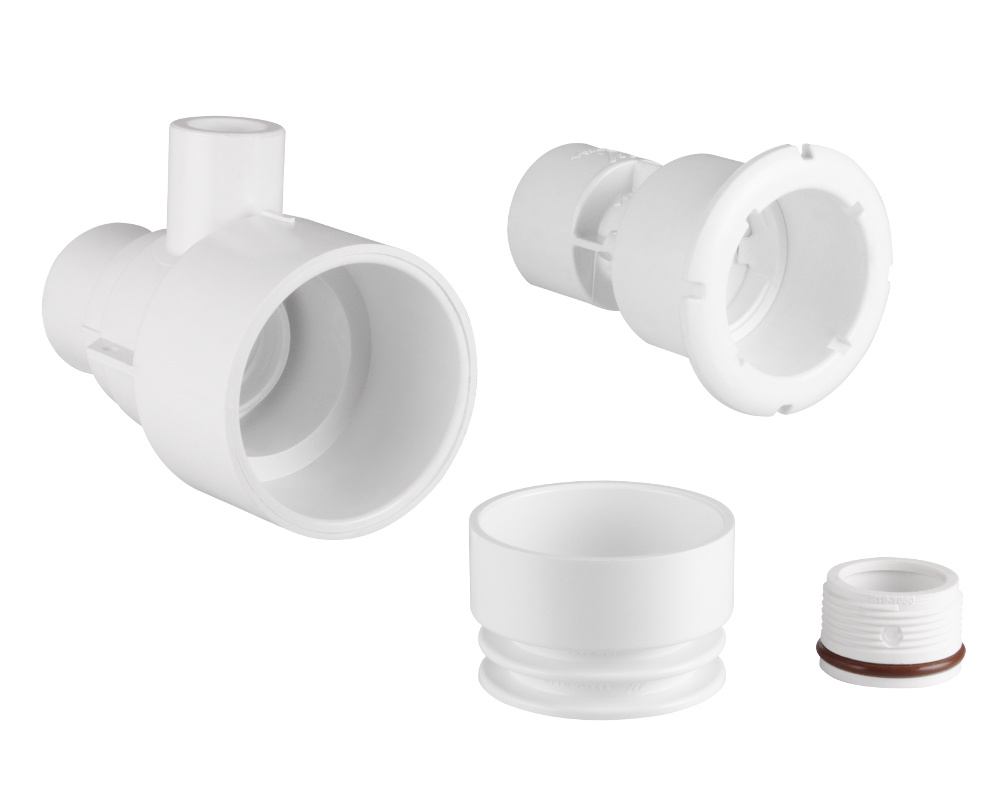

This Waterway Mini Storm Gunite complete straight body assembly, specially designed for concrete spas, includes a straight body, a wall fitting, a threaded retainer ring and a jet niche adapter.

Don't forget to add 2.5" and 1" pipes to your installation !

All in the Mini Storm thread-in jets are compatible with this kit by inserting them into the wall fitting.

Water and air pipe connections

Water : two connections are possible, depending on your plumbing.

• Internal diameter : 33 mm, to connect a 1" pipe
• External diameter : 48 mm, to connect a 1.5" pipe using a connector

• Internal diameter : 21 mm, to connect a 1/2" pipe
• External diameter : 33 mm, to connect a 1" pipe using a connector
