Waterway Poly Jet Gunite metric assembly

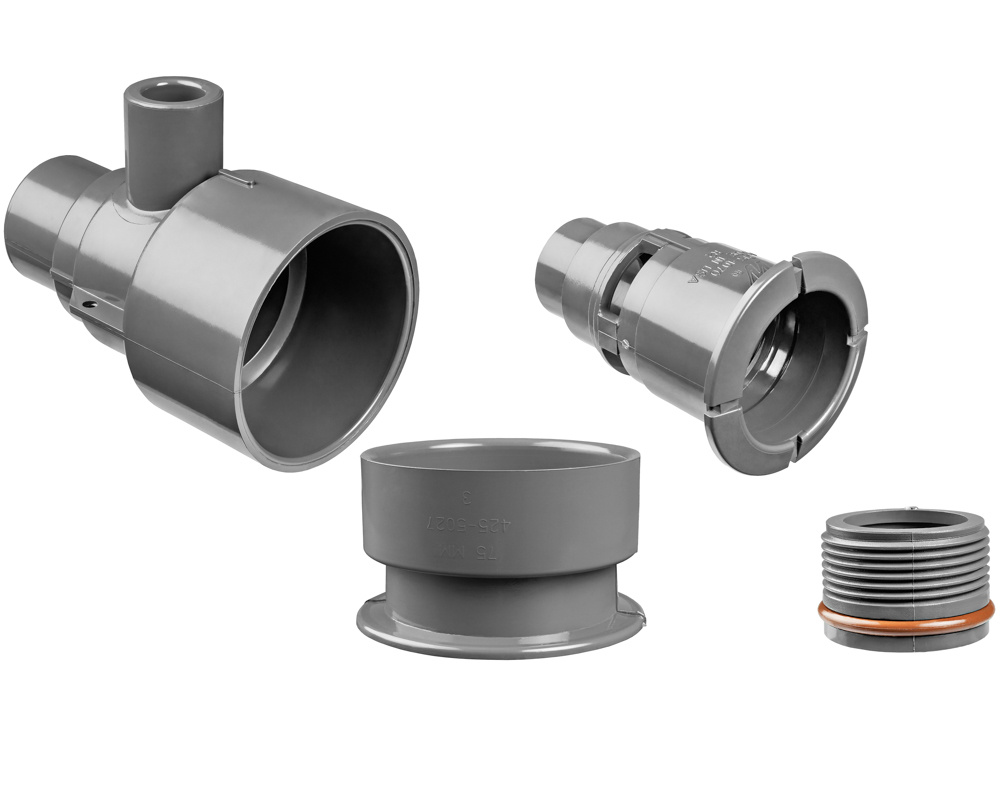

This Poly Jet Gunite metric kit from Waterway, specially designed for concrete spas, includes a straight body, a threaded retainer ring, a jet niche adapter and a wall fitting.

You will also need lengths of 75 mm (not provided) and 6346 32 mm] pipes to complete your installation.

All Poly Jet thread-in jets are compatible with this kit. You just have to screw them into the wall fitting.

For more information on designing a concrete spa, you can consult some diagrams of typical installations.

Water and air pipe connections
Water : Inside diameter of 32 mm, to connect a rigid or flexible 32 mm pipe
Air : Inside diameter of 20 mm, to connect a 20 mm pipe

Installation
A 75 mm must connect the straight body to the jet niche adapter and the wall fitting.
A 32 mm pipe connects the threaded retainer ring screwed to the bottom of the straight body to the wall fitting water inlet.
