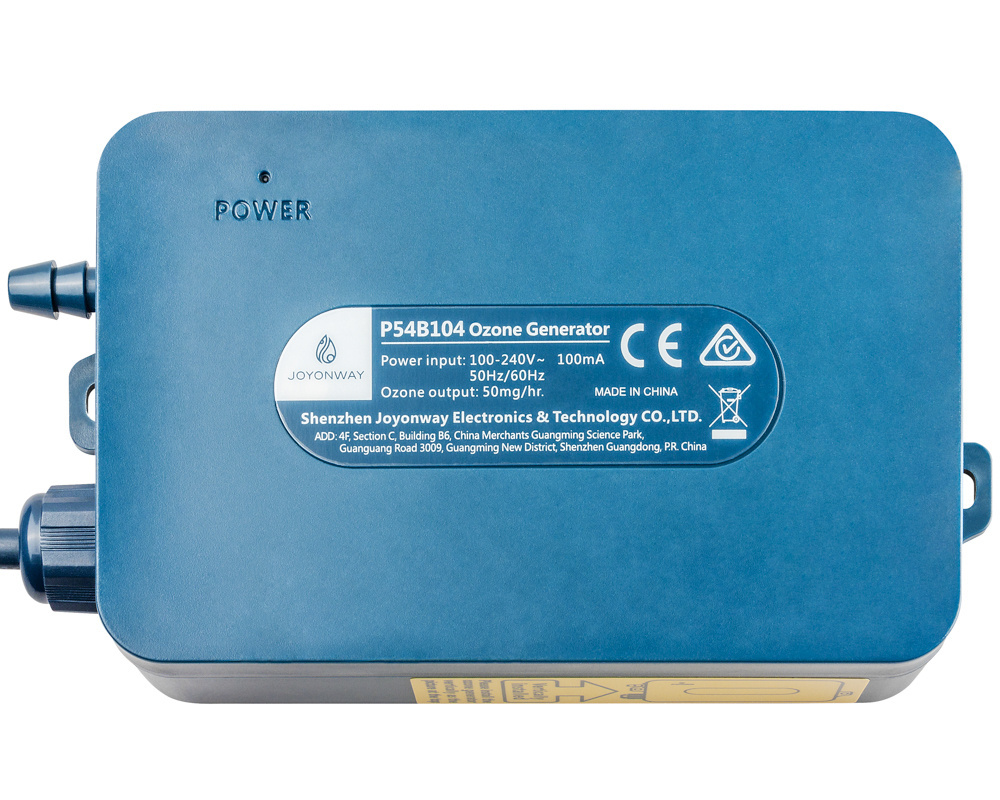

Wellis ozone generator

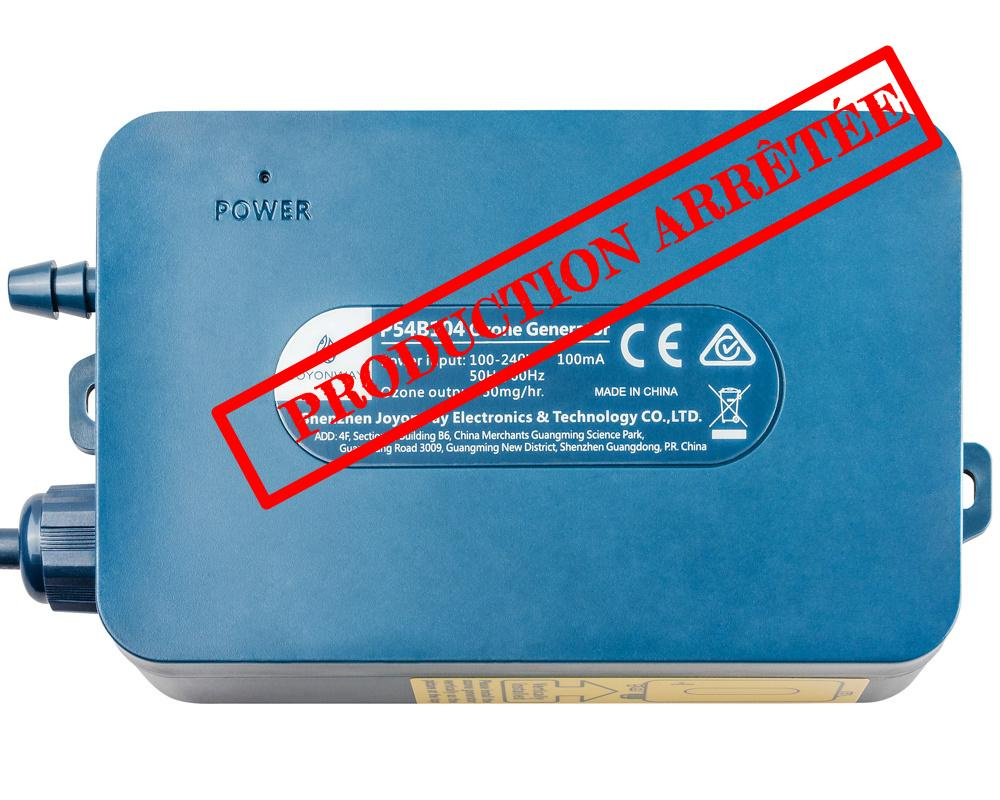

Due to new European regulations concerning ozone generators, the Wellis ozonator is no longer authorized for sale in the EU.

This ozonator manufactured by Joyonway and distributed by Wellis is designed and tested specially for spa and bath applications. It disinfects water by killing viruses and biological contaminants, and reduces the use of chemical levels which means reducing the discomfort of skin and eye irritations.

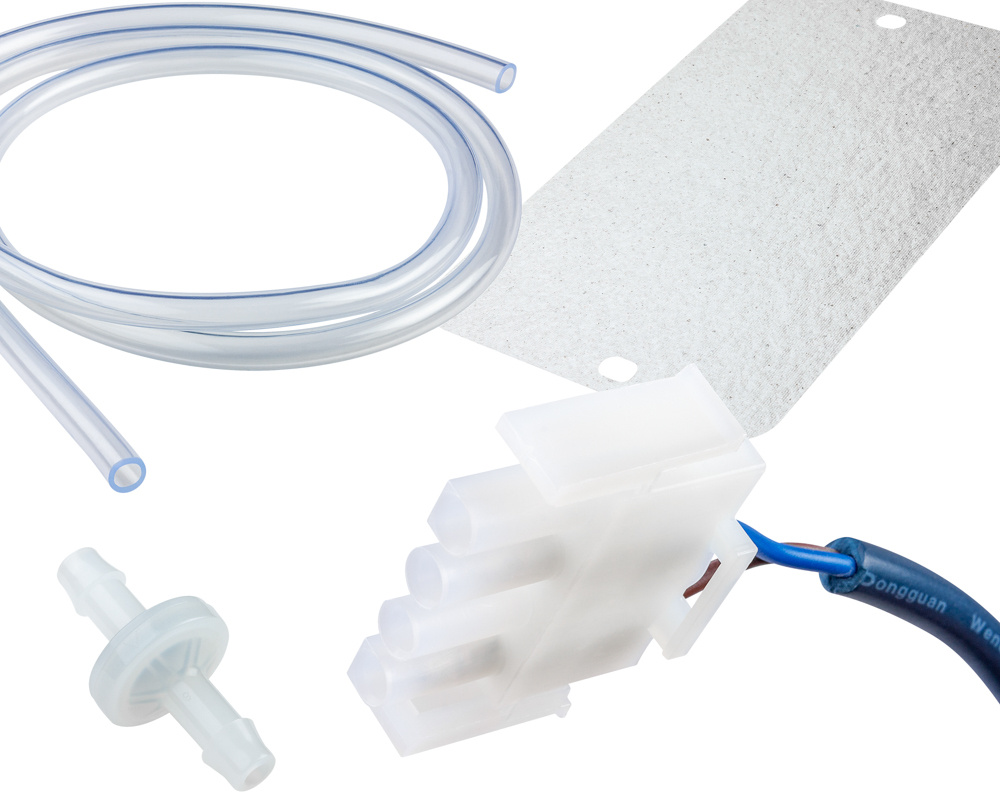

It comes with a hose (to connect the ozonator to the ozone injector) and a one-way valve. The ozone injector is not part of this kit because it is intended to replace an existing ozonator. You will then be able to use your old injector. If this is not the case, injectors are available on our website (do not hesitate to contact us for more advice). A LED indicates ozone production.

It also comes with a 150 cm cable and a 4-pin AMP connector, but adapters for mini J&J plugs are available on our website.

Replacing an ozonator is a very quick job if the hot tub is already equipped with an ozone injector. It is much, much more difficult if there was not an ozonator already installed, or if the ozonator was of a type that doesn't use a separate injector.

It is compatible with the Wellis OZMIX mixing chamber.

Technical specifications
Ozone production: 50 mg/hour
Dimensions: 110 x 70 x 30 mm (box only)
Current: 100 mA

Part numbers
Wellis: ACM0999
Joyonway : P54B104
